Wood Door Lock Hole Making Machine For Furniture Invisible Link

Wood Door Lock Hole Making Machine for furniture Invisible link

Machine Application :

Horizontal drilling hole CNC router is mainly used for wood panel hole drilling , This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets,wardrobe, custom furniture and support products. It is specialized in making nested based production of cabinets, closet and customized furniture.

Application Industry:

The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs

Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments

Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting engrave .

Technical Parameters:

1  X,Y,Z Working Area                         3350*1770*1400mm

2  Table Surface                                  Vacuum table

3  Frame                                              Heavy welded steel tube

4  Structure                                          Ball screw, square rail

5  Control System                                Motion control system( superior to PLC)

6. Laser Head                                       Banner (USA)

7  Servo system                                     double servo system

8  Max. Rapid Travel Rate                  15000mm/min

9  Max. Working Speed                       85000mm/min

10  Repositioning Accuracy                   ±0.02mm/300mm

11  Traveling Positioning Accuracy         ±0.02mm/300mm

12  Spindle Power                                2.2KW

13  Spindle Speed                                0-24000RPM/MIN

14  Working Voltage                             AC380V, 50/60Hz, 3ph

15  N.W.                                               1200KG

Perfect for the panel furniture making.

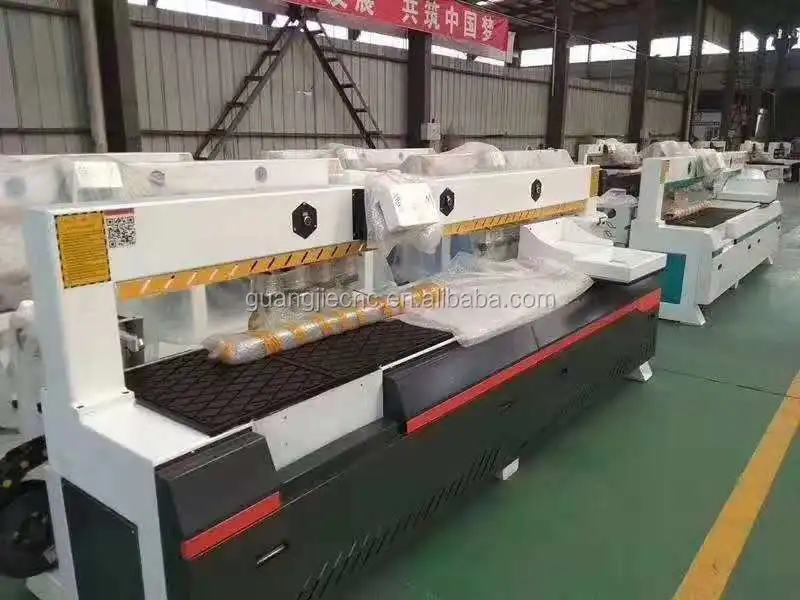

1.Laser Positioning Sidle Holes Drilling Machine is the research and development of a CNC Machine for furniture side holes drilling.

2.The machine is fool-style operation, without any software interfacing, three small plates can be processed at a time for realizing three tools procession.

3.Higher working speeding, higher working efficient.

4.One set sidle drilling machine can work well with two or three sets CNC Router.It is easily to solve the horizontal drilling problem.

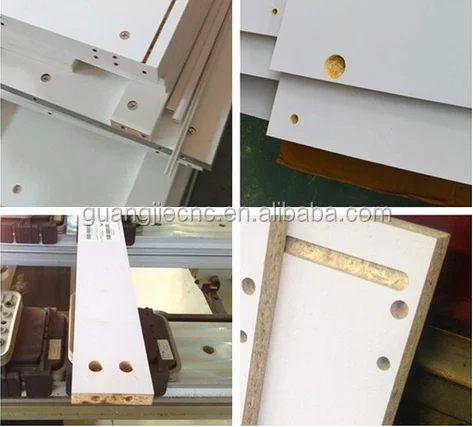

5.Meanwhile, it can achieve short switch plate, dowel holes, single switch holes,blind holes and meeting a wide range of technology needs.

FAQ:

Q1.How to get the most suitable woodworking machine and best price?

Please tell us the material you want to working on ?

How to working on it? Engraving? Cutting? Or other?

What’s the MAX. size of these material?

Q2.If we want to book the size and the other accessory of the machine,can you give us the recommend?

Of course sure,but you should tell us what work do you want to go on,

so that we will give you the most suitable accessory to meet your need.

Q3.How about your after-sales service?

We offer you 24 hours service .You can contact us via Skype, WeChat,Mobile and Email.

Q4.How about your guarantee period?

One year .If you have any questions during this time,we will solve it for free.

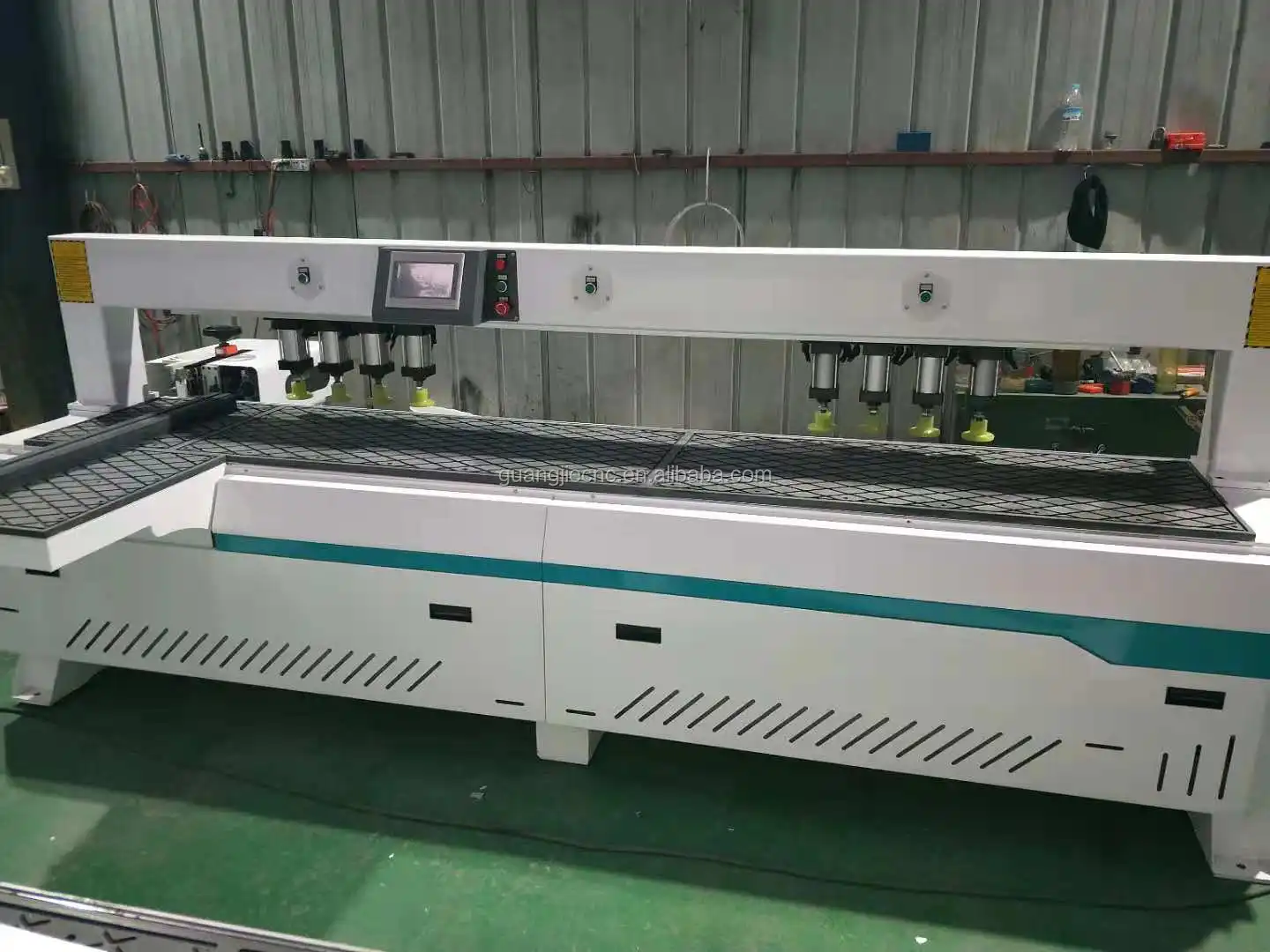

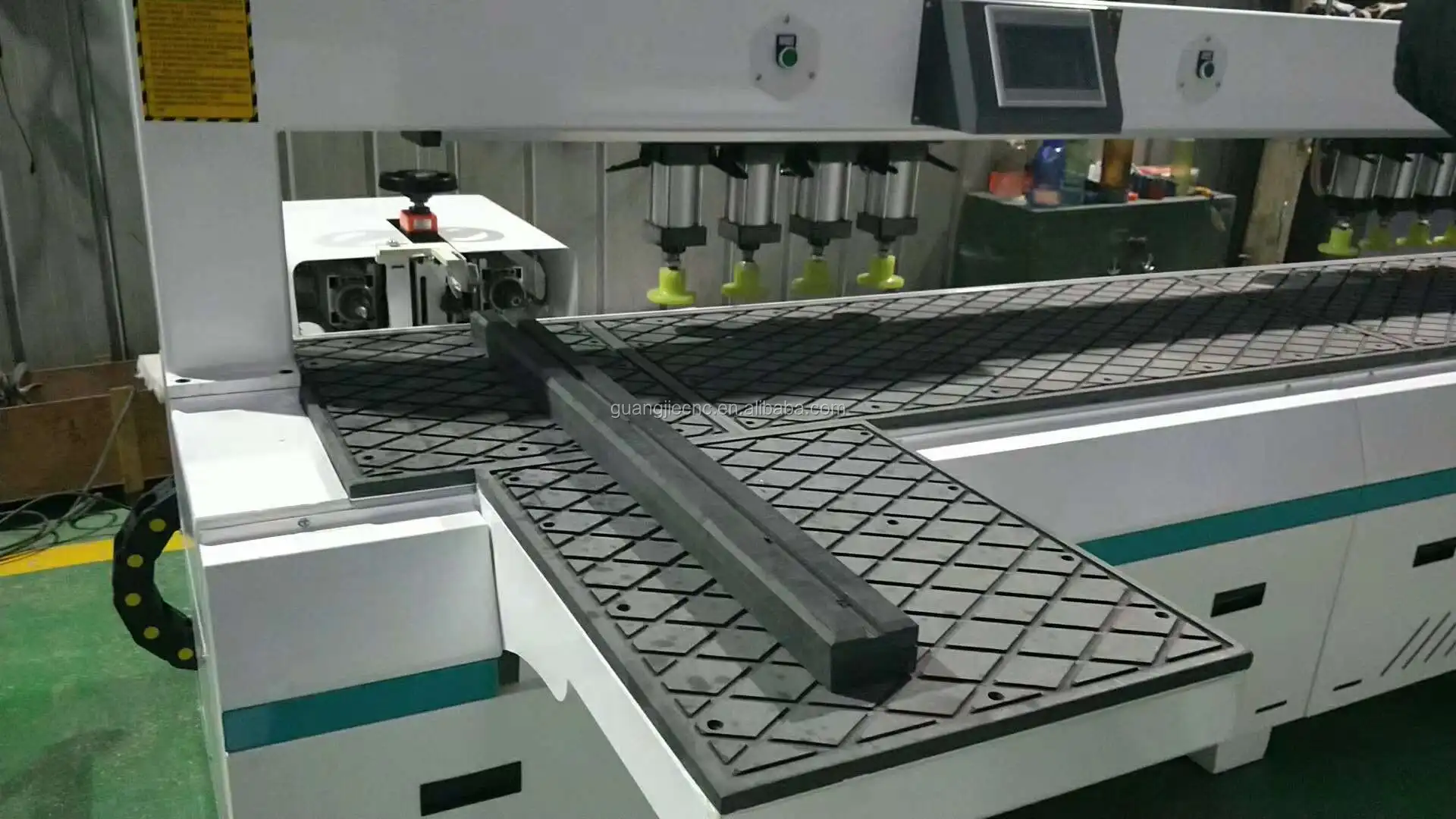

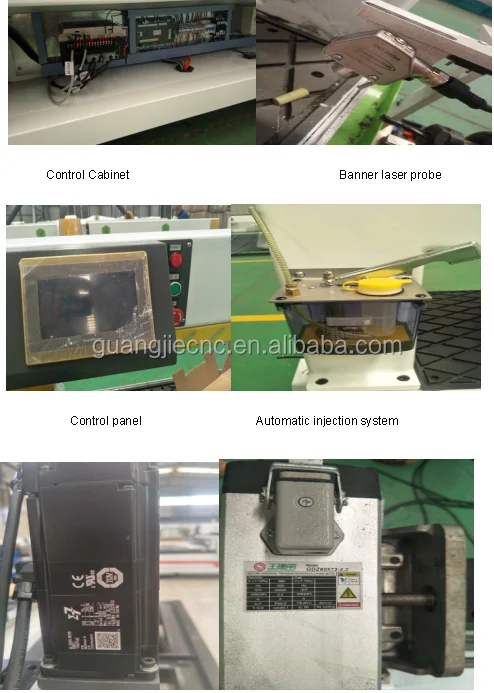

Machine Details:

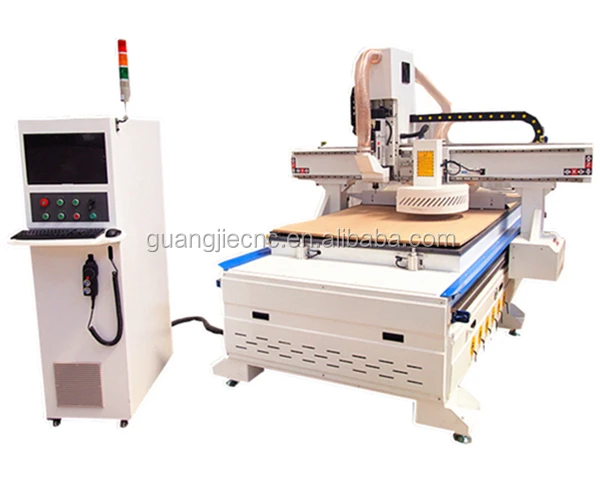

Related Machine:
