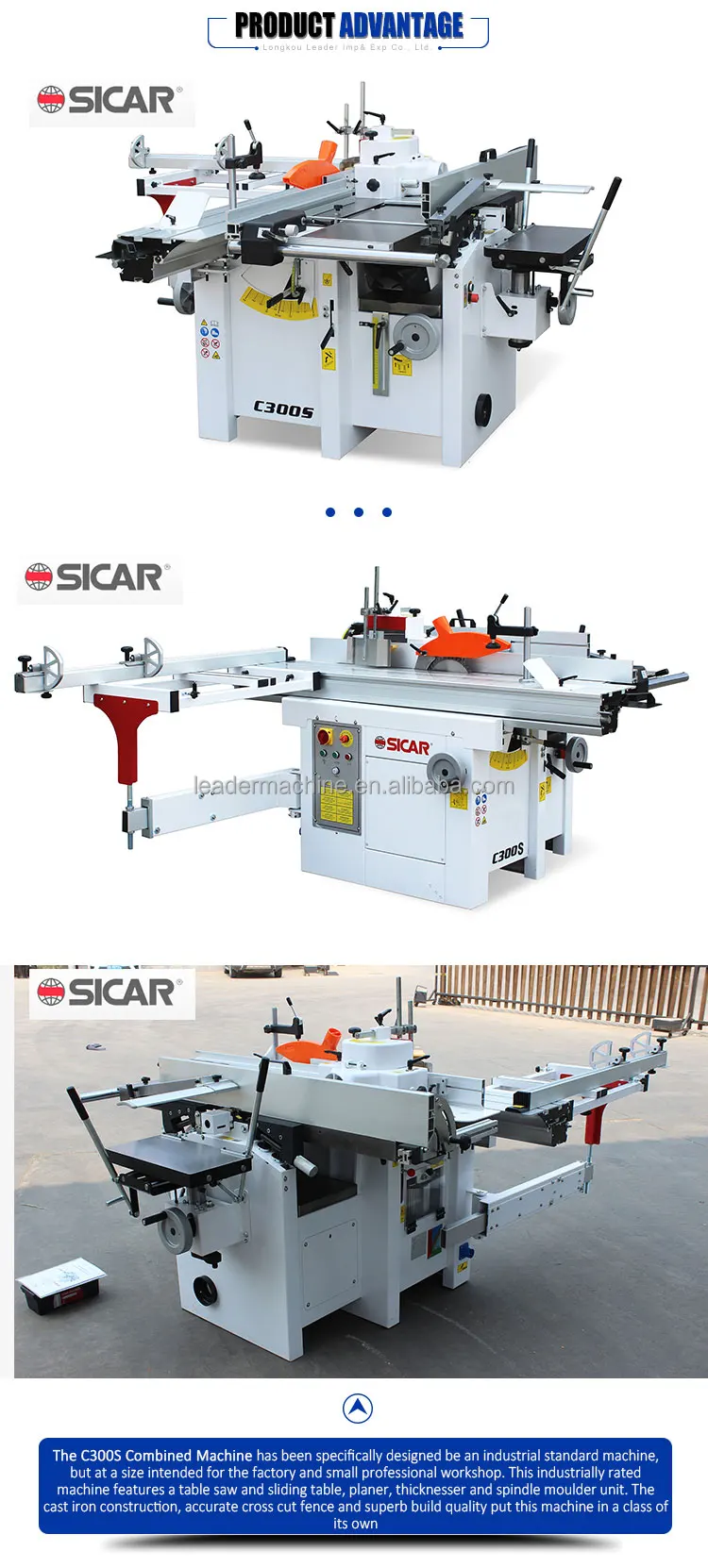

Sicar C300S multipurpose woodworking machinery combined woodworking machine
Dear friend,please contact us when you want to get it!

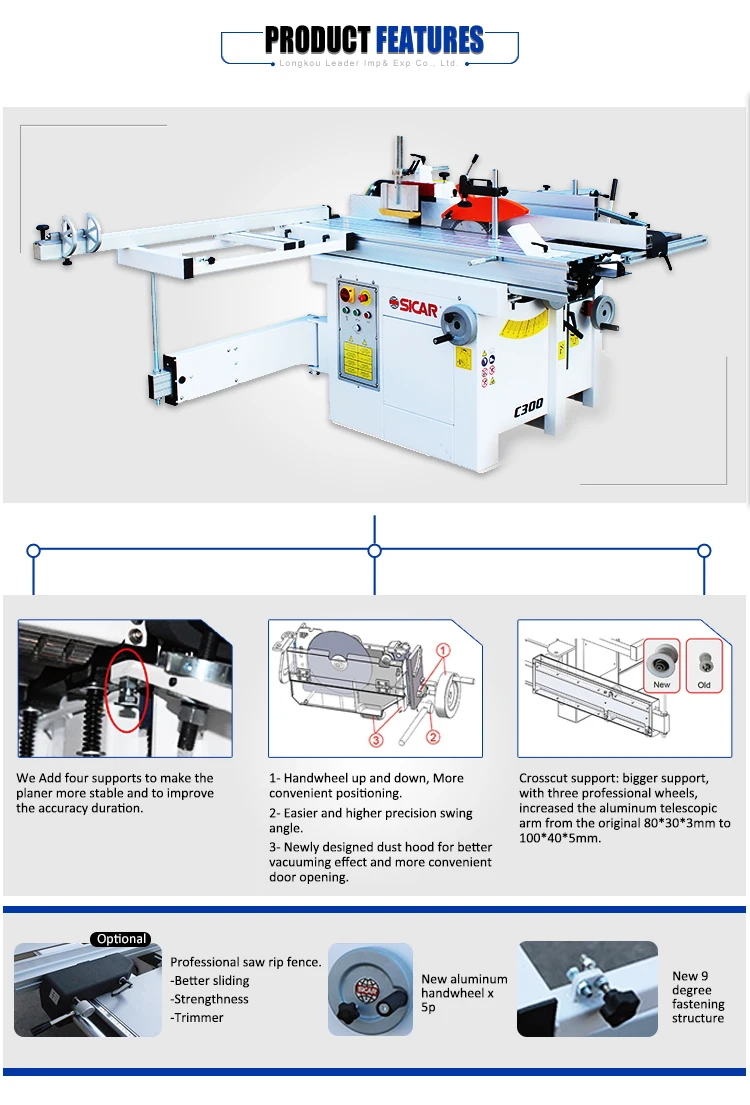

Features:
Panel saw sliding beam | Scoring for veneered boards | Accurate cross cut fence with flipstops |
Cast iron construction | Sturdy swinging arm squaring frame | Inward parallel swing planer table |
3 x 2.2kw class 1 motors | Micro adjust spindle moulder fence | Fully adjustable settings |
Planer | Unit | C300S |
Working tables | mm | 300x1500 |
Cutterblock diameter | mm | 70 |
Cutterblock rotation speed | r.p.m | 5700 |
N. of knives | n° | 3 |
knives dimensions | mm | 300x25x3 |
Max table adjustement | mm | 4 |
Thicknesser | Unit | C300S |
Working table | mm | 300x660 |
Feed speed | m/1' | 7 |
Max. working height | mm | 220 |
Min. working height | mm | 4 |
Cutterblock rotation speed | r.p.m | 5700 |
Max. cutting depth | mm | 4 |
Mortiser | Unit | C300S |
Working table | mm | 250x500 |
Longitudinal stroke | mm | 205 |
Trasversal stroke | mm | 95 |
Vertical stroke | mm | 90 |
Churck | mm | 16 |
Churck rotation speed | r.p.m | 5700 |
Circular saw | Unit | C300S |
Working table | mm | 220x1000 |
Shaft rotation speed | r.p.m | 4500 |
Blade diameter | mm | 250 |
Blade bora diameter | mm | 30 |
Cutting height 90° | mm | 75 |
Max. distance between blade and fence | mm | 600 |
Blade inclination | 0° | 45° |
Max cutting height 45° | mm | 50 |
Shaft rotation speed engraver | r.p.m. | 7000 |
Engraver blade diameter | mm | 90 |
Engraver blade bora diameter | mm | 22 |
Shaper | Unit | C300S |
Working tables | mm | 220x1000 |
Shaft rotation speeds | r.p.m | 220x1000 |
Standard shaft diameter | mm | 30 (32/35/50 optional) |
Spindle lenght | mm | 105 |
Shaft vertical stroke | mm | 115 |
Max. tool diameter | mm | 160 |
Max. tenoning depth | mm | 55 |
Tenoning carriage | Unit | C300S |
Carriage dimensions | mm | 1250x315 |
Carriage stroke | mm | 1250/1600 |
Standard accessories | Unit | C300S |
N°2 clamp lever | * | |
Shaft rotation speed | * | |
Service wrenches | * | |
Mortiser chuck | * | |
Table extensions with swinging arms | mm | 860*600 |
3 pcs. planing knives | * | |
Planer guide | * | |
Saw guide | * | |
Bridge sefety hood on planer | * | |
3-phase motor power | HP - KW | 3,0 - 2,2 |
Weight | Kg | 560 |
Optional accessories | Unit | C300S |
Single-phase motor | HP - KW | 3,0 - 2,2 |
Increasing 3-phase motor | HP - KW | 4,0 - 3,0 |
Contouring fence | * | |
Wescott(Chuck) | mm | 16 |
Carriage stroke | mm | 1600/1600 |
Carriage stroke | mm | 1800/1800 |
Carriage stroke | mm | 2200x2200 |
Tenoning with protection shelf | * |

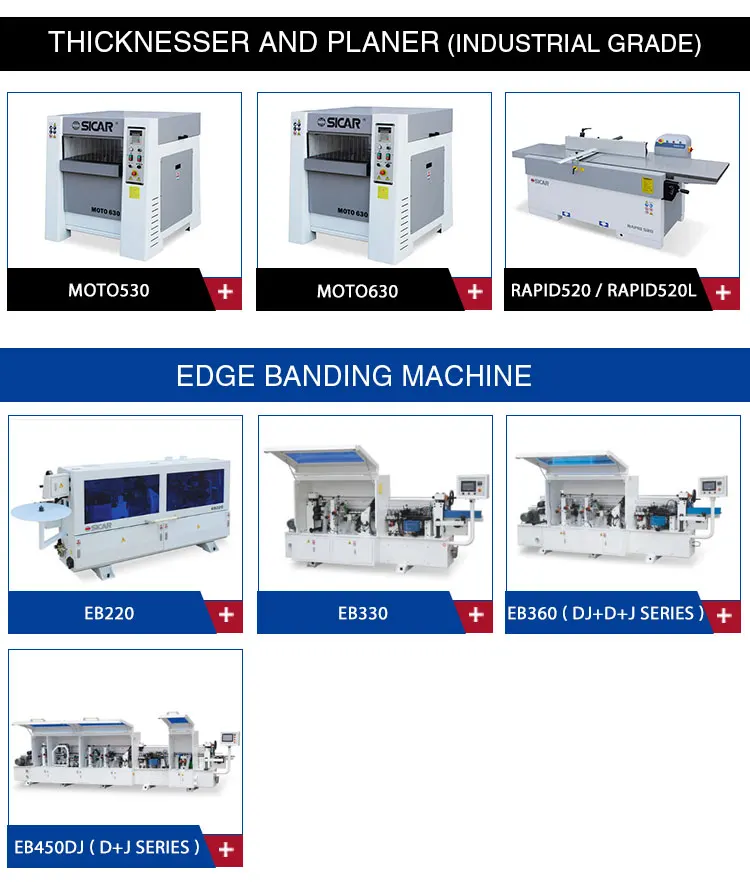

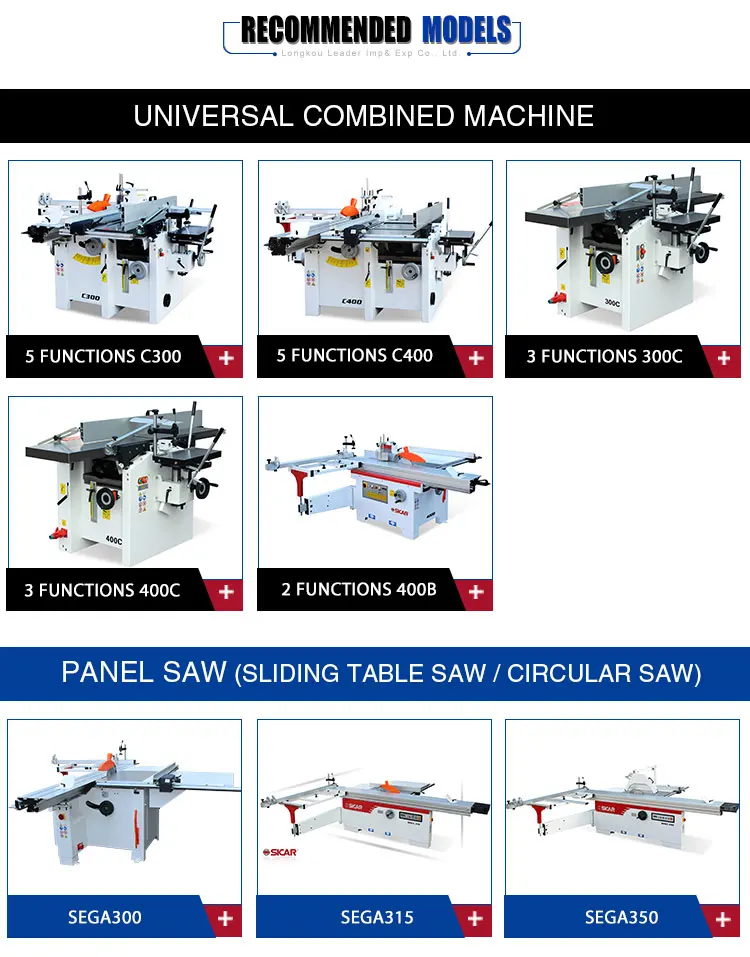

Optional Accessories

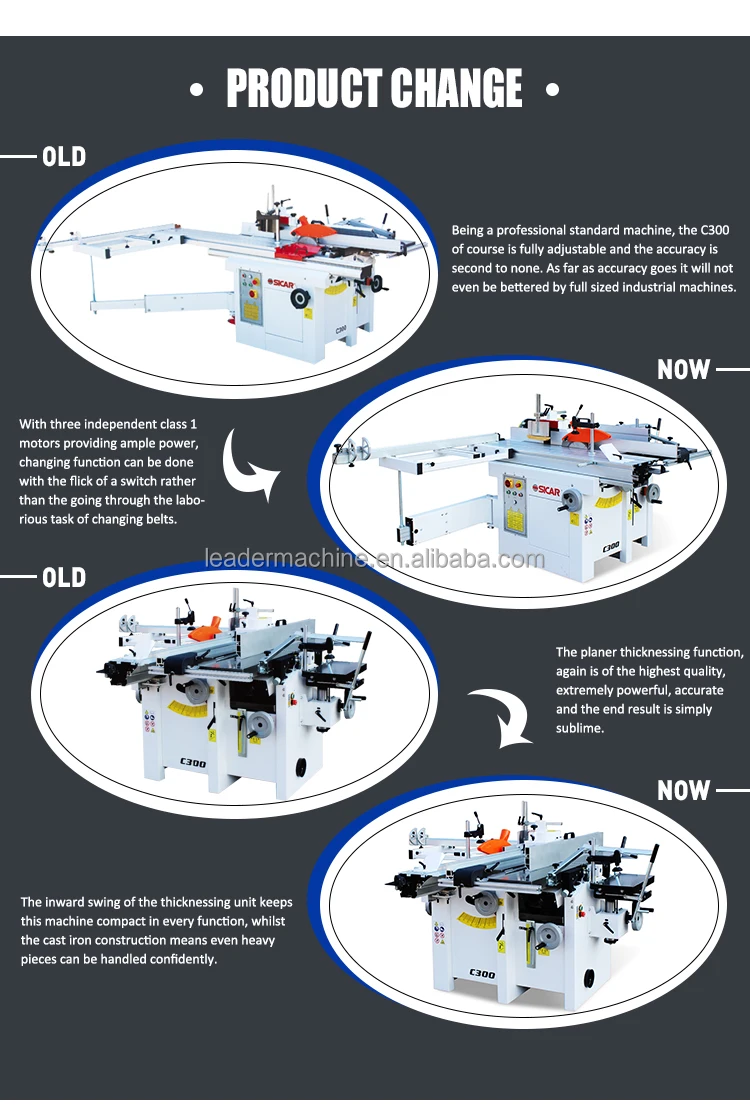

Version History

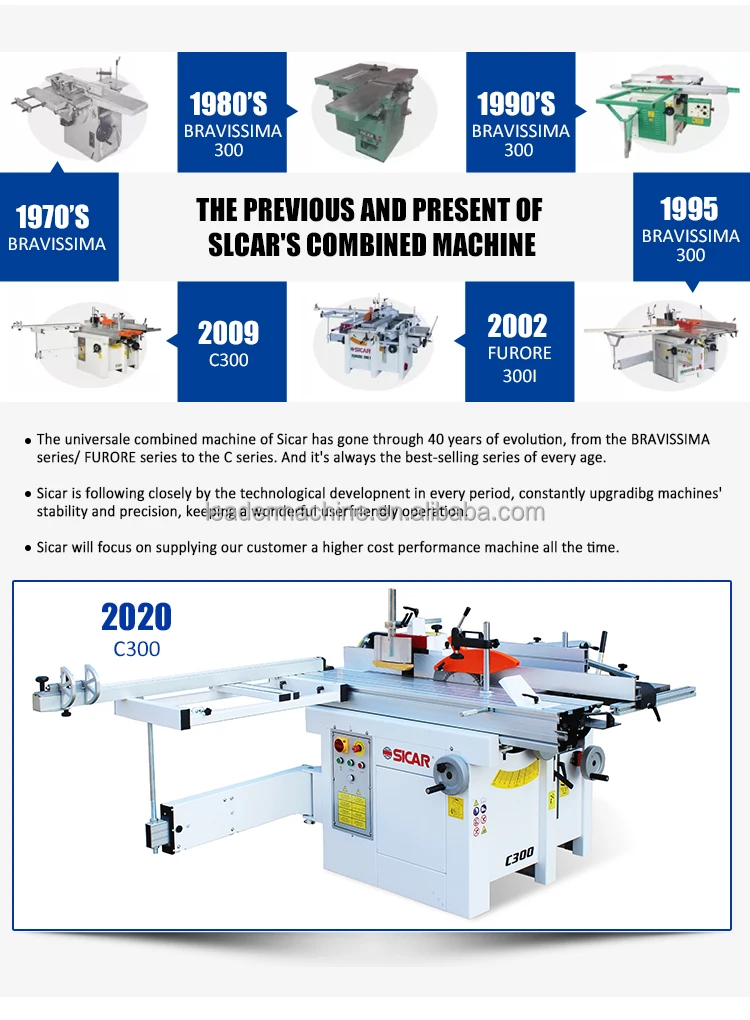

History of development
Company Profile

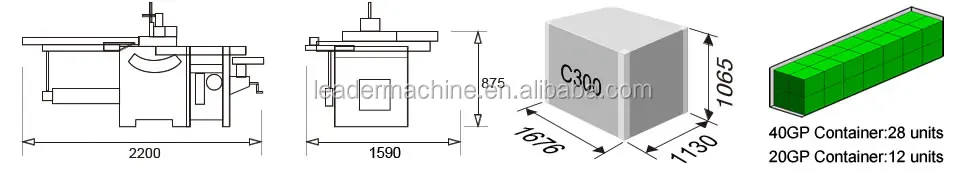

Packing
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer of combined woodworking machine and accessories.
A: We are the manufacturer of combined woodworking machine and accessories.
2. Q: Why choose us?
A: We are professional manufacturer and we have Italian engineer to design our products..
3.Q: Can you guarantee your quality?
A: All of our products is applied with CE certification.
A: All of our products is applied with CE certification.
