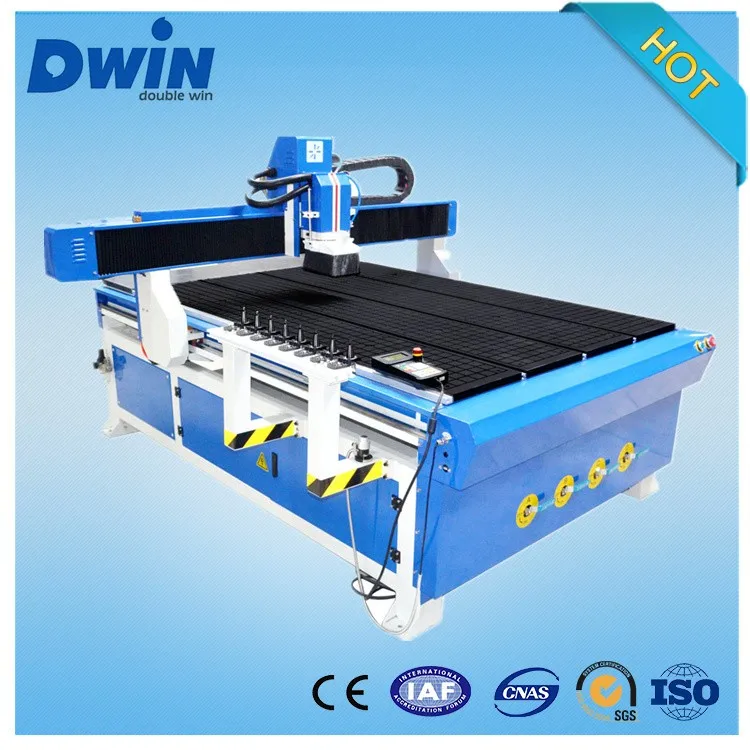

1300x2500mm 3d Atc Cnc Router Woodworking Cnc Machine Furniture Making Machine For Sale
(0)
Perkiraan Waktu Pengiriman:
3 hari
Dijual oleh:
global shopping
global shopping
Harga:
Rp11.000
/Pc
Pengembalian dana:
Produk Paling Laris
Product Description

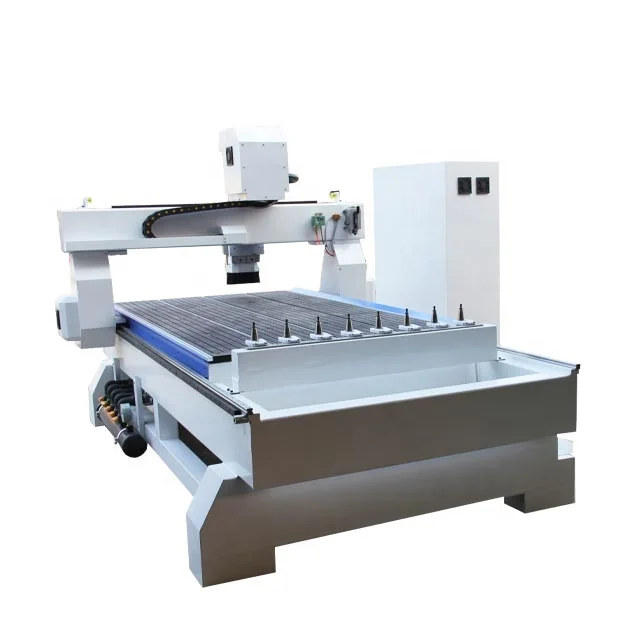

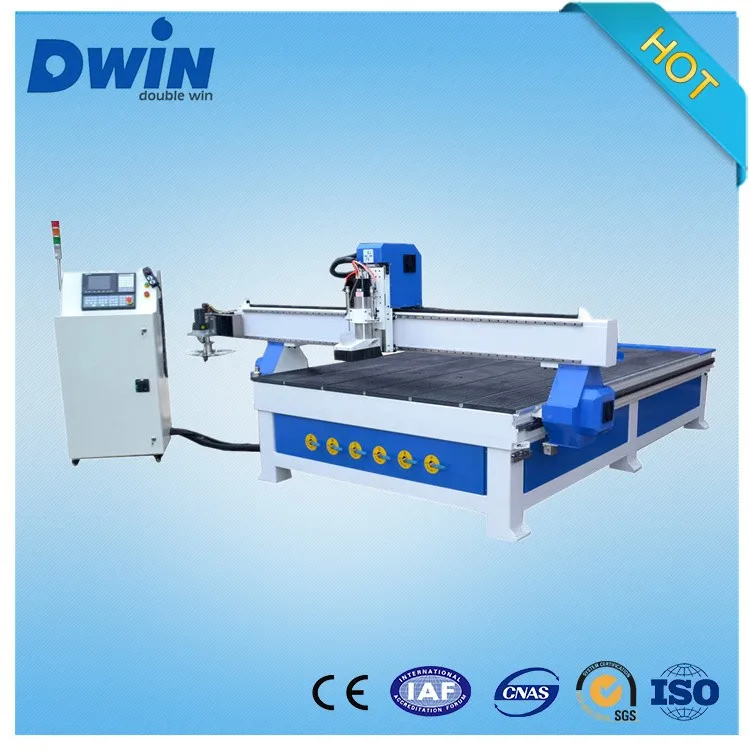

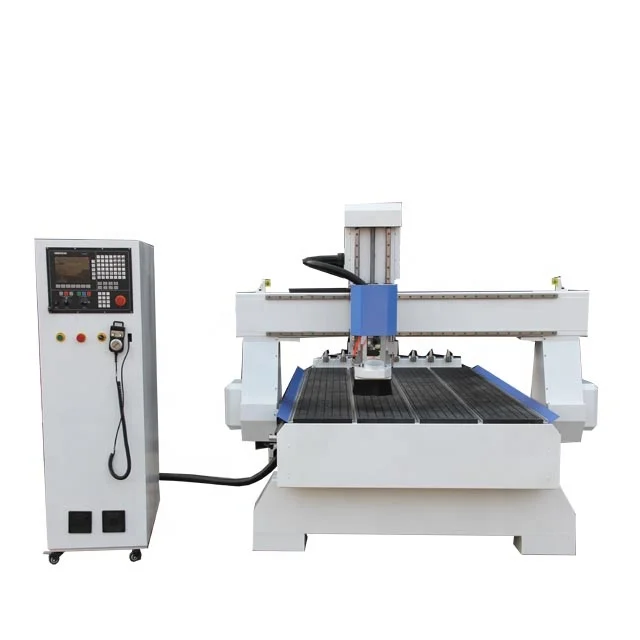

1300X2500mm 3D ATC CNC router Woodworking CNC Machine Furniture Making machine for Sale
1).Adopt linear-square orbit, whole machine is welded with seamless steel structure, can heavy loading.
2).Taiwan HIWIN square guide rail, ball screw for z axis and gear-wheel for x and y axis
3).Taiwan Syntec control system. Bus control, namely a line control all drives, convenient maintenance.
4).Italy HSD 9.0kw air cooling spindle( 0-24000rpm )
5).Automatic tool change, convinient and swift
6).With better compatibility, can math with many programs such as Type3, artcam, castmate, CAM, etc.
Machine parameter
Machine models | DW1218 | DW1325 | DW2030 | ||
Working area | 1200*1800mm | 1300*2500mm | 2000*3000mm | ||
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm | ||||
X,Y,Z Repositioning Accuracy | ±0.03/300mm | ||||
Table Surface | T-slot & vacuum table | ||||
Frame | Big Steel tube structure | ||||
X, Y Structure | Taiwan Hiwin Rail Linear Bearings | ||||
Z Structure | Taiwan Hiwin Linear Bearings and Ball Screw | ||||
Max. Power Consumption | (Without spindle) 4.2Kw | ||||
Max. Rapid Travel Rate | 35000mm/min | ||||
Max. Working Speed | 25000mm/min | ||||
Spindle Power | 9KW HQD air cooling spindle (Italy HSD brand for choice) | ||||
Spindle Speed | 0-18000RPM | ||||
Drive Motors | Servo motor | ||||
Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) | ||||
Command Language | G code | ||||
Operating System | NCstudio NK260 control system | ||||
Relative Humidity | 30% - 75% | ||||
Computer Interface | USB | ||||
Guarantee | 24 months | ||||
Machine parts

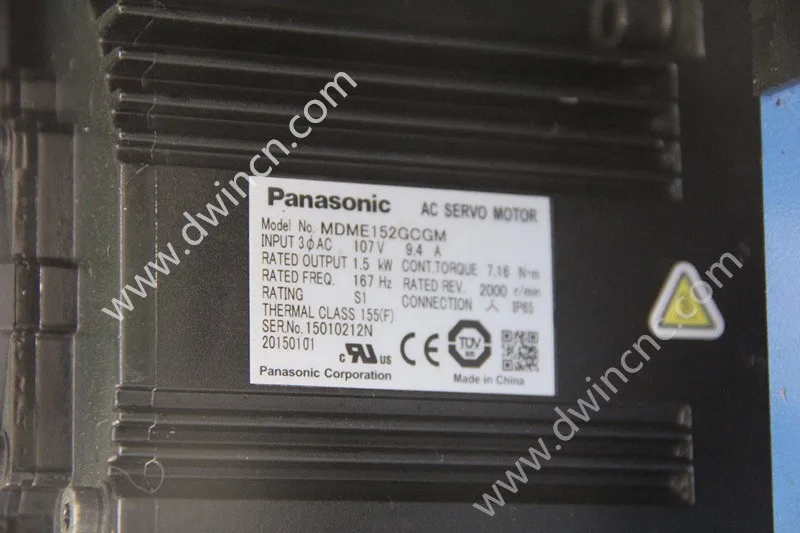

servo motor
With good stability and speed.
Vacumm tableT-slot work table for you choose

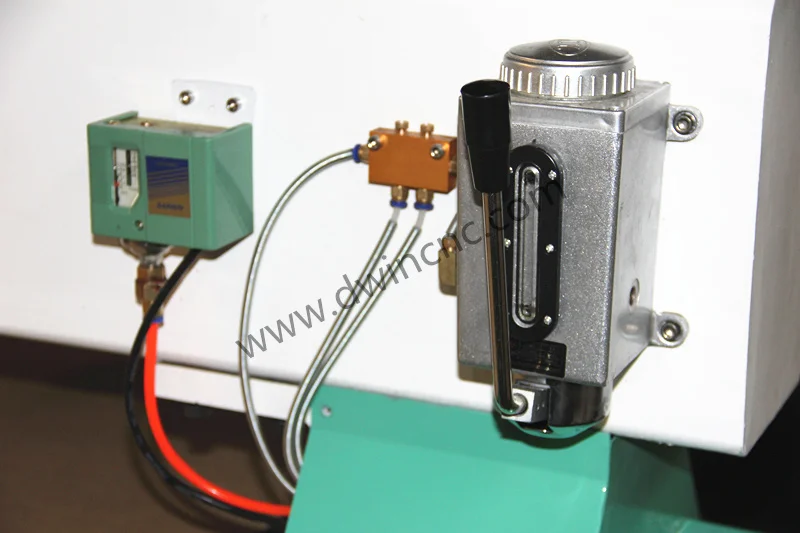

Oil system
Oil machine guideway

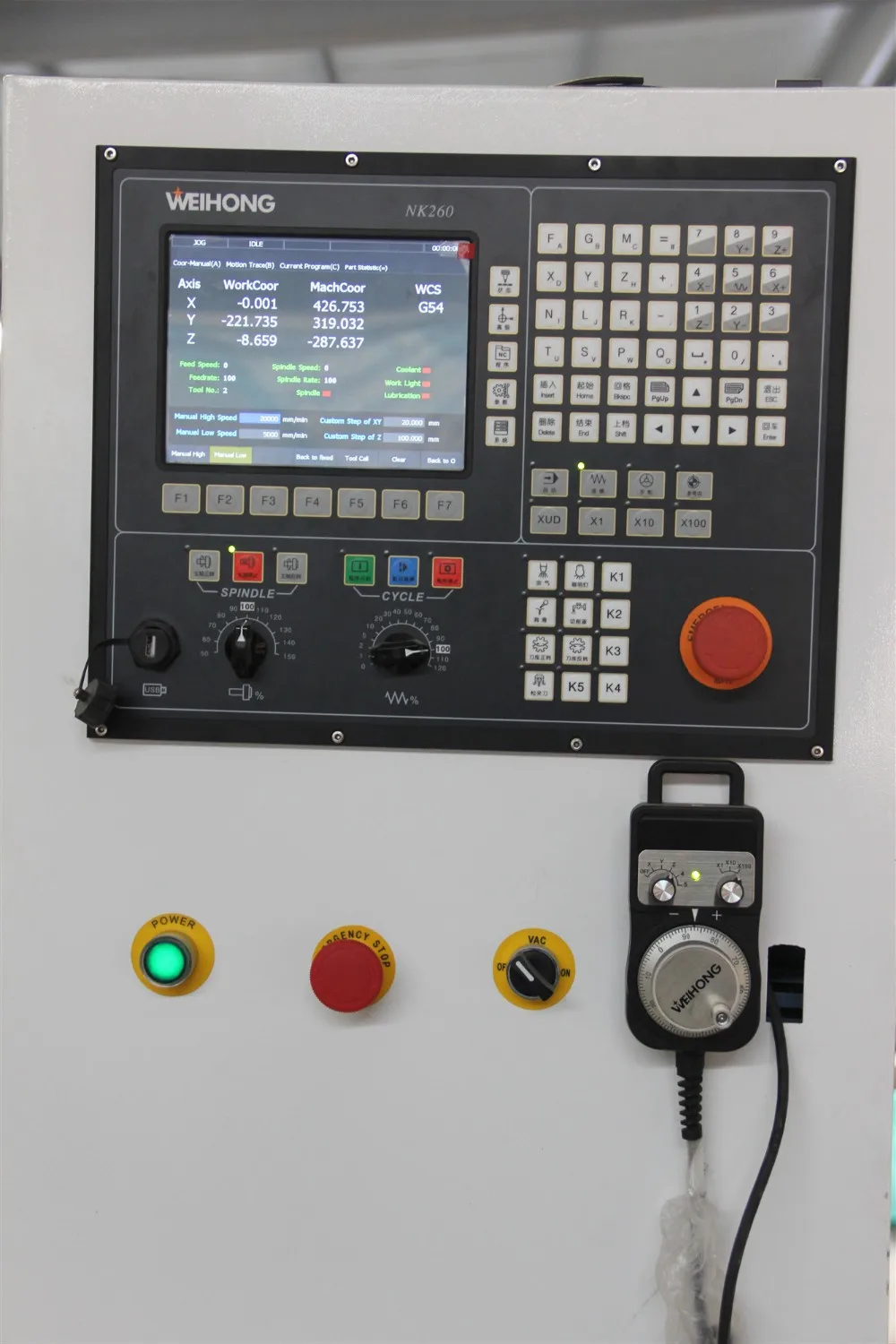

Control system Weihong NK260
Distribution box
Machine tools

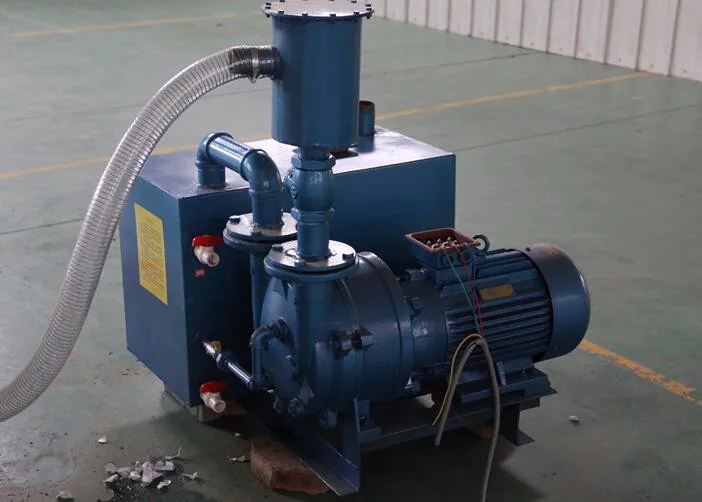

Vacum pump

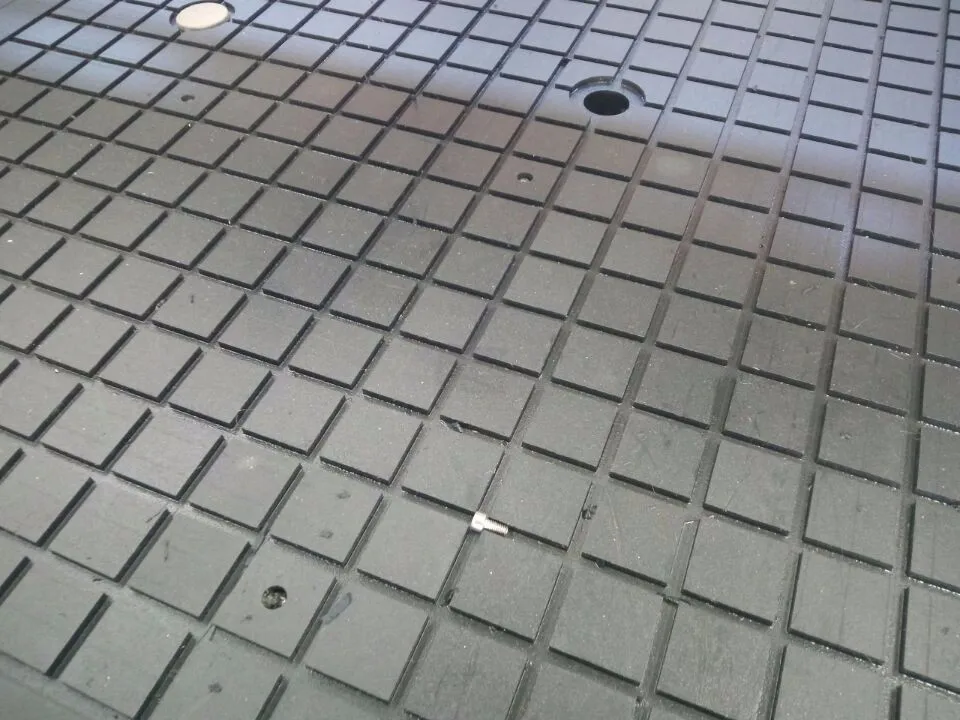

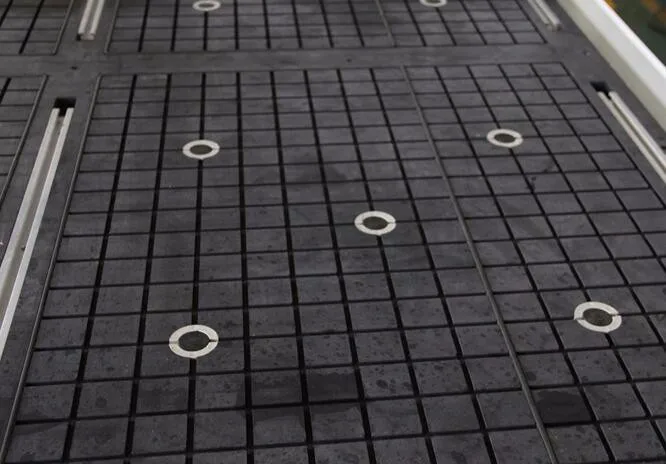

Vacumm table

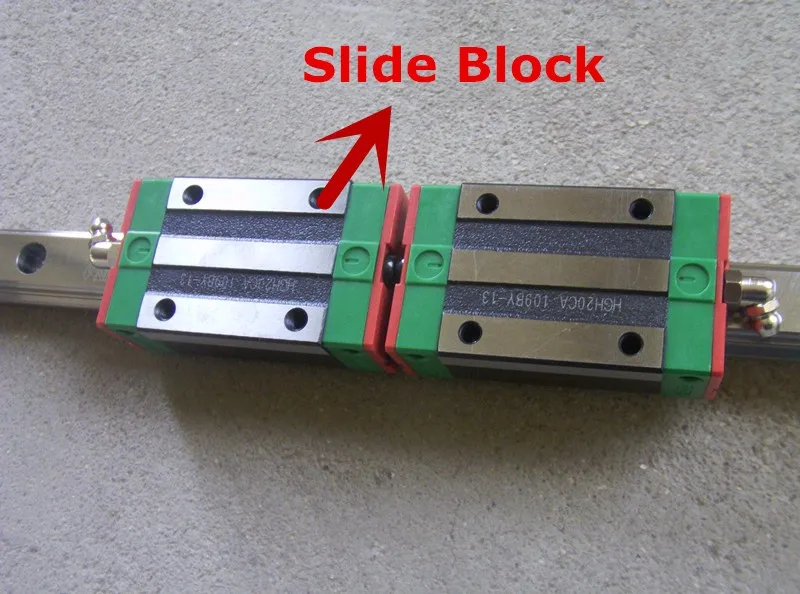

Slide block

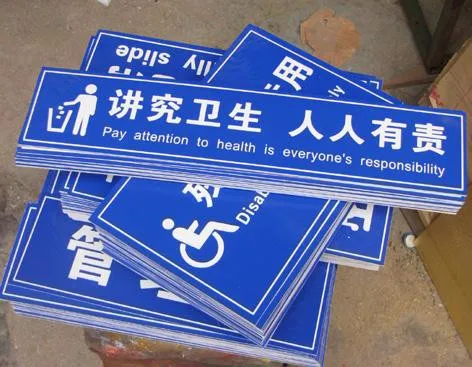

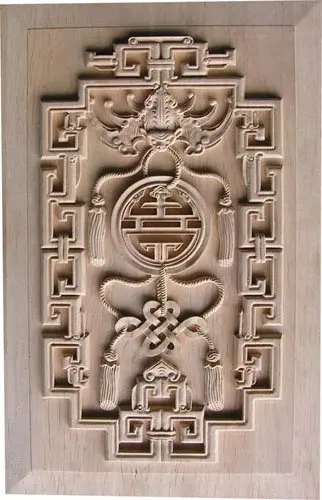

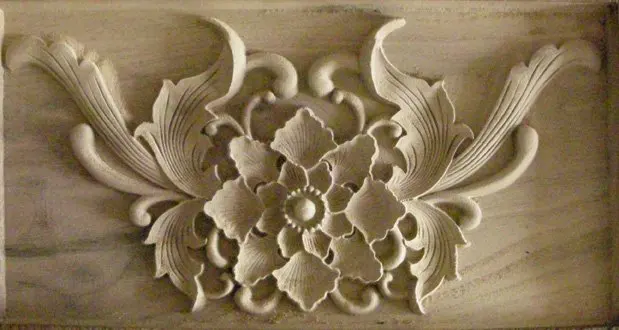

Machine samples
Machine application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

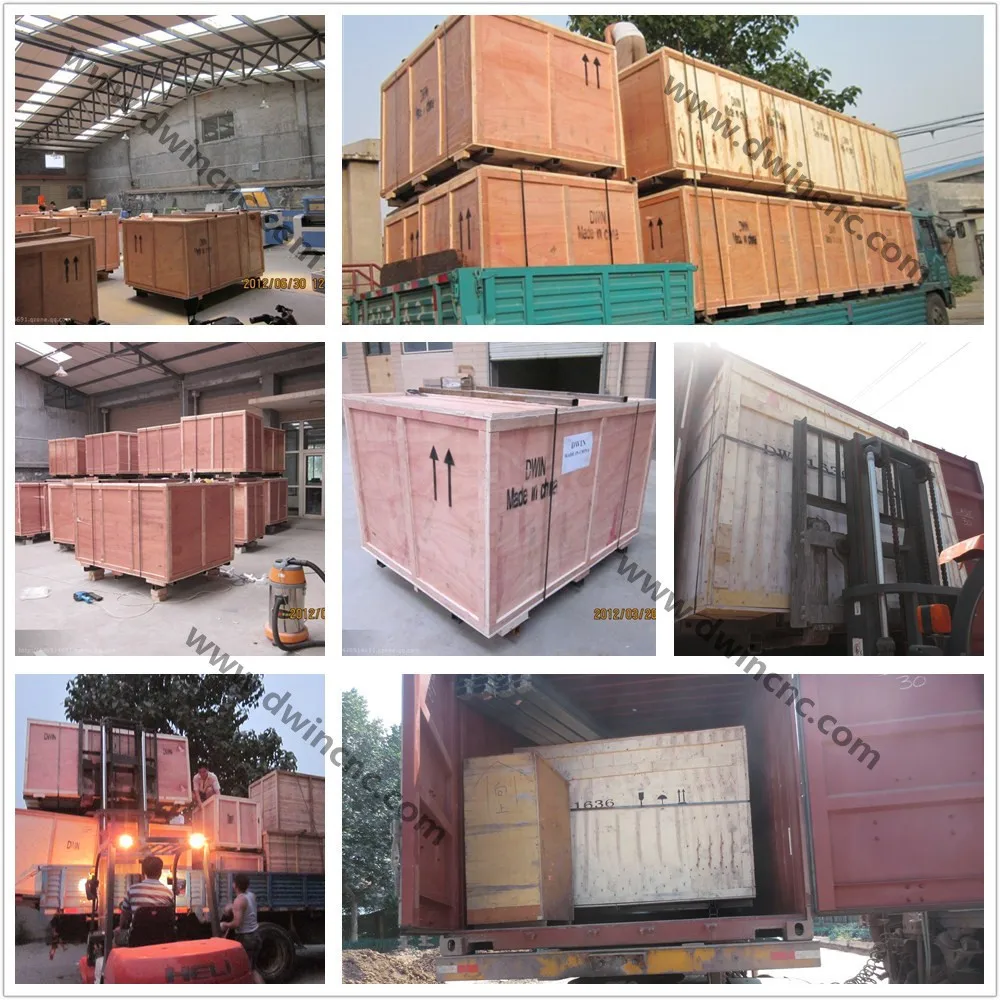

Machine packing
Packaging Detail: water-proof paper on machine and standard plywood box
Delivery Detail: 15 days after received your payment
Delivery Detail: 15 days after received your payment
Certifications
Dwin clients
Dwin service
1. Offering the specification of the machine ,2 years warranty
2. English software, user manual and operation CD
3. 24 hours technical support by e-mail, calling service If you have any problems ,we will within 12 hours to solve it .
4. If you need any component of the machine later ,we will provide the best price for you
5. 7working days to produce the machine ,in the meanwhile , we will report the production process in time.
2. English software, user manual and operation CD
3. 24 hours technical support by e-mail, calling service If you have any problems ,we will within 12 hours to solve it .
4. If you need any component of the machine later ,we will provide the best price for you
5. 7working days to produce the machine ,in the meanwhile , we will report the production process in time.
