Techpro High Quality Cnc Wood Carving Machine Furniture Working Machine For Sale
(0)
Perkiraan Waktu Pengiriman:
3 hari
Dijual oleh:
emma store
emma store
Harga:
Rp28.000
/Pc
Pengembalian dana:
Produk Paling Laris

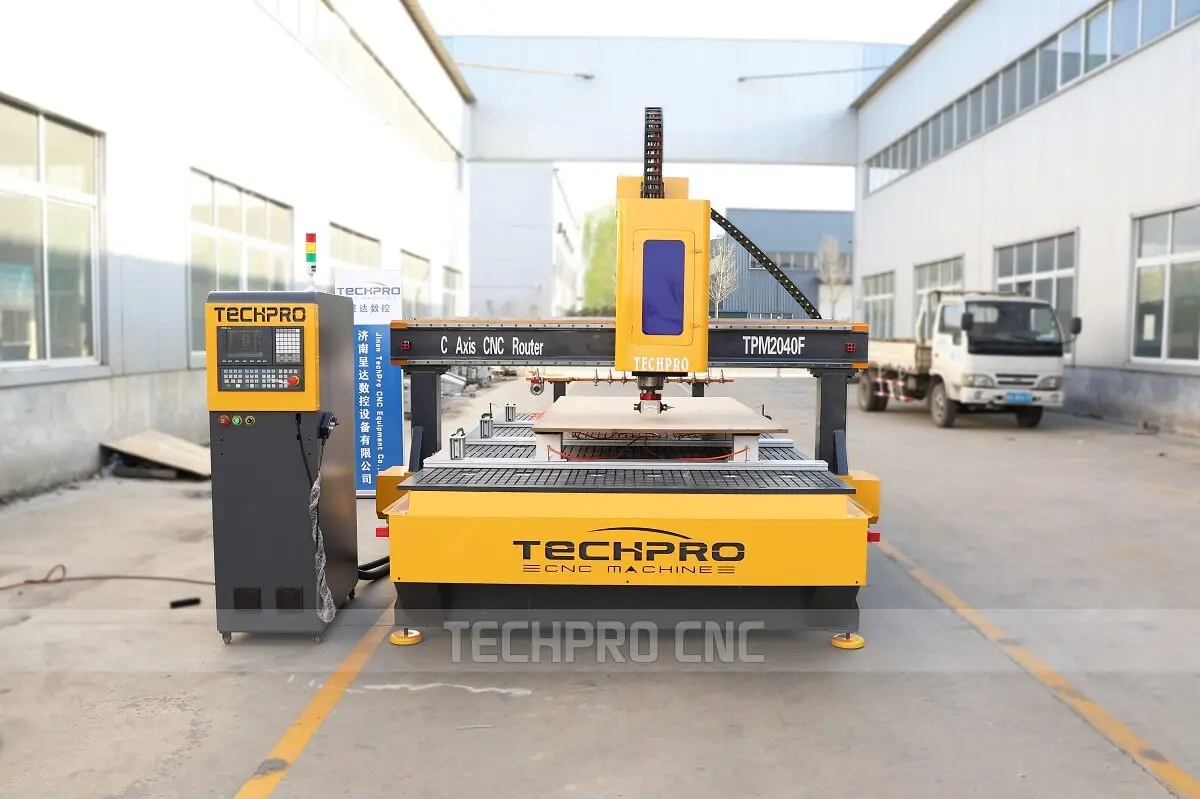

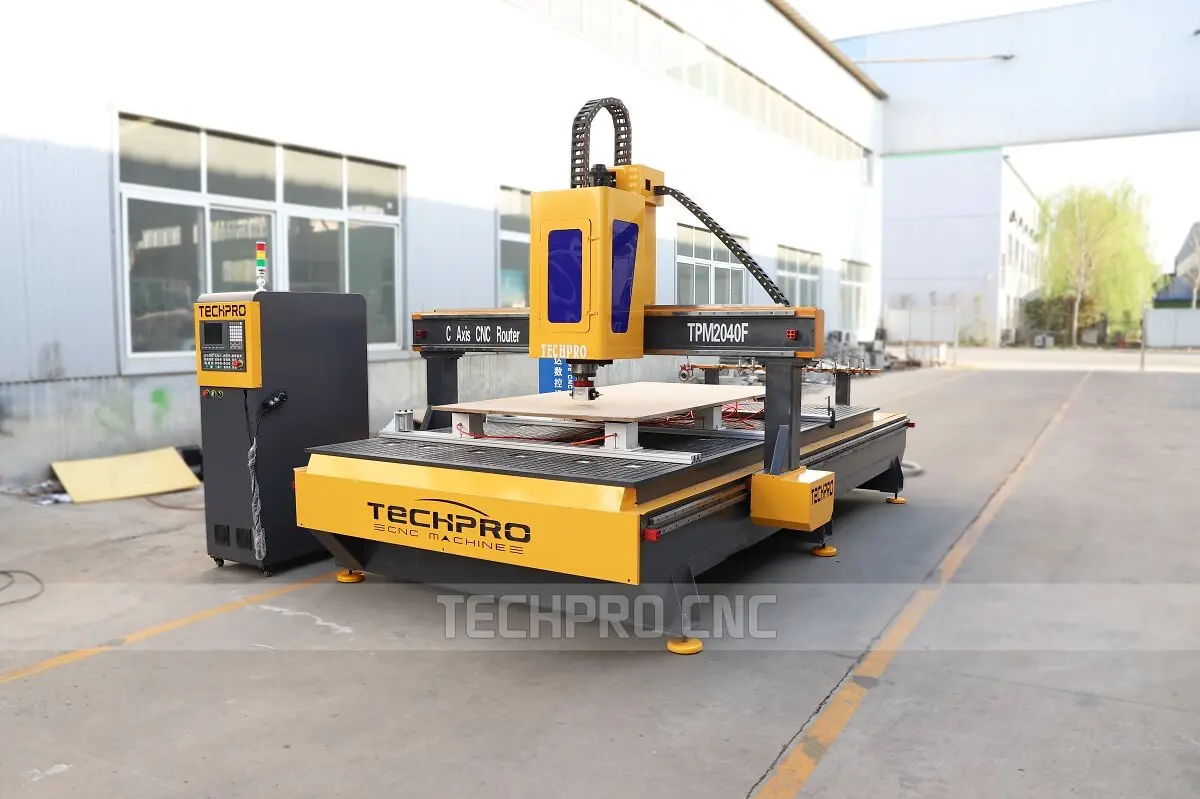

C Axis ATC Wood CNC Router Cutting Machine Features :
1. It adopts taly HSD air cooling spindle, no need water pump, it is very convenient to use. 2. With HSD C axis , HSD Aggregate suitable for panel furniture production industry
3. with high-performance Japan YASKAWA servo motor, the machine can work in high precision, and it has a strong ability of overload.
4. The linear automatic tool changer system which contains 12 pieces cutting tools controlled by Taiwan Syntec 6MB control system.The tools can be changed very quickly and reliably.
5. Break point memory, continuing carving after power outage, forecasting processing time.
6. It is compatible with Type3 / Artcam and other CAD / CAM design software.
Products Description
Model | TPM1325F | |||||
Working area | 1300*2500mm/1500*3000mm/2000*3000mm*450mm | |||||
Control system | Taiwan Syntec 6MB Control System | |||||
Spindle | Italy HSD 9.0kw air cooling spindle With HSD C axis | |||||
Spindle Rotating Speed | 0-24000rpm | |||||
Power Supply | AC380/220V | |||||
Inverter | Fuling inverter | |||||

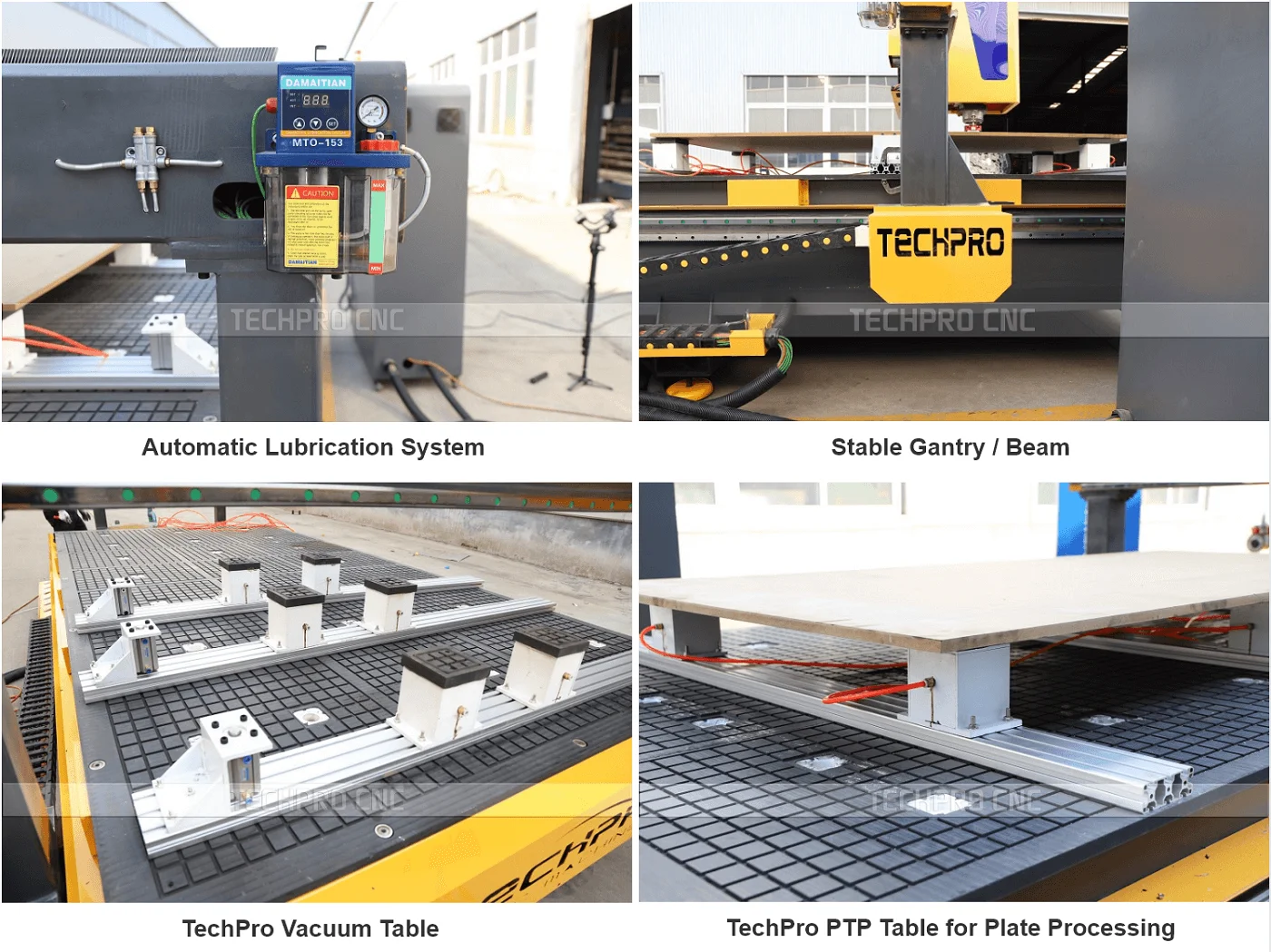

Table surface | T-slot + vacuum working table + Manual PTP Table | |||||
Driving System | Japanese Yaskawa servo and drivers 1300W | |||||
Locating precision | ＜0.01mm | |||||
Transmission | X,Y axis: Gear rack, high accuracy square guide rail, Z: Ball screw TBI and Hiwin square guide rail | |||||
Electric Parts | Schneider brand | |||||
Tool Sensor | Automatic type | |||||
System Resolution | ±0.001mm | |||||
Working Humidity | 30%-75% | |||||
Software | UG/Artcam/Ucancam / Fushion360 etc | |||||
Extra Aggregate | Italy C Axis with Aggregates | |||||
Application ATC CNC Router Cutting Machine :
1. Mold: wood,wax, wood, foams.
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE. 5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals: such as copper, aluminum plate engraving and milling process.
Our Advantages

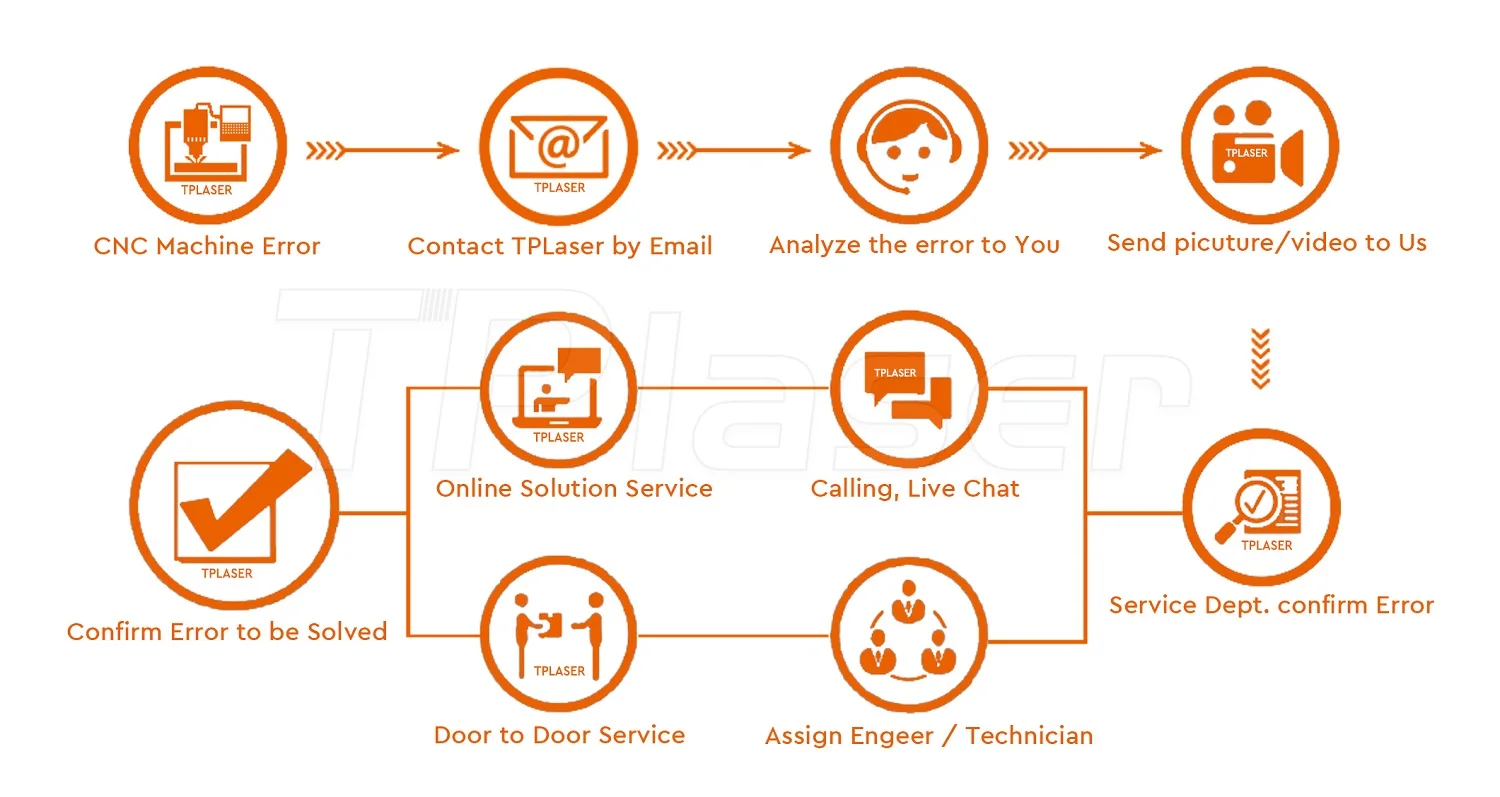

After Service of ATC CNC Router:
1. We will supply the wood cnc router with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, WhatsApp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)
1. We will supply the wood cnc router with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, WhatsApp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)
2. You can come to our laser machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days
3. Our engineer will do a door-to-door instruction training service at your local site.
Warranty for CNC Router Machine:
1. 3 years for the whole machine, laser device 18 months, chiller 12 months, lens/mirror/nozzle without warranty.
1. 3 years for the whole machine, laser device 18 months, chiller 12 months, lens/mirror/nozzle without warranty.
2. Long life-time maintenance, after-sale department will offer 24/7 English online support.
3. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.
4. After the warranty period expired, the buyer only need to pay the actual maintenance cost.
5. Certificate support: CE, SGS.
5. Certificate support: CE, SGS.
Packing Detail:
1).Outside package: Standard marine export plywood case.2). Inner package: Stretchy film and plastic film for humidity.
3). CNC router achine packing size:3850*2150*2120mm ,GW: 1900kg
Shipped in 20-25 working days after payment.
1) CNC Router machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
1) CNC Router machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
Our Company:
Jinan TechProCNC Machinery Co., Ltd, Since 2007, it’s a high-tech enterprise producing CNC machine, focusing on the research and development and sales of industrial CNC products, Located in Jinan city (the hometown of CNC Machinery in China) ,has been steadily developing more than 10 years.

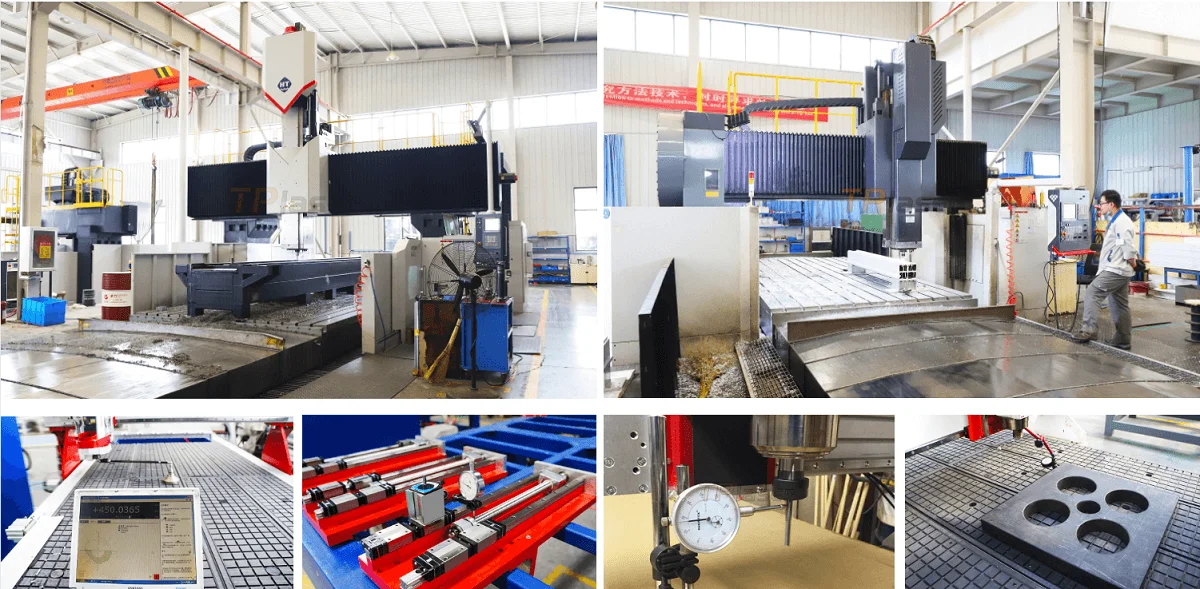

TECHPRO has established 3 mode factories with more than 18 automation, high precision processing equipment in China. With a total construction area of 8,500 square meter, it have more than 100 well-trained workers, include 15 domestic and international after-service engineers,60 assembly workers etc.
TECHPRO adheres to the motto of "customer first, service first". we believe in the spirit of enterprise “cooperation, win-win, appreciate and share ", and continue to attract top talents and precision laser technology to join us,

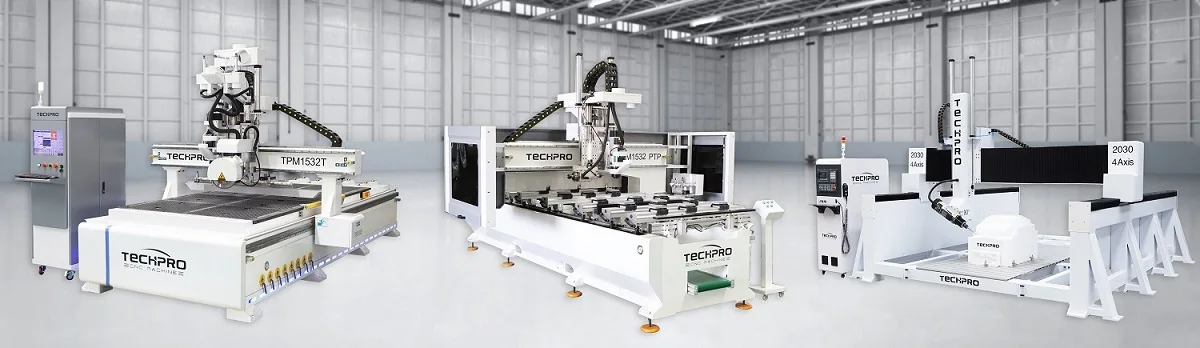

TECHPRO is a leading CNC equipment manufacturer in China and has launched 10 series products with an annual production capacity of 1,120 sets. With advanced CNC technology, perfect quality management system and convenient after-sales service in the network of mainland China and global markets. If you are interested in any of our products or would like to discuss a custom order,please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
