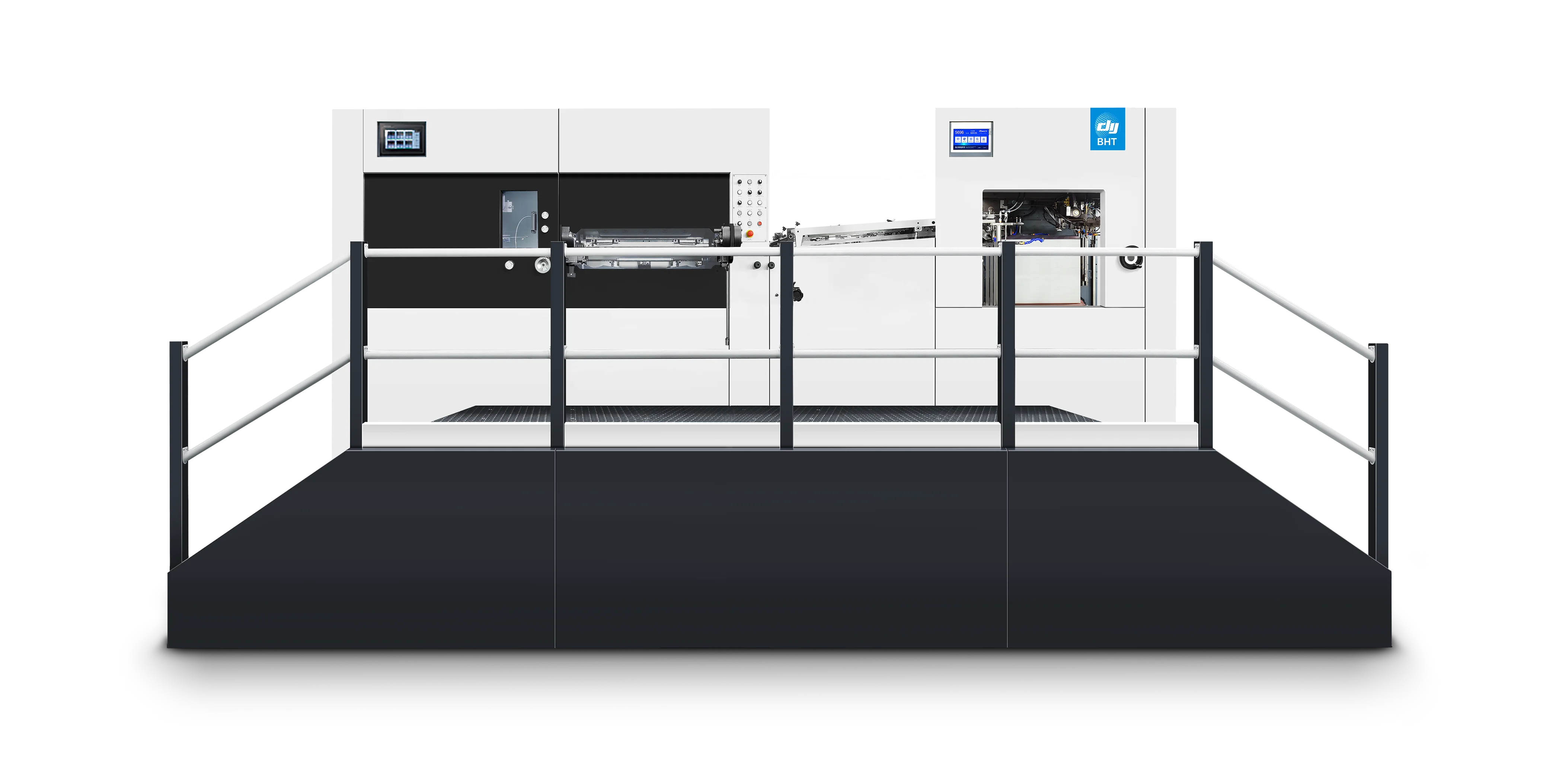

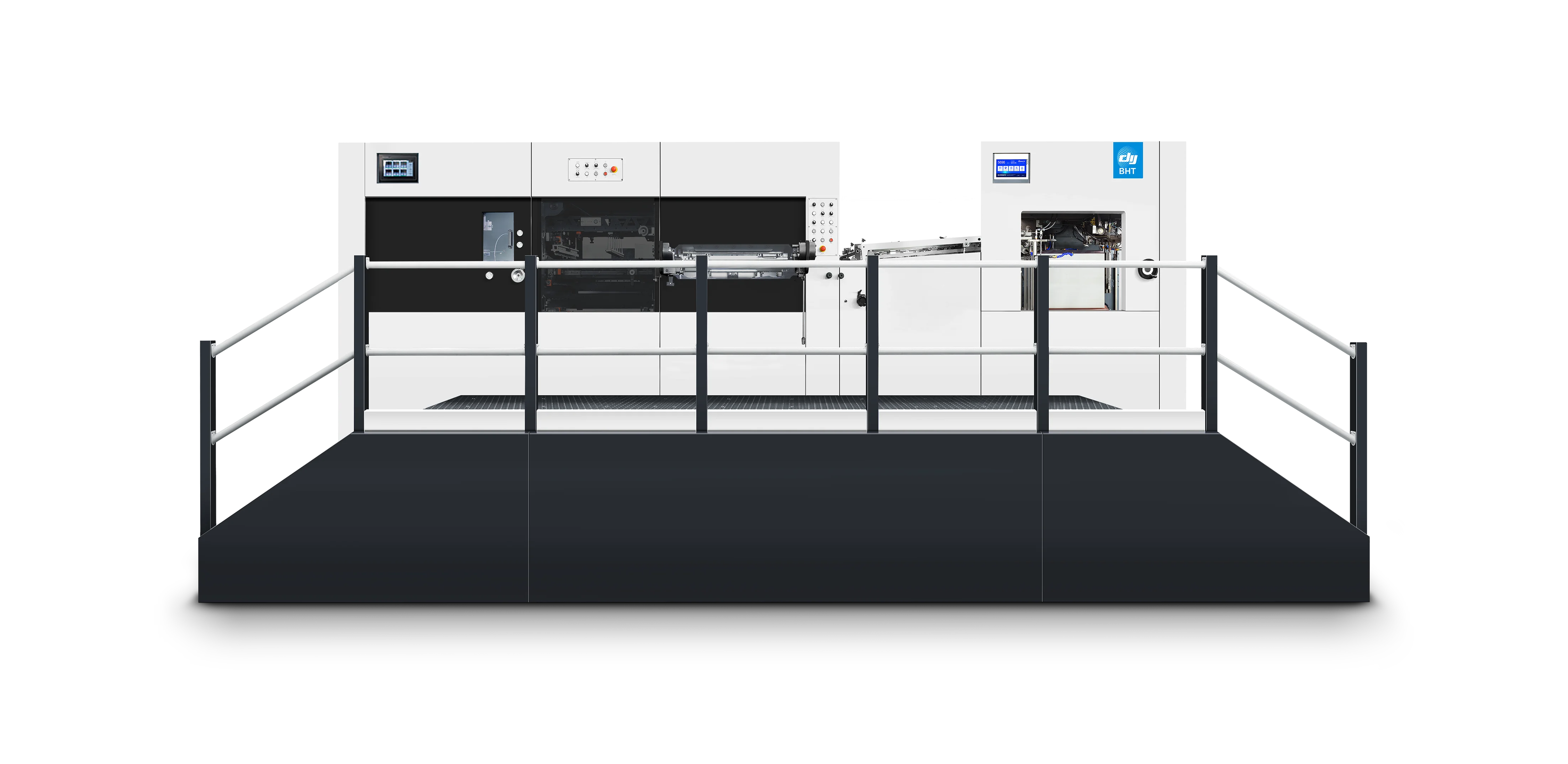

Bht-1060ar/acer Automatic 3d Deep Embossing And Stripping Die Cutting Machine
Lariso
| PARAMETER | ||
| Model | BHT-1060AR | BHT-1060ACER |
| Max. sheet size | 1060X760(mm) | 1060X760(mm) |
| Min. sheet size | 400X350(mm) | 400X350(mm) |
| Max. die cutting size | 1060X745(mm) | 1060X745(mm) |
| Min.gripper margin | 9-17mm | 9-17mm |
|
Inner chase size |
1080X770(mm) | 1080X770(mm) |
| Stock range |
80~2000g/m(Card paper) 0.1~2mm(paper) ≤4mm(corrugated paper) |
80~2000g/m(Card paper) 0.1~2mm(paper) ≤4mm(corrugated paper) |
| Die cutting accuracy | ≤±0.075mm | ≤±0.075mm |
| Max. working pressure | 600ton | 600ton |
| Max. working speed | 8000s/h | 8000s/h |
| Max. paper feeding stacking height | 1630mm(including wooden pallet) | 1630mm(including wooden pallet) |
| Max. paper collecting stacking height | 1480mm(including wooden pallet) | 1480mm(including wooden pallet) |
| Main motor power | 15kw | 15kw |
|

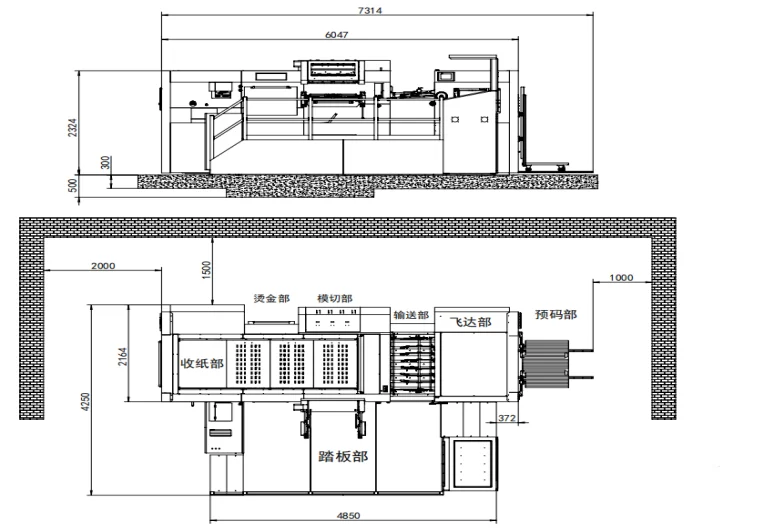

Overal dimension (length:including pre-feeding track) (width:including the pedal) |
6703mm*4518mm*2502mm(AR)
|
8017mm*4518mm*2502mm(ACER) |
| Total weight of machine | 21ton |
23ton |
| Full-load wattage | 35kw | 35kw |
| Air pump displacement | 0.6~0.7Mpa,≥0.37m3/min | 0.6~0.7Mpa,≥0.37m3/min |
https://www.alibaba.com/product-detail/MHC-SERIES-MULTIFUNCTION-AUTOMATIC-DIE-CUTTING_60822203129.html?spm=a2747.manage.0.0.17e771d2AH49zFhttps://www.alibaba.com/product-detail/SM-CM-GM-SERIES-SINGLE-KNIFE_60821106626.html?spm=a2747.manage.0.0.17e771d2AH49zF https://www.alibaba.com/product-detail/Paper-Embossing-Machine_62012693288.html?spm=a2747.manage.0.0.17e771d2AH49zF
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.
2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
3.Q: What is your delivery time?
A: Die cutting machine, 30-40 days usually. If urgent, 15 days only.
Paper cutting machine, 20-30 days usually. If urgent, 15 days only.
4.Q: What is your warranty and other terms?
A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
