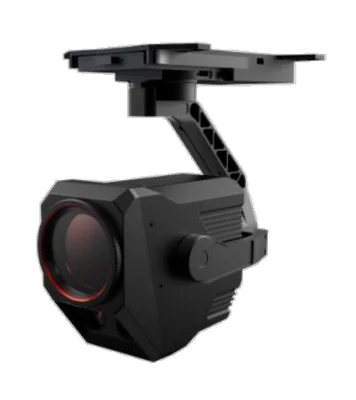

Uav 3-axis Gimbal Camera 2mp 1000m Laser Ranging 35x Optical Zoom Target Tracking Uav 3-axis Gimbal Camera

                                                               Camera Customization Process

1:According to the actual application scene and functional target, the camera needs to comprehensively consider the product structure size, image definition, frame rate, lens angle, lighting scene and other factors to choose the appropriate DSP chip, SENSER and lens. Need to be customized.This product is only for customer testing DEMO, please contact our customer service to inform you which product you want the camera to be used on? What functions are implemented? Any special requirements? According to the cost target and other comprehensive Factors, we help you choose the appropriate DPS+SENSER+ lens scheme, and then design the product PCBA according to the structural requirements.


2:Example: a customer prepared to do a person identify comparison machine. If it is used in the indoor with good light , we suggest the customer to use ordinary lens and SENSOR. If there is bad light or backlight, we suggest the customer to use WDR wide dynamic SENSOR+ disto If the customer has very high security requirements, we recommend that the customer use WDR and the black and white infrared binocular recognition camera. When the client determines the SENSOR and lens scheme, the parameters such as color, white balance and Saturation should be adjusted according to the actual environment to achieve the target effect.

                                             Notes on common problems with cameras

 1. How to choose the lens angle?

  A: Confirm the shooting range to be used, that is, how many objects should be taken at the distance, and then calculate the required angle. If you can't confirm the angle yourself, you can provide the specific application environment (that is, how many distances to shoot). How big is the object) to the customer service, after testing, recommend the most suitable lens.

2. Can I change the lens?

  A: Yes, we ship the right lens according to your actual application and needs.

3. Does the camera need to be equipped with a driver?

  A: Free drive, directly plugged in will automatically install the driver, standard UVC drive-free protocol, can be used in WINXP WIN7 WIN8 Linux Android MacOS and other systems, for Linux and Android systems, as long as the system has UVC driver, you can use Universal (based on standard V4L2 interface development) software for operation

4. Is the SDK available?

 A: You can provide the SDK, provide the SDK source code for Windows system and the application source code for Linux system.

5. Is there software for distribution? Can I record video?

 A: It can be equipped with the normal AMcap image preview software. The software can modify the resolution, can take pictures, and can modify the basic parameters (brightness, contrast, color saturation, hue, sharpness, gamma, white balance, Backlight contrast, exposure, etc.
