Atc Cnc Wood Router 2130 Wooden Door Making Machine Wood Furniture Making Machine
(0)
Perkiraan Waktu Pengiriman:
3 hari
Dijual oleh:
Large tool maker
Large tool maker
Harga:
Rp14.800
/Pc
Pengembalian dana:
Produk Paling Laris
Products Description
Brand | WISE |
Material | 8mm steel pipe |
MOQ | 1 Set |
Custom | Accept |
direct factory for
ATC cnc wood router 2130 wooden door making machine wood furniture making
ATC cnc router Features:
1.The whole machine body is made from 8MM steel seamless welding tempering aging treatment, rigid, no deformation.
2.Servo motor, high precision and high speed.
3. Taiwan 30 square rail guide, smooth operation, more stable high precision, long life.
4. 9KW air cooling ATC spindle, long power life, speed up to 18000 r / min, carved smooth surface.
5. Large equipped with a separate cabinet, touch screen operation, simple and convenient, easy to learn.
6. With double layer vacuum table, cut make cross on vacuum table, better sucking effect. vacuum system can be sucked in the processing process of wood chips and debris, to keep the table clean and indirect maintenance of the equipment.
7.12 linear ATC tools, servo driving
8. nesting atc cnc router is used for wood cutting, engraving, milling, hole cutting, applied in panel furniture, clothed cabinet, and advanced cabinet door making
Application:
Suitable for carpentry, wooden doors, furniture, cabinets, molds, panel furniture etc.
2.Servo motor, high precision and high speed.
3. Taiwan 30 square rail guide, smooth operation, more stable high precision, long life.
4. 9KW air cooling ATC spindle, long power life, speed up to 18000 r / min, carved smooth surface.
5. Large equipped with a separate cabinet, touch screen operation, simple and convenient, easy to learn.
6. With double layer vacuum table, cut make cross on vacuum table, better sucking effect. vacuum system can be sucked in the processing process of wood chips and debris, to keep the table clean and indirect maintenance of the equipment.
7.12 linear ATC tools, servo driving
8. nesting atc cnc router is used for wood cutting, engraving, milling, hole cutting, applied in panel furniture, clothed cabinet, and advanced cabinet door making
Application:
Suitable for carpentry, wooden doors, furniture, cabinets, molds, panel furniture etc.
Technical parameter of Linear ATC CNC Router | ||||||||
Model | WISE48 | |||||||
XYZ working area | 1300*2500*300mm | |||||||
Machine Table | Vacuum suction table (double layer, better sucking effect) | |||||||
XY axis Transmission | Taiwan M2.0 Helical rack pinion,fast speed, higher precision | |||||||
Z axis transmission | Taiwan Ball Screw, precision can reach 0.03mm | |||||||
Driving system | 1.5KW servo driver and motor | |||||||
Spindle | 9kw CC Brand ATC air cooling spindle | |||||||
ATC tools | 12 auto tool changing tools in line | |||||||
Inverter Power | 11kw | |||||||
Control system | Taiwan LNC touch screen controller | |||||||
Vacuum pump | 7.5KW | |||||||
Dust collector | 5.5KW | |||||||
Guiding system | Taiwan 30 Guide rail, more stable | |||||||
Working power | AC380V 3phase 50HZ | |||||||
Machine weight | 3000kgs | |||||||
Auxiliary Part for ATC cnc router | cylinder position, automatic lubricating system, | |||||||
japan shimpoo reducer, tool sensor, software, tool box etc. | ||||||||

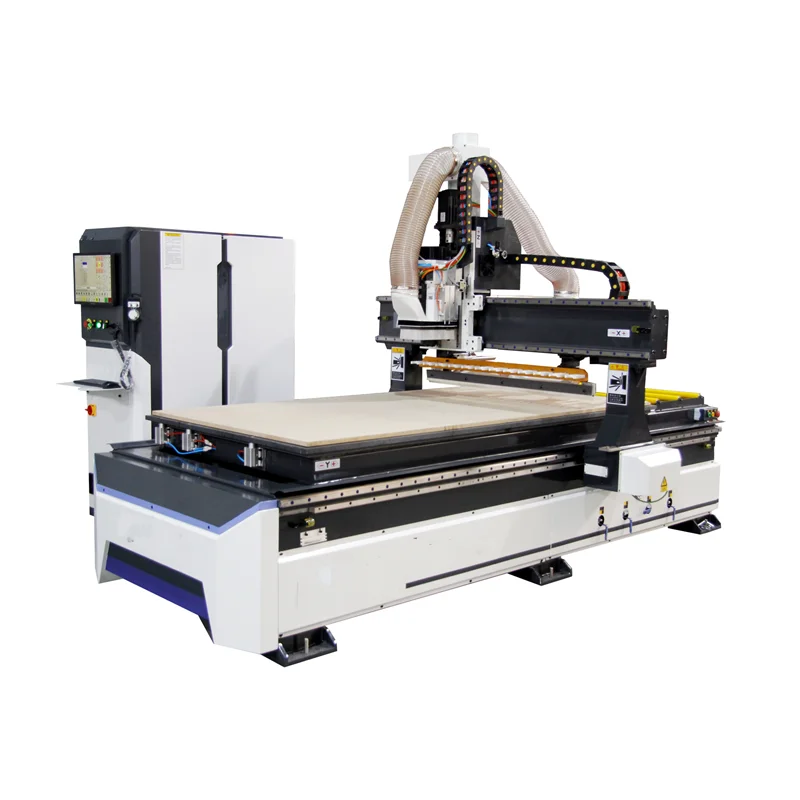

Nesting ATC cnc router
Parts Details

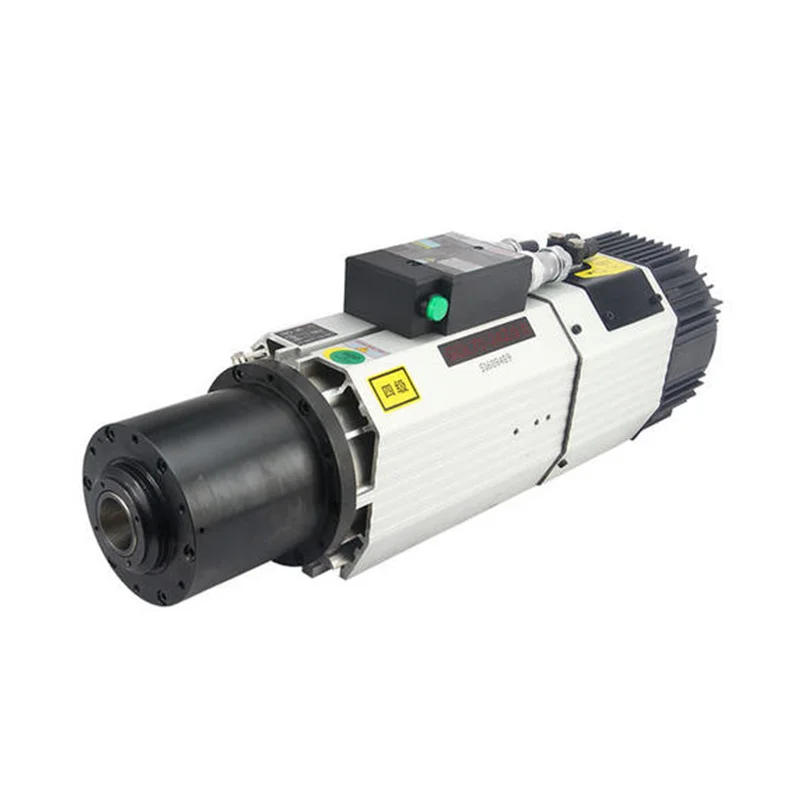

Spindle
2, fast auto tool changing speed
3, longer life span
4, stable performance

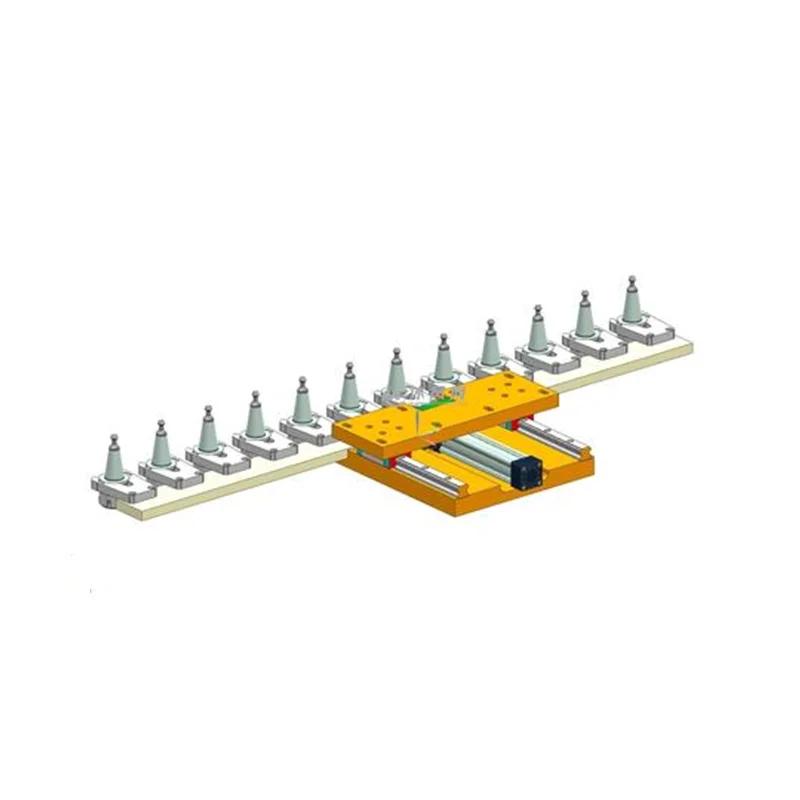

ATC Tools:
2, 12 auto tool changing tools, can meet complicated design of cabinet door, panel furniture design making

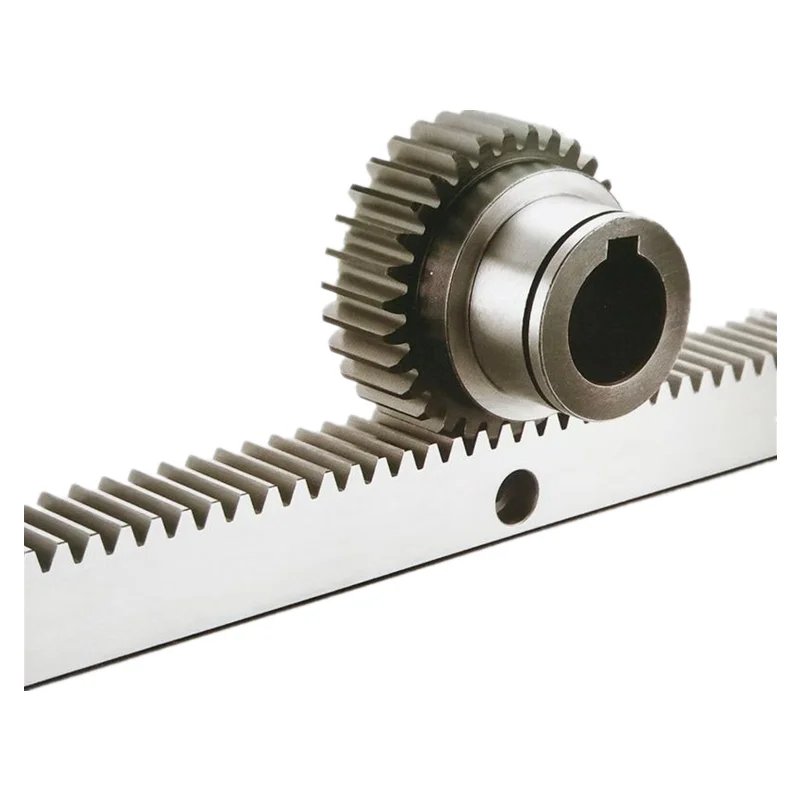

Transmission system
1,M2.0 Taiwan brand helical rack pinion, faster speed than M1.5 rack pinion
2. more stable performance

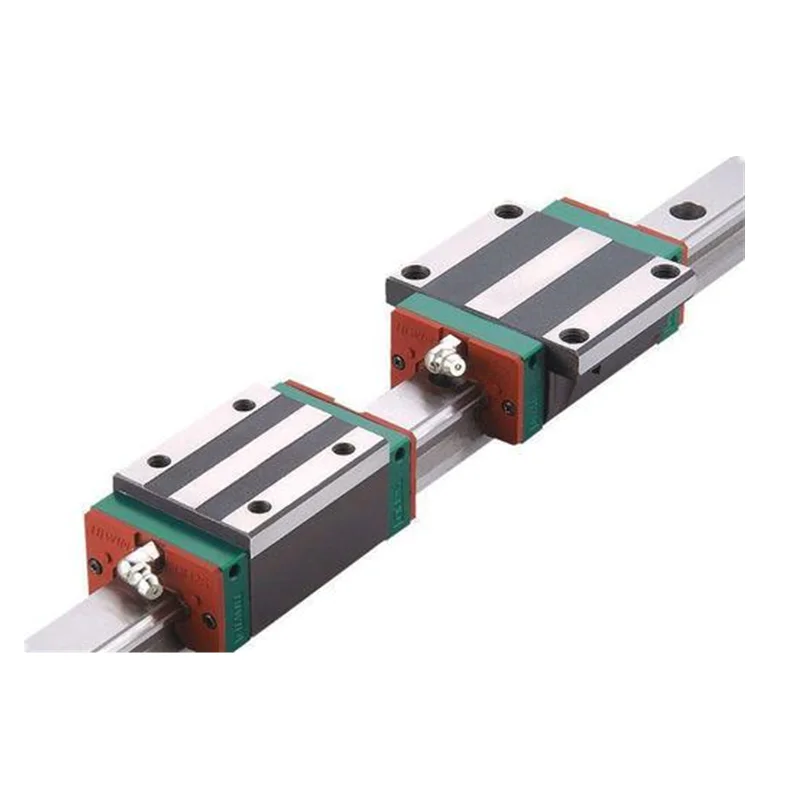

Guiding system
Taiwan 30 size
more stable

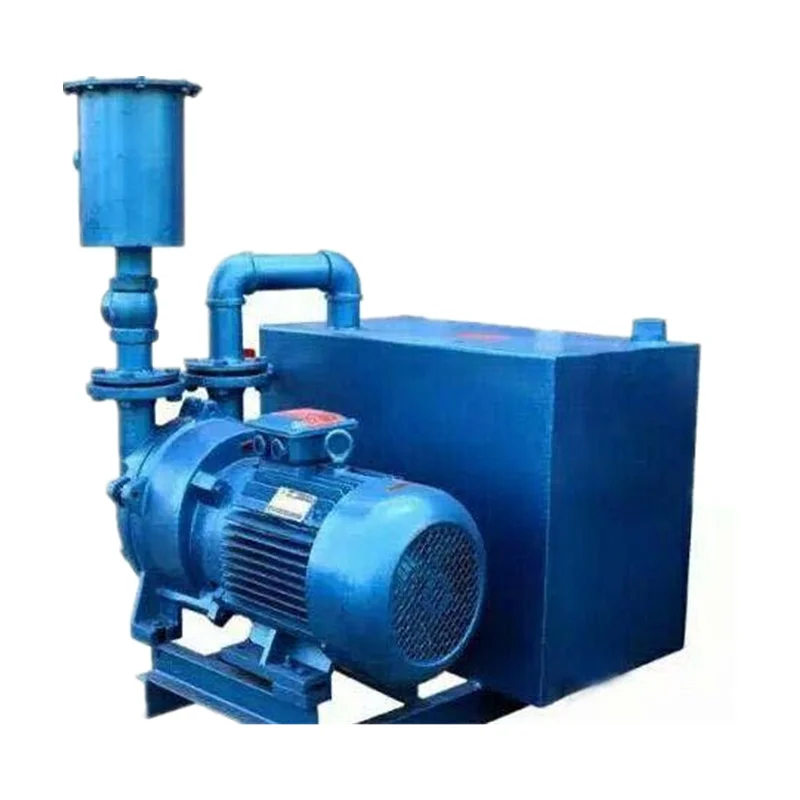

Vacuum pump
7.5KW
water type

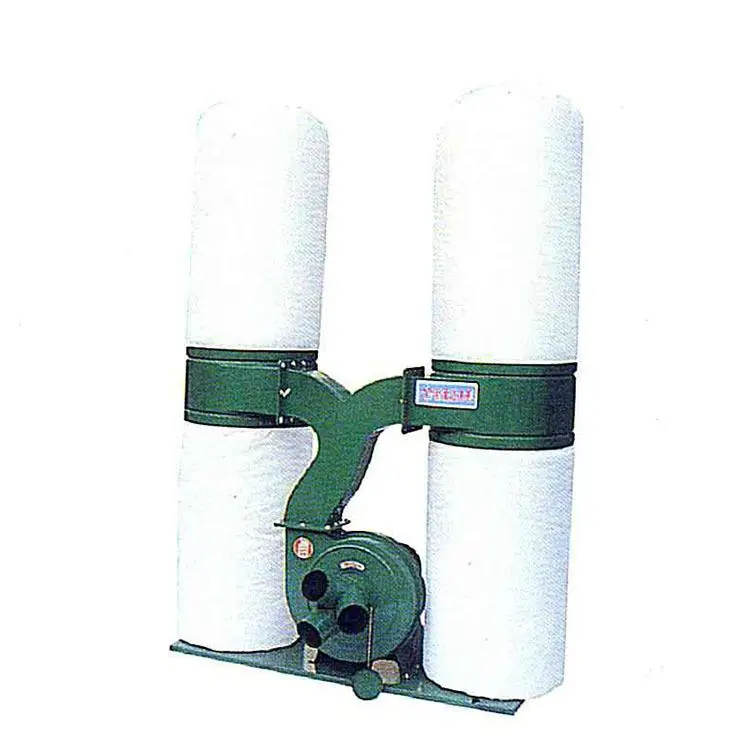

Dust collector
5.5KW power
double bags

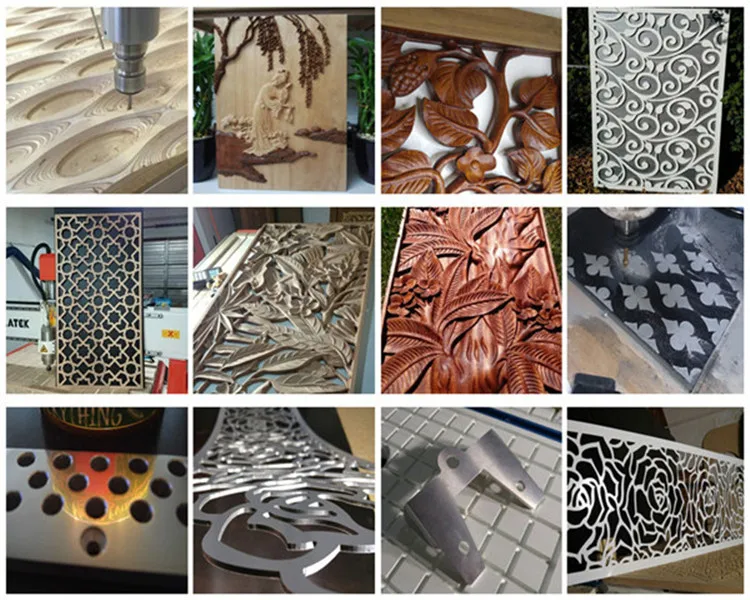

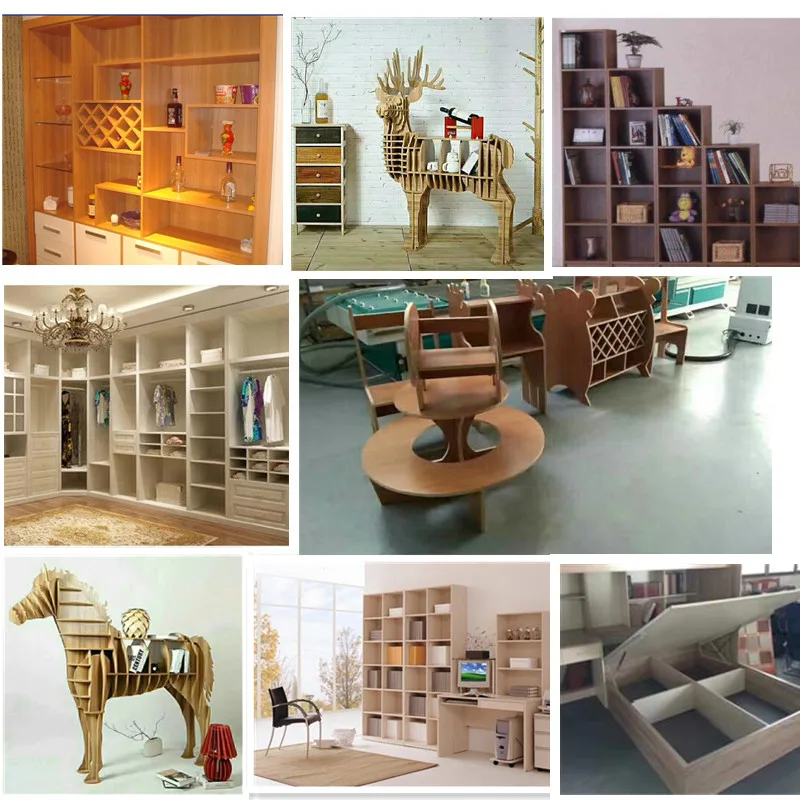

Samples Made By 1325 Woodworking CNC Router Machine

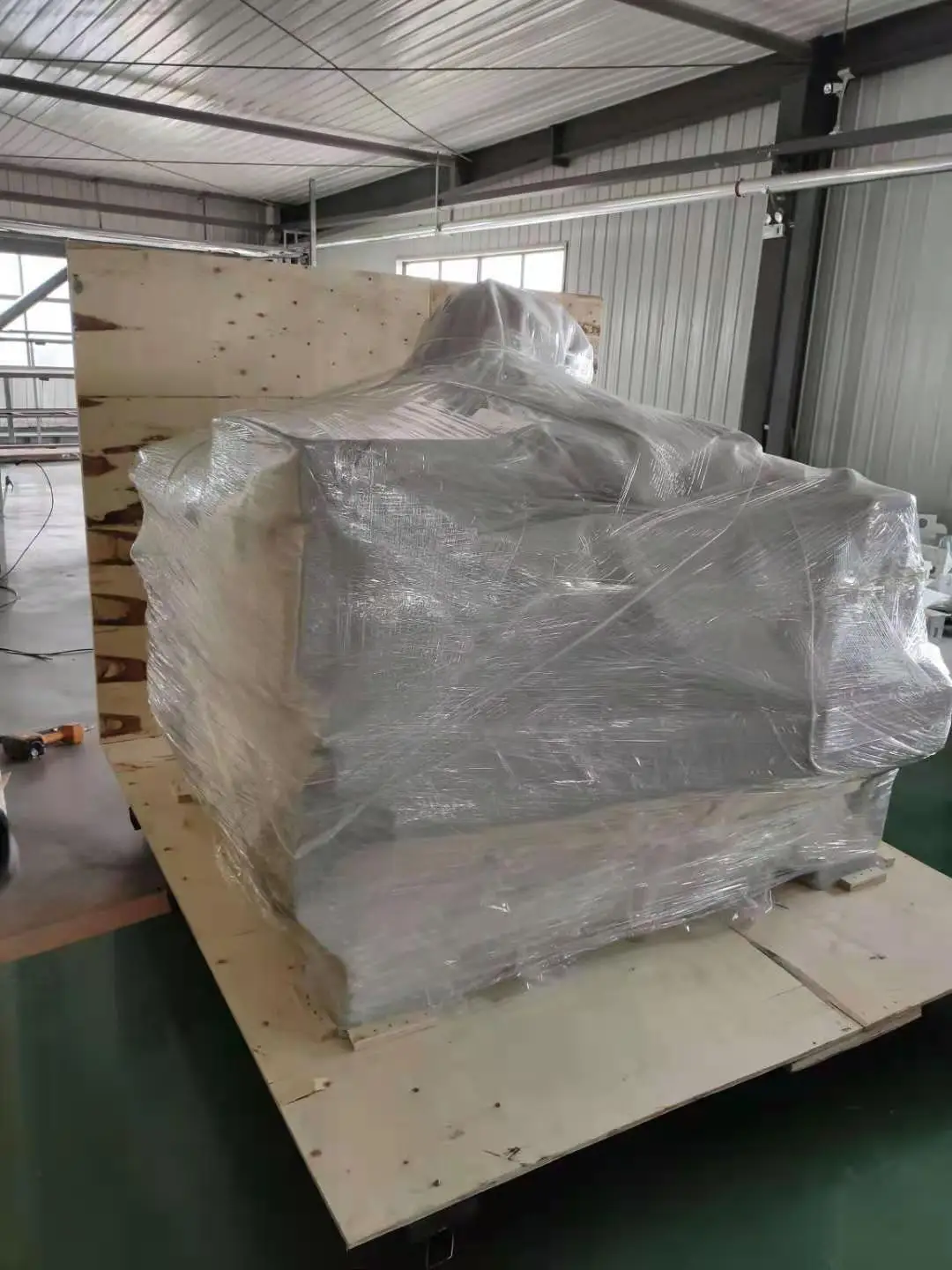

Product packaging
For LCL shipment, such as buying one set cnc router or laser machine, we will use seaworthy fumigation-free plywood case

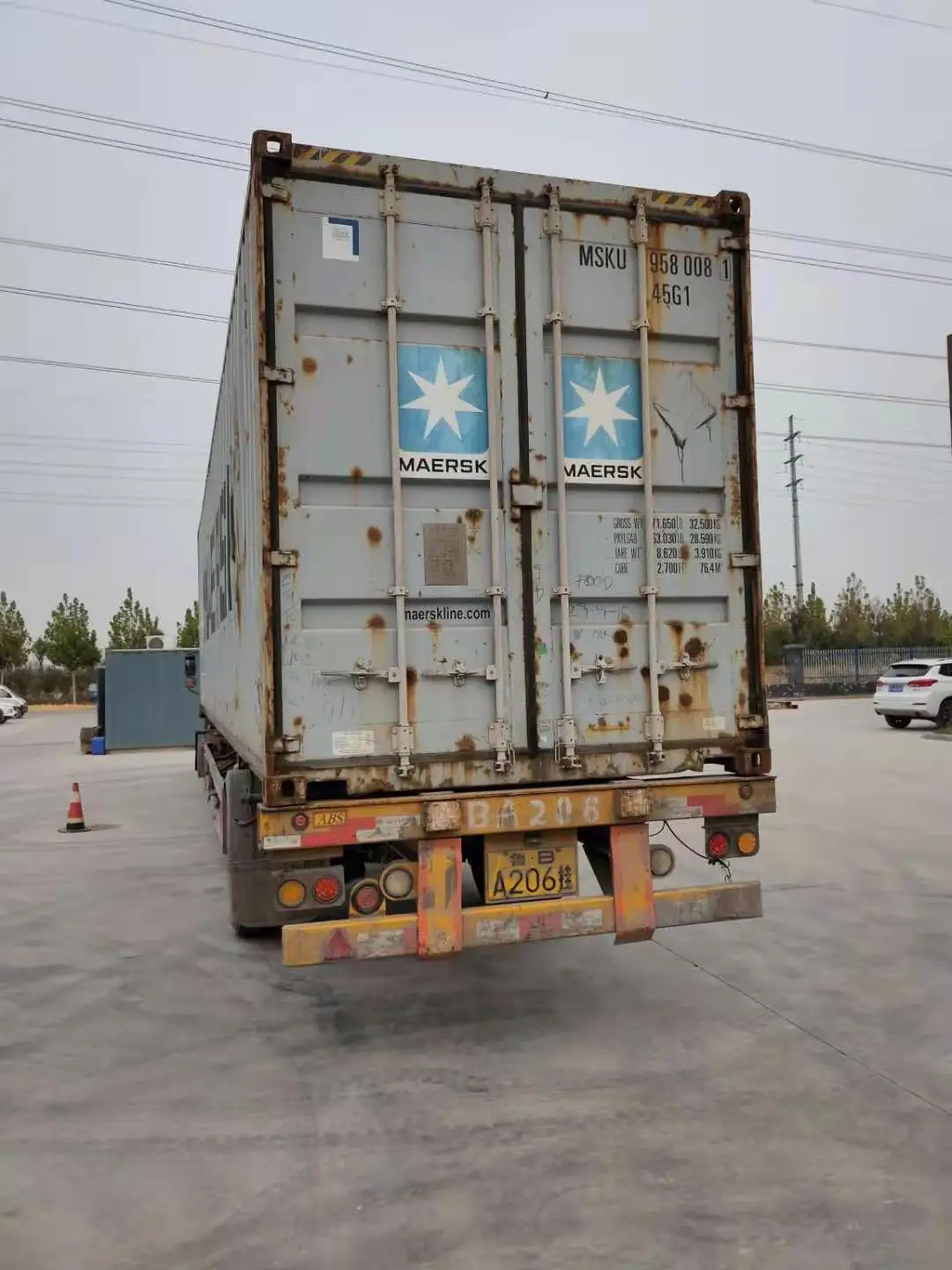

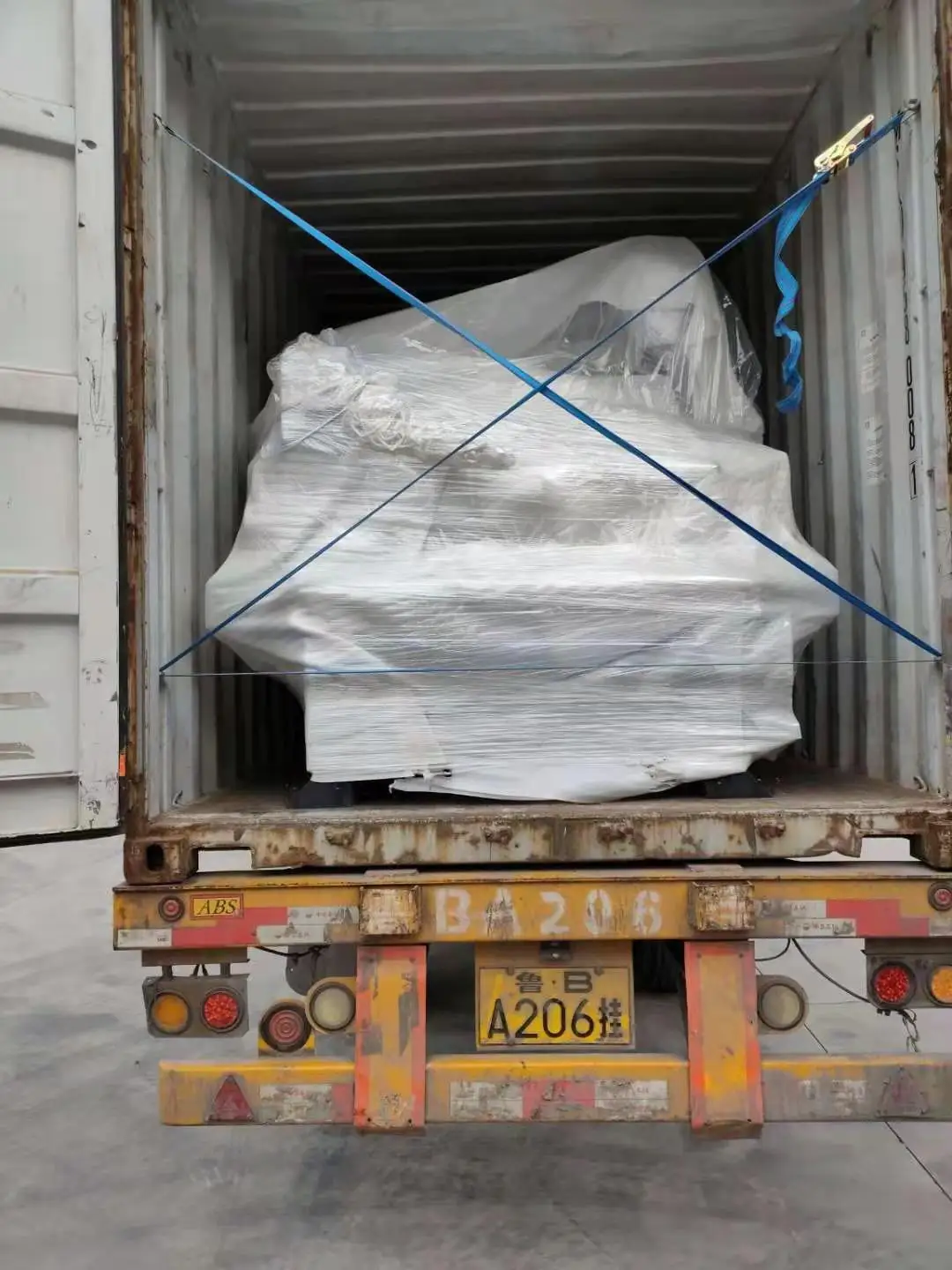

For FCL shipment, such as buying 6-9 sets wood cnc router or plasma cutting machine, we will use soft package, we use film and pearl cotton to pack the machine, sometimes will unassemble machine gantry, motor etc in order to load more sets into one container to help customer save shipping cost of each woodworking machine.
FAQ
Q 1. How many days can I expect the machine?
A 1: For fiber laser marking machine, if with standard device, its ready to ship. Other kind of cnc wood machine and laser machines delivery time is about 20-30 days according to quantity and special device request
Q 2: How many years warranty can I get?
A 2: We provide 3 years warranty for Fiber Laser Machine,Provide 1 year warranty for Other cnc and laser machine such as wood cnc router, stone cnc router, foam cutting machine, flatbed cutter etc.
Q 3: How about Training and after sale service?
A 3: WE have operation and installation video for woodworking machine, metal fiber laser marking machine, foam machine, stone machine,co2 laser cutting machine etc. WE provide 24 online support for software operation, problem setting etc.
Q 4: Whats will be transportation way for the machines?
A 4: for small machines such as fiber laser marking machine, handheld laser welding machine, 3030 desktop cnc router, we can ship it through air, only take 5-7 days to arrive customer's place. For big machines such as fiber laser cutting machine, flatbed cutting machine, hot wire foam cutter, atc cnc router, we will use sea transportation.
Q 5: What will be the package for cnc and laser machine?
A 5: For LCL shipment based on buy 1 set or 2 set, we will use fumigation-free plywood case. For mass purchase such as 6-20 sets panel saw, 6-9 sets 1325 cnc router,we will use film pearl cotton package, and ship by 40'HQ container.
Company Profile
Jinan Wise CNC Laser Machinery Co., Ltd, is specialized manufacturer of woodworking machine, edge banding machine, metal cutting machine, foam cutting milling machine, flatbed cutting machine, stone machine, co2 laser machine. Located in Jinan city, Shandong province, China. we keep R&D new-tech machine for many fields such as panel furniture, wood door, cabinet, stone carving, metal cutting, architectural model, advertising industry, crafts and arts, educational institution, laser marking industry etc.
