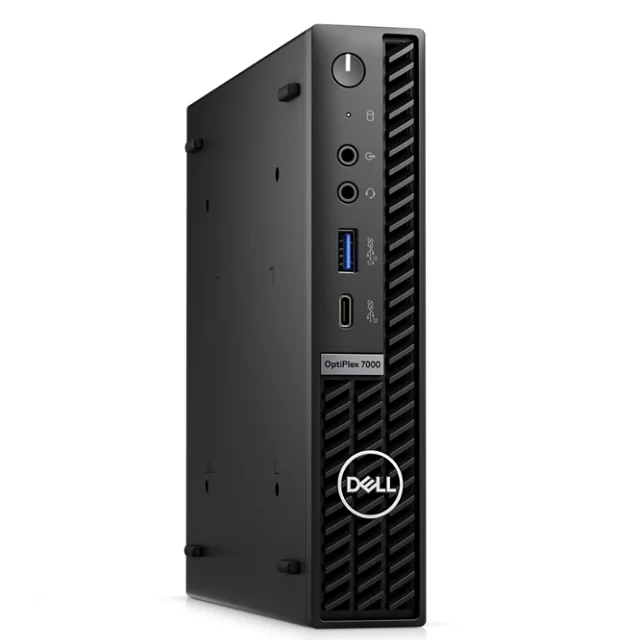

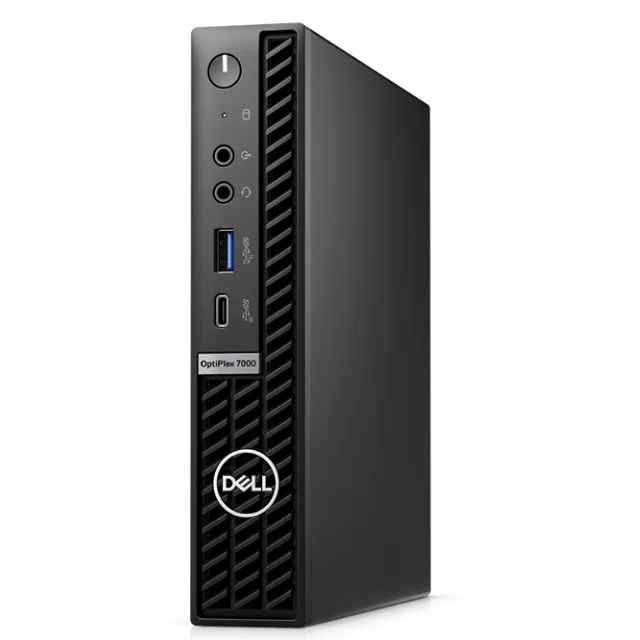

OptiPlex 7000 Micro
|
|
|
PROCESSOR OPTIONS
|
12th Generation Core™ i3-12100, 12MB cache, 4 cores, 8 threads, 3.30GHz to 4.30GHz, 60W
12th Generation Core™ i3-12100T, 12MB cache, 4 cores, 8 threads, 2.20GHz to 4.10GHz, 35W 12th Generation Core™ i3-12300, 12MB cache, 4 cores, 8 threads, 3.50GHz to 4.40GHz, 60W 12th Generation Core™ i3-12300T, 12MB cache, 4 cores, 8 threads, 2.30GHz to 4.20GHz, 35W 12th Generation Core™ i5-12400, 18MB cache, 6 cores, 12 threads, 2.50GHz to 4.40GHz, 65W 12th Generation Core™ i5-12400T, 18MB cache, 6 cores, 12 threads, 1.80GHz to 4.20GHz, 35W 12th Generation Core™ i5-12500 vPro®, 18MB cache, 6 cores, 12 threads, 3.00GHz to 4.60GHz, 65W 12th Generation Core™ i5-12500T vPro®, 18MB cache, 6 cores, 12 threads, 2.00GHz to 4.40GHz, 35W 12th Generation Core™ i5-12600 vPro®, 18MB cache, 6 cores, 12 threads, 3.30GHz to 4.80GHz, 65W 12th Generation Core™ i5-12600T vPro®, 18MB cache, 6 cores, 12 threads, 2.10GHz to 4.60GHz, 35W 12th Generation Core™ i7-12700 vPro®, 25MB cache, 12 cores, 20 threads, 2.10GHz to 4.90GHz, 65W 12th Generation Core™ i7-12700T vPro®, 25MB cache, 12 cores, 20 threads, 1.40GHz to 4.70GHz, 35W 12th Generation Core™ i9-12900 vPro®, 30MB cache, 16 cores, 24 threads, 2.40GHz to 5.10GHz, 65W 12th Generation Core™ i9-12900T vPro®, 30MB cache, 16 cores, 24 threads, 1.40GHz to 4.90GHz, 35W |
|
MEMORY OPTIONS
|
4GB, 1 x 4GB, DDR4, 3200MHz, single-channel
8GB, 1 x 8GB, DDR4, 3200MHz, single-channel 8GB, 2 x 4GB, DDR4, 3200MHz, dual-channel 16GB, 1 x 16GB, DDR4, 3200MHz, single-channel 16GB, 2 x 8GB, DDR4, 3200MHz, dual-channel 32GB, 1 x 32GB, DDR4, 3200MHz, single-channel 32GB, 2 x 16GB, DDR4, 3200MHz, dual-channel 64GB, 2 x 32GB, DDR4, 3200MHz, dual-channel 8GB, 1 x 8GB, DDR5, 4800MHz, single-channel 16GB, 1 x 16GB, DDR5, 4800MHz, single-channel 16GB, 2 x 8GB, DDR5, 4800MHz, dual-channel 32GB, 1 x 32GB, DDR5, 4800MHz, single-channel 32GB, 2 x 16GB, DDR5, 4800MHz, dual-channel 64GB, 2 x 32GB, DDR5, 4800MHz, dual-channel |
|
PRIMARY HARD DISK DRIVES
|
M.2 2230, 256GB, PCIe NVMe Gen3 x4, SSD, Class 35
M.2 2230, 512GB, PCIe NVMe Gen3 x4, SSD, Class 35 M.2 2230, 1TB, PCIe NVMe Gen3 x4, SSD, Class 35 M.2 2230, 256GB, PCIe NVMe Gen3 x4, SSD, Class 35, Self-Encrypting, Opal 2.0, FIPS M.2 2280, 512GB, PCIe NVMe Gen4 x4, SSD, Class 40 M.2 2280, 1TB, PCIe NVMe Gen4 x4, SSD, Class 40 M.2 2280, 2TB, PCIe NVMe Gen4 x4, SSD, Class 40 M.2 2280, 512GB, PCIe NVMe Gen3 x4, SSD, Class 40, Self-Encrypting, Opal 2.0, FIPS M.2 2280, 1TB, PCIe NVMe Gen3 x4, SSD, Class 40, Self-Encrypting, Opal 2.0, FIPS |
|
GRAPHICS
|
UHD Graphics 730 with 12th Generation Core™ i3-12100, i3-12300, and i5-12400 processors
UHD Graphics 770 with 12th Generation Core™ i5-12500, i5-12600, i7-12700, and i9-12900 processors RX 640, 4GB GDDR5, low profile Radeon 550, 2GB GDDR5, low profile Radeon™ 540, 1GB GDDR5, low profile |
|
PORTS
|
Front:
USB 3.2 Gen 2 Type-A port with PowerShare USB 3.2 Gen 2x2 Type-C® port Universal audio jack Re-tasking line out/line in audio port Rear (For 35W): RJ45 Ethernet port Optional video port (DisplayPort 1.4/ VGA/USB 3.2 Gen 2 Type-C® port with DisplayPort Alt Mode) USB 3.2 Gen 1 Type-A port USB 3.2 Gen 1 Type-A port with Smart Power On (2) USB 3.2 Gen 2 Type-A ports (2) DisplayPort 1.4a (HBR2) Power adapter port Rear (For 65W): RJ45 Ethernet port Optional video port DisplayPort 1.4/ VGA/USB 3.2 Gen 2 Type-C® port with DisplayPort Alt Mode) USB 3.2 Gen 1 Type-A port with Smart Power On (2) USB 3.2 Gen 2 Type-A ports (3) DisplayPort 1.4a (HBR2) Power adapter port |
|
SLOTS
|
M.2 2230 slot (2) M.2 2230/2280 slot for SSD Gen4 x4
Kensington security-cable slot Padlock ring |
|
POWER OPTIONS
|
90W AC adapter, 4.5mm barrel for 35W
130W AC adapter, 4.5mm barrel for 35W 180W AC adapter, 7.4mm barrel for 65W |
