Acrylic/ Mdf/ Pvc/ Metal/ Furniture/ Door Making Processing Cutting Engraving Machine 1212 Wood Carving Cnc Router
Craftsman

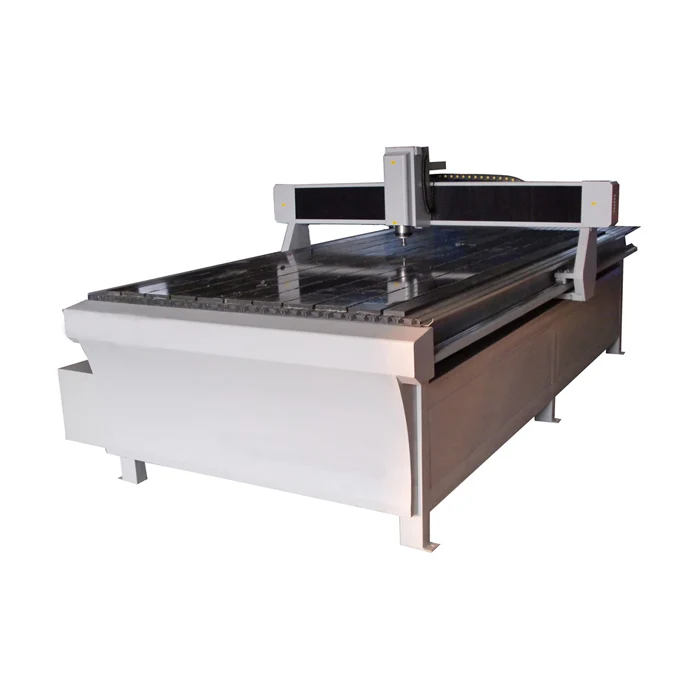

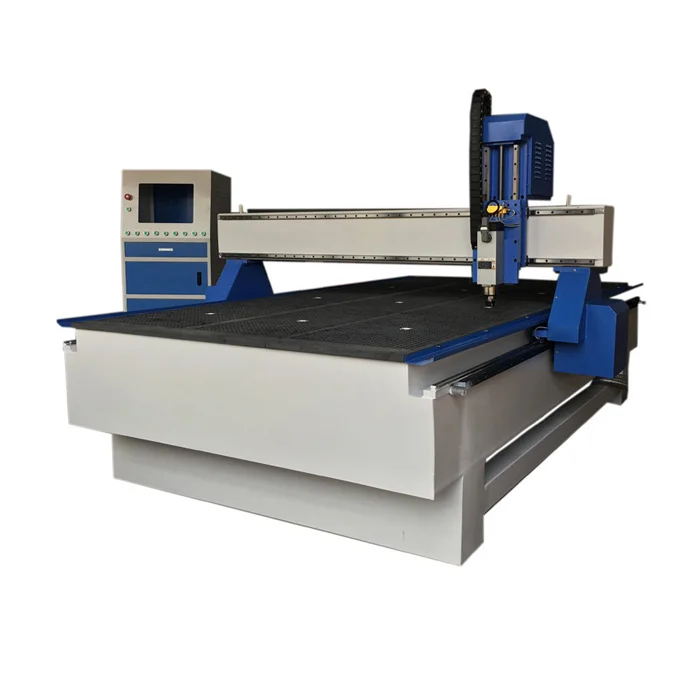

Acrylic/ MDF/ PVC/ Metal/ Furniture/ Door making processing cutting engraving machine 1212 wood carving cnc router
Acrylic/ MDF/ PVC/ Metal/ Furniture/ Door making processing cutting engraving machine 1212 wood carving cnc router
Advantages Description
1. Lathe bed use all-welded structure, strong reasonable, simple operation, and durable.
2. Powerful stepper motor driver, imported linear guide rails, running smoothly, high accuracy, long time service.
3. Gear wheel/ rack transmission, high precision, could engrave 1mm letter clearly.
4. Air cooling spindle /(Italy HSD Spindle optional) apply to long time processing of wood products.
5. The advanced professional control system compatible with many instructionformat, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
6. Comply with CE certification.
Technical Parameter
| Model | XQ-1325M /1212M/2030M |
| XY working area | 1300*2500mm/1200X1200MM/2000X3000MM |
| Z working area | 200mm |
| Table Size | 1200*1500mm |
| Working mode | Spindle |
| Spindle Collect Type | ER 20 |
| Cutters Diameter | 3.175mm, 4mm, 6mm, 8mm, 10mm, 12.7mm |
| Voltage | AC 220v 50/60hz ,Single Phase |
| AC 380v, 50/60hz, Three Phase | |
| Processing precision | 0.05mm |
| Repositioning precision | 0.02mm |
| Spindle Speed | 0-24000rpm/Min |
| Empty Traveling Speed | 0-25000mm/Min |
| Engraving Speed | 0-12000mm/Min |

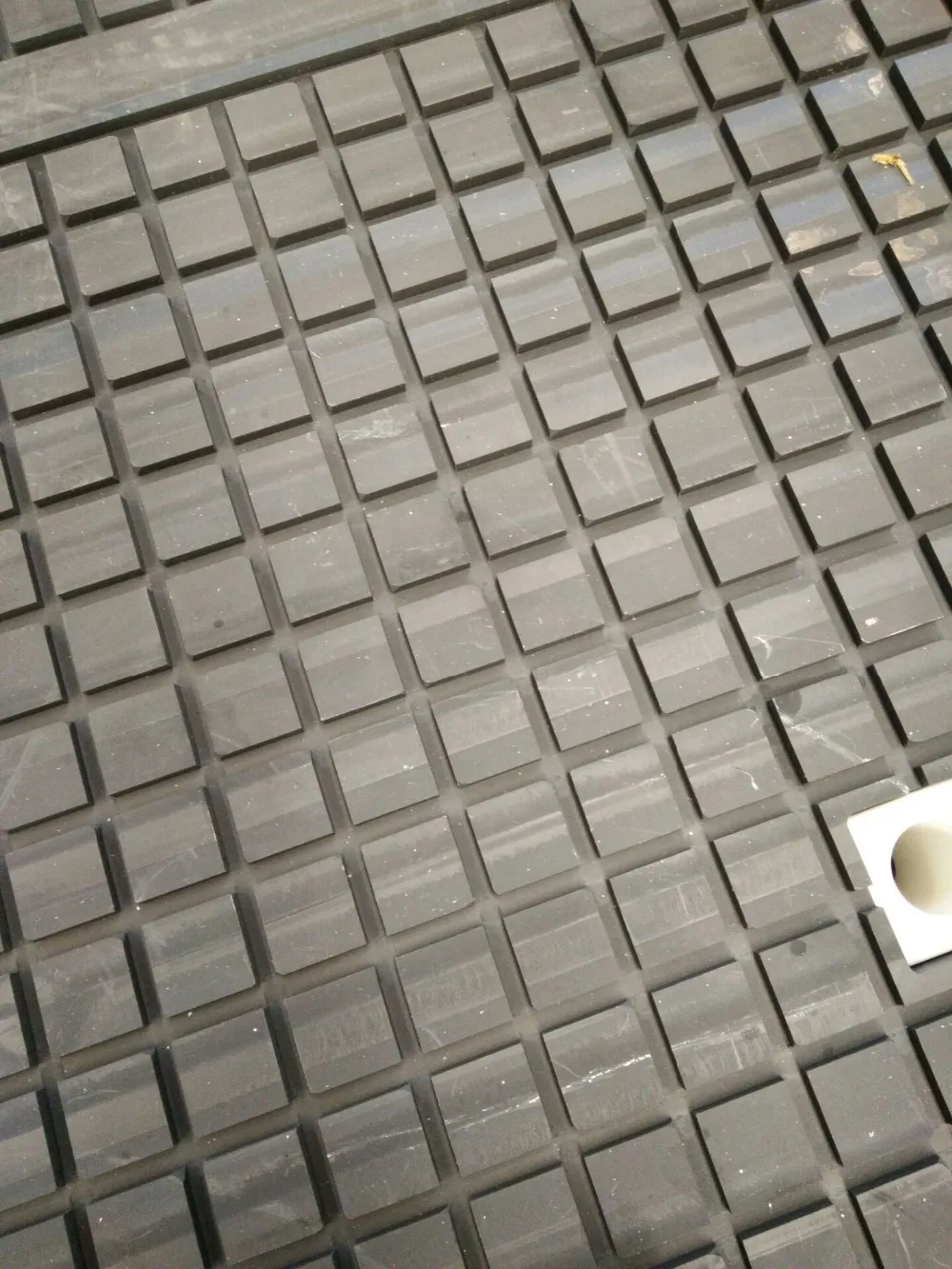

| Work Table structure | Aluminum alloy table |
| XY structure | Ball screw |
| Transmission | X,Y axis adopt rack, Z axis is ball screw |
| Max Moving Speed | 25m/min |
| Max, working speed | 12m/min |
| Drive System | Stepper |
| Control system | DSP/PCI NCStudio Control System |
| Software Support | Type3, Ucancam, Artcam |
| Operation command | G Code, *.U00, *.mmg, *.plt/HPGL/NC |
| Operating System | Computer |
| Operation circumstance | Temperature: 0°C~45°C |
| Relative humidity: 30%~75% | |

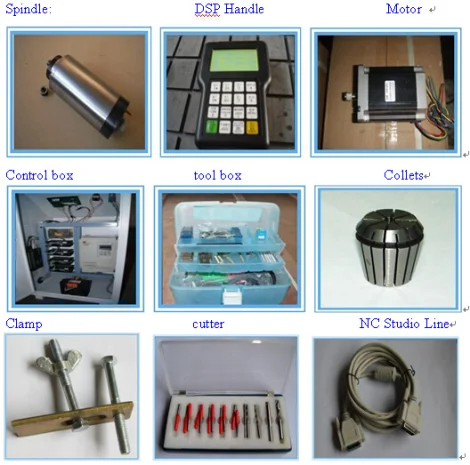

| Accessories | Water Pump, Cutters, Power Line, Usb Line, Fixtures, User Manual, Operating / Installation Cds, Artcam Software, Collets, Spanners, Brush, Water Tank, Etc. |
Applicable industry and material
1. The furniture industry: cabinet doors, wooden doors, solid wood, panel, door and window furniture.
2. Decoration industry: screen, wave board, large wall hanging, advertising board, marking making.
3. Arts and crafts industry: it can engrave exquisite words and patterns on the manmade stone, wood, bamboo, marble, organic board, double.
Packaging
1.Our wooden case is after fumigation treatment.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The outmost is wooden case with fixed formwork.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Delivery Time
Within 10 working days after payment
Acrylic/ MDF/ PVC/ Metal/ Furniture/ Door making processing cutting engraving machine 1212 wood carving cnc router
Jinan Xieqi Mechanical Equipment Co.,Ltd.
Jinan Xieqi Mechanical Equipment Co., Ltd. is located in Licheng Zone of Jinan, Shandong, China. Our company has high quality Laser engraving and cutting machine,Laser marking machine ,CNC routers ,Dot peen marking machines ,Laser metal cutting machines and Plasma cutting machines. All Equipments products are now used by over 30,000 companies, schools and government offices,also has a wide market all over the world, such as the USA, England, France, Germany, Brazil, Turkey, Canada, Russia, India, Southeast Asia, the Middle East and so on.
The company’s management strictly comply with the international ISO9001 quality system. In order the ensure the product’s quality and prevent the substandard goods move into the next process, from the initial storage of raw materials to product leave the factory, the process need pass incoming inspection, process inspection and final inspection. Within controlling the producing process efficiently, we can control the products’ quality efficiently, make sure that all manufactured products are qualified.
Acrylic/ MDF/ PVC/ Metal/ Furniture/ Door making processing cutting engraving machine 1212 wood carving cnc router
Other Series
| XQ hot selling fiber laser marking machine |
|
| XQ hot selling 1390 co2 laser machine |
|
| XQ hot selling plasma cutting machine |
|
Acrylic/ MDF/ PVC/ Metal/ Furniture/ Door making processing cutting engraving machine 1212 wood carving cnc router
XQ Service Support
1) 24 Hours online service. 2) 2 years warranty for the whole machine except for wearing parts. 3) Engineers available to service machinery overseas and also remote assistance. 4) Inquiry and consulting support. 5) View our Factory. 6) Engineers available to service machinery overseas. 8) XQ Mechanical Equipment Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. |
(1) This is the first time I use this kind of machine, is it easy operate? Online service (remote computer assistance Teamveiwer or similar) possibility?
There are english manual or guide video that show how to use machine. If there is still have any question, we can talk from phone or skype. Yes,free remote assistance. |
(2)Can you recommend a MACHINE to me,thanks?
Yes, In order to recommand you the suitable machine, please tell me your special requirements (including size,working area, process materials thickness etc...) |
(3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
|
