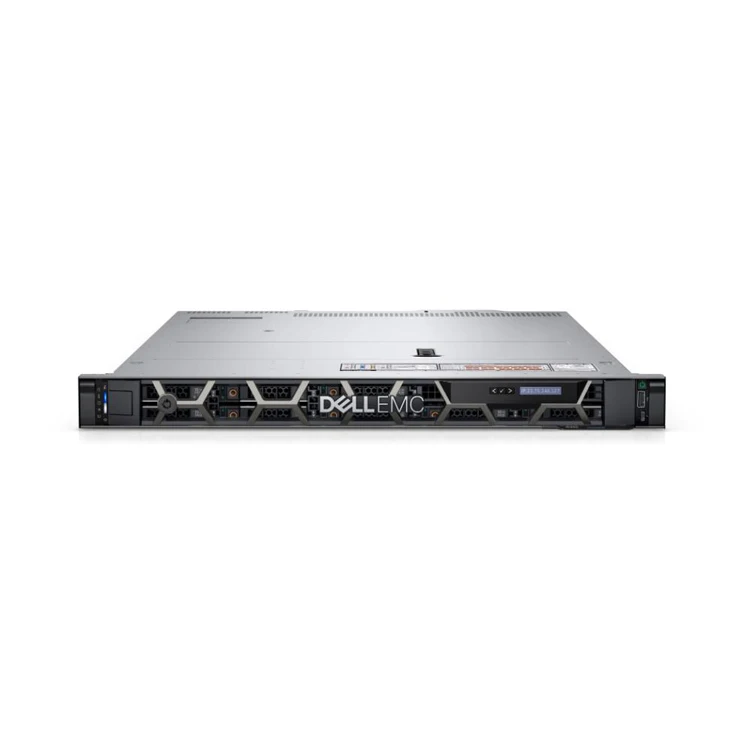

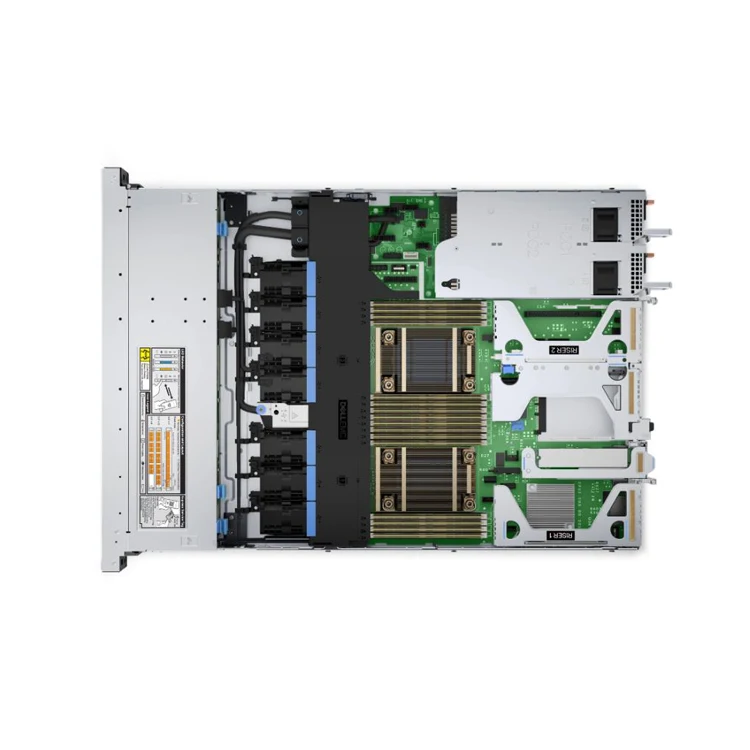

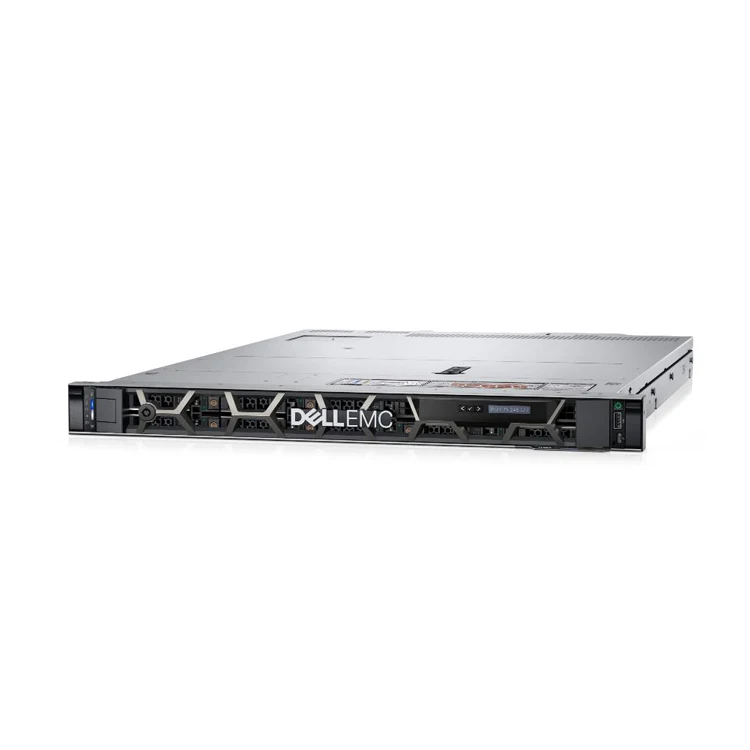

Base | PowerEdge R450 Server |
Form factor | 1U |
Processor | Intel® Xeon® Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666 |
Memory | 8GB 16GB 32GB RDIMM, 3200MT/s, dual rank |
Drive bays | Up to 4 x 3.5" SAS/SATA (HDD/SSD), up to 16 TB |
Up to 8 x 2.5" SAS/SATA (HDD/SSD), up to 7.68 TB | |
Storage Controllers | Internal controllers: PERC H345, PERC H745, PERC H755, HBA355i |
Power Supplies | 1100 W DC -48–(-60) V |
800 W Platinum AC/240 V HVDC | |
600 W Platinum AC/240 V HVDC | |
Embedded management | iDRAC9 with Lifecycle Controller |
iDRAC Direct | |
iDRAC RESTful API with Redfish | |
Bezel | Optional security bezel |
I/O & Ports | Networking Options: |
2x 1 GbE LOM and 1x OCP 3.0 | |
Front ports: 1x Dedicated iDRAC Direct micro-USB Port 1x USB 3.0 Port 1x VGA Port | |

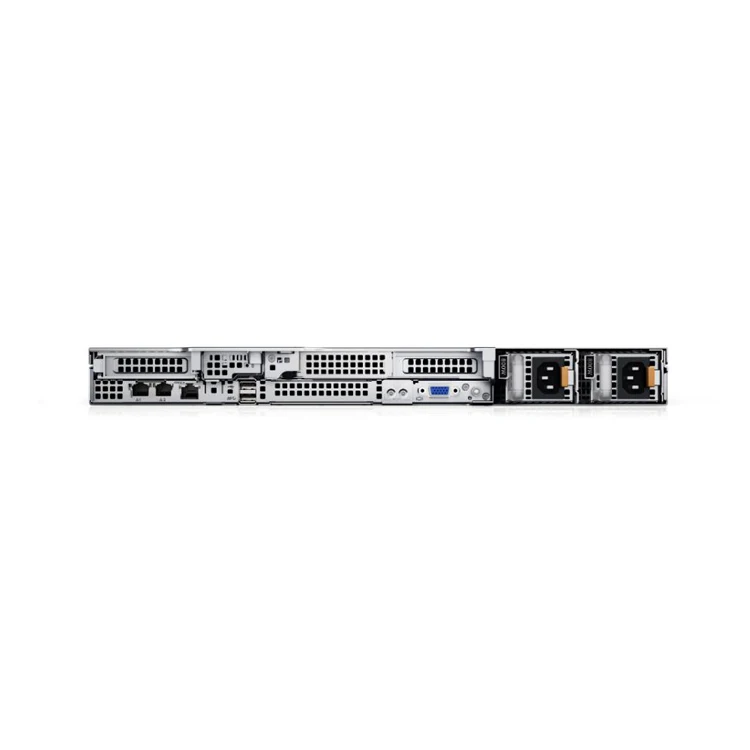

Rear ports: 1x USB 2.0 Port 1x Serial Port (Optional) 1 USB 3.0 port 2 Ethernet ports 1 VGA port | |
PCIe:2 PCIe 4.0 slots | |
Optional LCD bezel or safety bezel | |
Built-in Ports:1 USB 3.0 port | |
Warranty | 3 Years |
