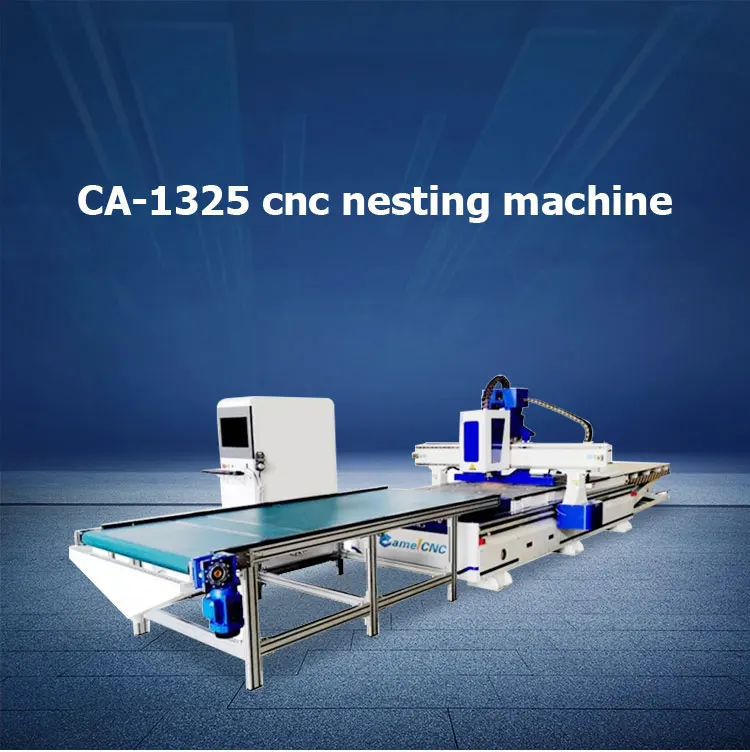

Hot Sale CA-1325 Fully Automatic Auto Loading and Unloading Machine for Furniture Cabinet Making / Nesting CNC Router
1.Heavy steel welding bed structure and cast iron gantry makes machine with very long working life and high precision.(Random error: 0.01MM/200MM)
2.Professional Taiwan LNC control system makes machine suitable for complicated processes such as panel furniture line, cabinet, wood door and sliding door. Support power outage memory operating continuously, the machine process runs more smoothly.
3.12 tools of auto tool changer magazine, no need to change knife manually which makes machine could finish various complex process rapidly and efficient processing.
4.Powerful Leadshine servo motor ensures high speed running of the machine.
5.High precision mechanical design, high quality machine accessories minimize failure rate.
6. 7.5kW vacuum pump, electric multi-partition vacuum adsorption platform, super absorptive power.
7. 5+4 original HQD drilling package. Drilling all kinds of holes fast and accurate.
X,Y,Z,Repositioning Positioning Accuracy |
±0.05mm |
Lathe Bed |
Strong lathe bed |
Gantry |
Steel structure gantry design |
Guide Rail |
Taiwan high precision square Rail with X,Y,Z axis |
XY Z Transmission |
Gear rack with X and Y axis Imported Ball Screw with Z axis |
Spindle Motor |
HQD 9kw Air cooling spindle special for tool changer |
Max. Speed |
0-45000mm/min |
Max. Working Speed |
0-25000mm/min |
Spindle Speed |
0-24000RPM |
Drive Mode |
Servo system |
Working Voltage |
AC220V/380V, 50/60Hz |
Command |
G Code, *uoo, *mmg, *plt,*tcn |
Inverter |
11KW Fuling inverter |
Control System |
Taiwan LNC 2200 control system |
Typeset Software |
JDpaint(can support any G-code software) |
Motor |
Pure Servo Motor |
Driver |
Servo Driver |
Tools cooling |
OIL sprayer pump |
Lathe Table |
Vacuum table with 8 sections +6 vacuum cups |
Vacuum Pump |
7.5KW VACUUM Pump |
Tool Magazine |
12pcs ISO30 tool holder |
Dust Collector |
5.5KW double bags |
Electricity cabinet |
Independent Cabinet |
Tool sensor |
TOOL SENSOR |
Collet |
ER32 |
X,Y Working Delicacy |
<0.01mm |
Software |
Ucancam, Artcam,JDpaint |

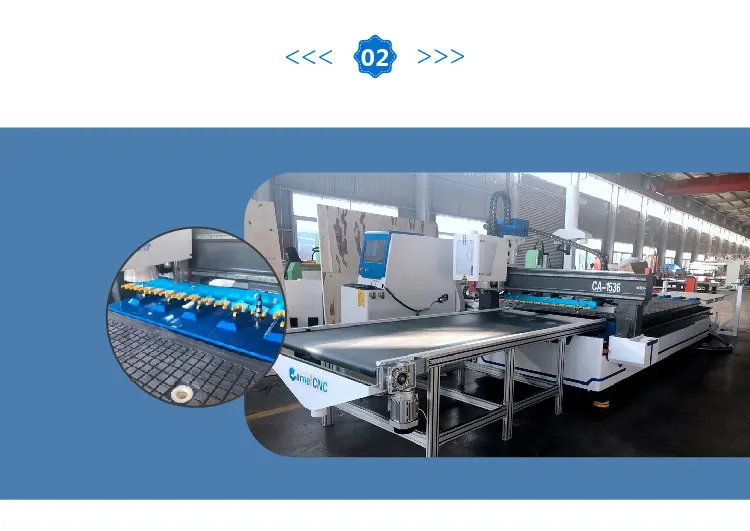

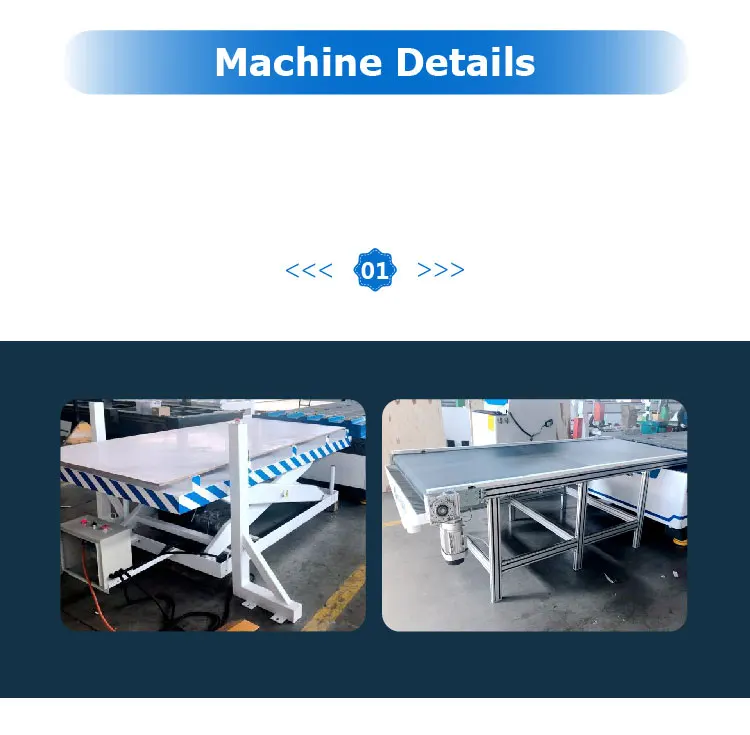

Auto loading and unloading platform.

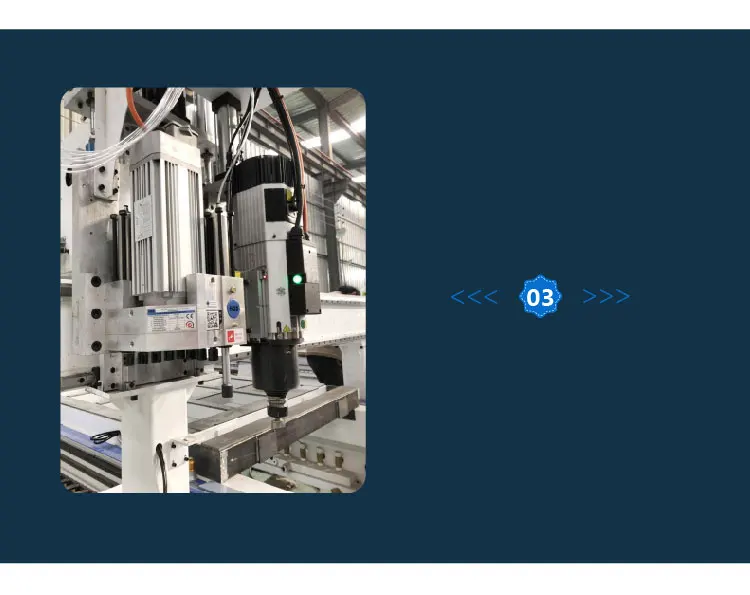

Movable linear auto tool change magazine.9kw HQD air cooled spindle with 5+4boring head which can do engraving and drilling efficiently.

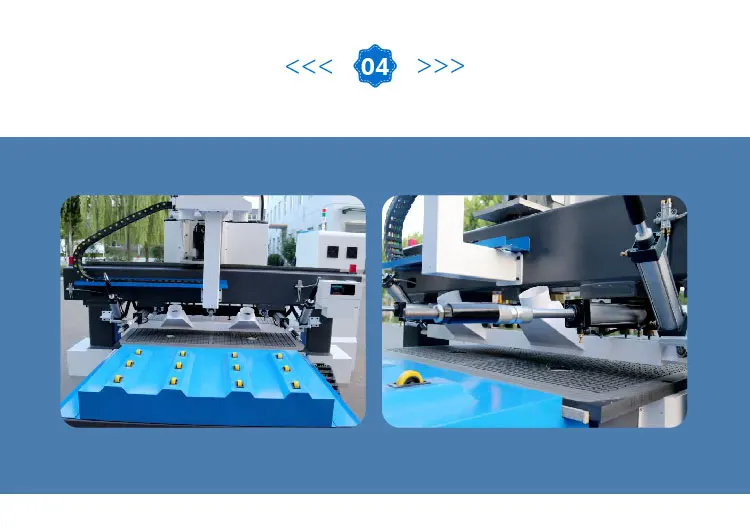

Automatically push finished product, pushing add secondary dust removal function.

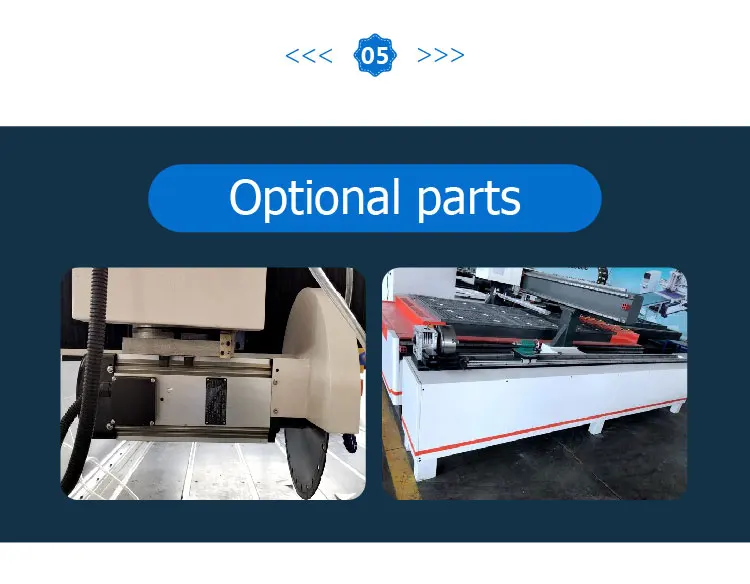

Saw Blade cutting Outside Rotary System
Package & Delivery:
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Questions:
Can i get some advice? or How can I get a free training?
Answer:
Click here, we will send the related details to you.
Service& Support:
CAMEL CNC provides three types of After-Sales service:Hot-line support,Email-support,and On-Site Machine installation.You could choose any type for your convenience details as below:
1 ,After receiving machine clients could install in guide of video and instructions provided.
2, lf you have any question during installation or operation,we will assist via Skype.Whatsapp.Teamviewer or other tools online until clients can operate machine skilfully.
3 ,If client needs,we could provide sample drawings for testing.
4 ,lf clients need on-site installation and training we will charge $200per day as well as round train costs for sending technician and local Accommodation or you could contact your sales manager for discussing details.
5, Our company will contact clients on machine working status feedback new requirements or good suggestions regularly and revert back to our company functional departments to improve our machines or service.
Jinan Camel CNC Machinery Co., Ltd. locates in Jinan City, Shandong Province where is the hometown of CNC machines, our company is an enterprise specializing in marketing and R&D of laser cutting machine, CNC router, plasma cutting machine, panel furniture production line, CNC wood lathe etc, especially on fiber laser cutting machine which used for metal industry, at present we have developed 10,000w, 20,000w, 30,000w big power for thick metal cutting, it with stable and rapid cutting performance which already got a leading position in the laser cutting machine industry.
Our people includes professional sales personnel, technical engineers, after-sales service personnel etc. our transport scope has completed air ,land and sea transport chain. Adhering to a professional, serious and responsible attitude, we insist on "only build superior machines". Now Camel CNC machines have obtained C E certification and S G S organization on-site inspection. Committing to providing customers with high quality products, competitive prices and excellent services.
For years’ development, our efforts bring us stable customers from home and abroad. Our machines have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. With superior performance to price ratio, high quality and perfect after-sales service, now our production facilities occupies China's forefront in development and expansion and will unceasingly develop and innovate with our full enthusiasm, to carry forward our brand and offer better products for our users.
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 years guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
