R410A Four Way Cassette Type Air Conditioner Environmentally Friendly Air-Conditioning
R410a Four Way Cassette Type Air Conditioner Environmentally Friendly Air-conditioning
(0)
Perkiraan Waktu Pengiriman:
3 hari
Dijual oleh:
Happy shopping
Happy shopping
Harga:
Rp1.750
/Pc
Pengembalian dana:
Produk Paling Laris
Product Paramenters

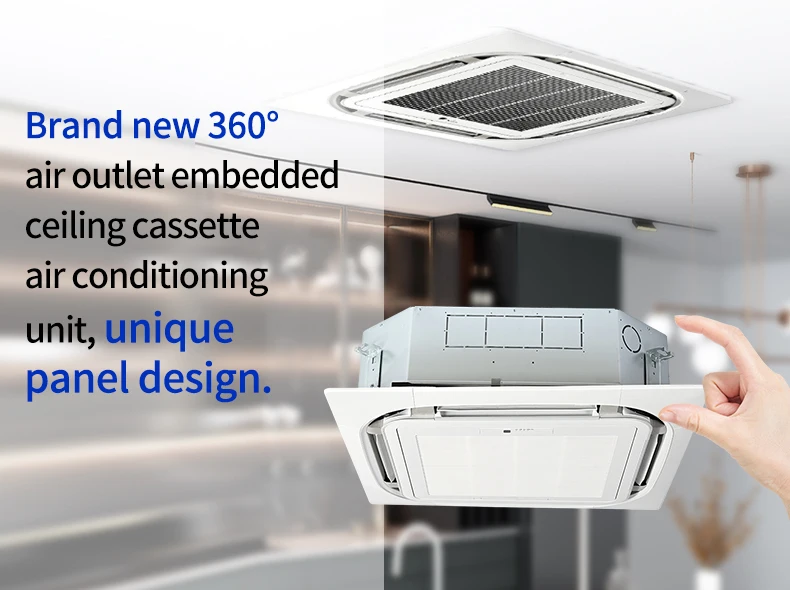

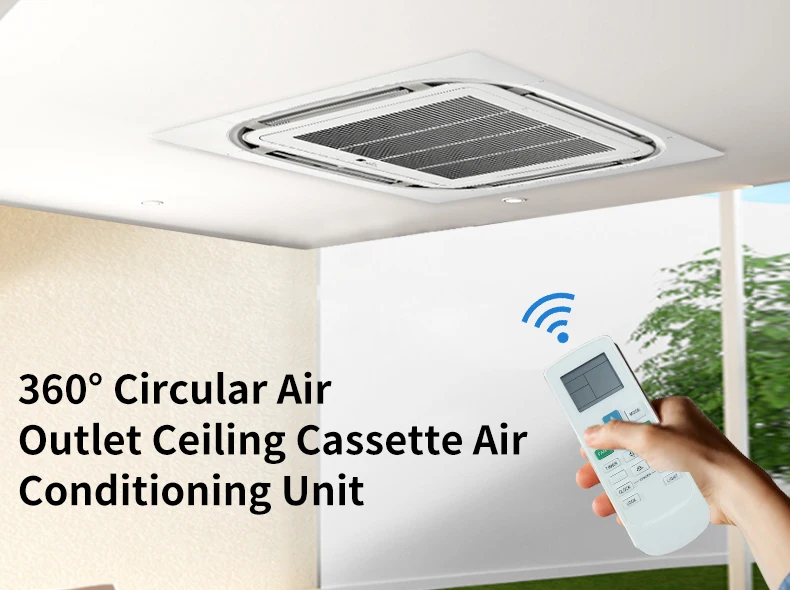

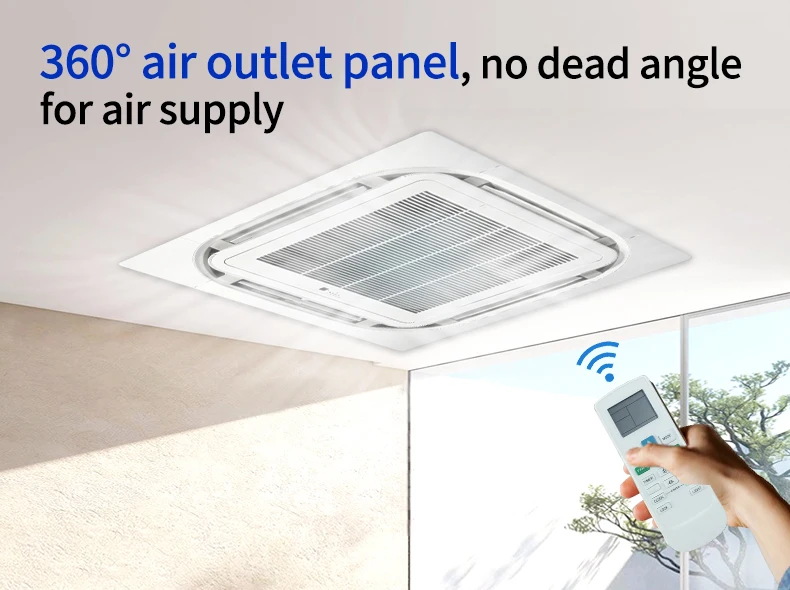

360° Circular Wind Outlet Ceiling Cassette AC Unit(R410A refrigerant)
Model | only Cooling | LF72Q3W -R1Y-Q303(C3) | LF72Q3W -SR1Y-Q303(C3) | LF120Q3W -SR1Y-Q305(C3) | LF140Q3W -SR1Y-Q305(C3) | |
Model | Cooling and Heating | KFR51Q3W/BPER1YW-Q303(E3) | RF72Q3W-ER1Y-Q303(C3) | RF72Q3W-ESR1Y-Q303(C3) | RF120Q3W-ESR1Y-Q305(C3) | RF140Q3W-ESR1Y-Q305(C3) |
Cooling Capacity(kw) | 5.1 | 7.2 | 7.2 | 12 | 14.2 | |
Heating Capacity(kw) | 5.8+1.5 | 7.8+2.0 | 7.8+2.0 | 13.2+3.0 | 16.0+3.0 | |
Power Supply | 220V～/50Hz | 220V～/50Hz | 380V 3N ～/50Hz | 380V 3N ～/50Hz | 380V 3N ～/50Hz | |
Refrigerant | R410A | R410A | R410A | R410A | R410A | |
Cooling Power(kw) | 1.7 | 2.45 | 2.45 | 4.1 | 5.0 | |
Heating Power(kw) | 1.7+1.5 | 2.35+2.0 | 2.35+2.0 | 3.95+3.0 | 4.85+3.0 | |
Max Power Input(kw) | 2.9+1.5 | 4.12+2.0 | 4.12+2.0 | 5.6+3.0 | 7.6+3.0 | |
Rated Air Flow(m3 /h) | 900 | 1200 | 1200 | 1800 | 1800 | |
Noise dB(A) | Indoor Unit | 33-41 | 40-48 | 40-48 | 42-52 | 43-53 |
Noise dB(A) | Outdoor Unit | 56 | 56 | 56 | 60 | 60 |
Indoor unit Dimension (L*W*H) | Body | 840*840*230 | 840*840*230 | 840*840*230 | 840*840*285 | 840*840*285 |
Indoor unit Dimension (L*W*H) | Panel | 950*950*50 | 950*950*50 | 950*950*50 | 950*950*50 | 950*950*50 |
Outdoor Unit Dimension (L*W*H) | 850*345*555 | 914*382*702 | 914*382*702 | 985*400*1335 | 985*400*1335 | |
Net Weight(kg) | Indoor Unit | 24 | 24(25) | 24(25) | 28(29) | 30.5(31.5) |
Net Weight(kg) | Outdoor Unit | 33 | 53(55) | 55(58) | 85(90) | 90(100) |
Net Weight(kg) | Panel | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Pipe(mm) | Liquid Pipe | Φ6.35 | Φ9.52 | Φ9.52 | Φ9.52 | Φ9.52 |
Pipe(mm) | Gas Pipe | Φ12.7 | Φ15.88 | Φ15.88 | Φ19.05 | Φ19.05 |
Max Pipe Length(m) | 20 | 20 | 20 | 20 | 20 | |
Power Cord No.*Wire Dia. (mm2) | Indoor Unit | / | 3*1.0(2.5) | 3*1.0(2.5) | 3(5)*1.0(2.5) | 3(5)*1.0(2.5) |
Power Cord No.*Wire Dia. (mm2) | Outdoor Unit | 3*4 | 3*2.5 | 5*1.5 | 5*2.5 | 5*2.5 |
Communication Line No.*Wire Dia. (mm2) | / | above 2*0.5mm2 twisted pair shielded wire | above 2*0.5mm2 twisted pair shielded wire | above 2*0.5mm2 twisted pair shielded wire | above 2*0.5mm2 twisted pair shielded wire | |
Water Pipe(mm) | Φ25 | Φ25 | Φ25 | Φ25 | Φ25 |

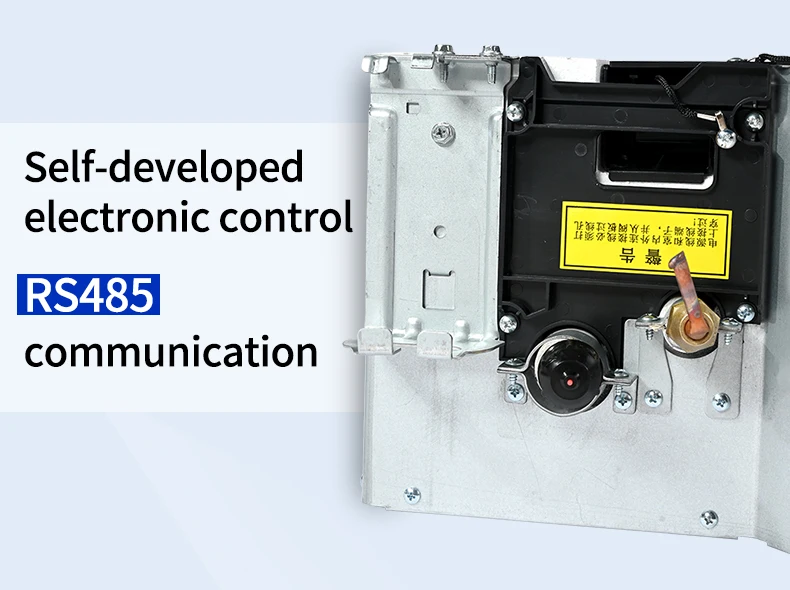

Note: 7.1kW and above models adopt RS485 communication control mode.
Note:
(1) Refrigeration test conditions: indoor return air dry bulb temperature 27℃, wet bulb temperature 19℃; outdoor dry bulb temperature 35℃, wet bulb temperature 24℃; heating test condition: indoor return air dry bulb temperature 20℃ , Wet bulb temperature 15℃; outdoor dry bulb temperature 7℃, wet bulb temperature 6℃;
(2) In the heating capacity and heating power consumption data, the data after the symbol "+" indicates the heating capacity and consumption power of the auxiliary electric heating device; the parameters in the brackets are the heating and cooling unit parameters; the single cooling unit has no heating parameters.
(3) Due to the continuous optimization of the product, the above parameters are for reference only. Subject to change without notice. The unit nameplate shall prevail. Please pay attention to the latest version.
(3) Due to the continuous optimization of the product, the above parameters are for reference only. Subject to change without notice. The unit nameplate shall prevail. Please pay attention to the latest version.
Products Description
Related Products
Company Profile
Our company has been committed to the central air-conditioning industry for 15+ years. Our main products are air source heat pumps, chillers, fan coils, air handling units, rooftop packaged ac units, etc., which can provide you with one-stop procurement services.
Our company has R&D laboratories and professional R&D personnel, which can fully meet your customized needs. Hope to cooperate with you to achieve a win-win situation.
Certifications
Our Customers
After Sales Service
Normal Process:
A. Delivery: After the goods are dispatched, send the relevant documents or courier number to the customer to remind the customer
that the goods have been dispatched. During the period, we will continue to track the logistics information, and notify the
customer at any time if there is an update. Before the delivery is about to be dispatched, the customer should be notified to pay
attention to the receipt.
B. Receipt: After receiving the goods, contact the customer to see if there is any damage during transportation; if the product is
damaged, please send a picture to the customer for verification. If it affects the use, you can negotiate the compensation amount
or send a new product replacement directly If some parts are damaged and are easily available locally, we can advise customers to
purchase and replace them locally, and we will bear the cost
C. Installation: Technical guidance, drawings or video guidance can be provided, and engineers can also be sent to install on site
if necessary.
D. Use: Free training for customers on, operation and use, daily maintenance and precautions
E. Warranty: machine warranty for 3-5 years, control warranty for 1 year, damage during the warranty period, free repairs, beyond
the warranty period, we can still provide repair services, we need to charge a fee as appropriate
that the goods have been dispatched. During the period, we will continue to track the logistics information, and notify the
customer at any time if there is an update. Before the delivery is about to be dispatched, the customer should be notified to pay
attention to the receipt.
B. Receipt: After receiving the goods, contact the customer to see if there is any damage during transportation; if the product is
damaged, please send a picture to the customer for verification. If it affects the use, you can negotiate the compensation amount
or send a new product replacement directly If some parts are damaged and are easily available locally, we can advise customers to
purchase and replace them locally, and we will bear the cost
C. Installation: Technical guidance, drawings or video guidance can be provided, and engineers can also be sent to install on site
if necessary.
D. Use: Free training for customers on, operation and use, daily maintenance and precautions
E. Warranty: machine warranty for 3-5 years, control warranty for 1 year, damage during the warranty period, free repairs, beyond
the warranty period, we can still provide repair services, we need to charge a fee as appropriate
