High Speed Automatic Furniture Frame Nail Making Machine
(0)
Perkiraan Waktu Pengiriman:
3 hari
Dijual oleh:
Aile Global Shopping
Aile Global Shopping
Harga:
Rp2.875
/Pc
Pengembalian dana:
Produk Paling Laris
Product Description
Specification
item | Z94-1C | Z94-2C | Z94-3C | Z94-4C | Z94-5C | Z94-6C | |
Max. dia. of nail | 2mm | 3mm | 1.8mm | 3mm | 3.5mm | 4mm | |
Min. dia. of nail | 0.8mm | 1.2mm | 3.8mm | 5mm | 6mm | 7mm | |
Max. Length of nail | 30mm | 50mm | 40mm | 70mm | 80mm | 150mm | |
Min. length of nail | 10mm | 25mm | 80mm | 100mm | 180mm | 240mm | |
Motor power | 1.5kw | 3kw | 3kw | 4kw | 5.5/7.5kw | 7.5kw | |
working speed | 450pcs/min | 340pcs/min | 320pcs/min | 220pcs/min | 200pcs/min | 120pcs/min | |
dimension | 1.3*1.1*1.2m | 1.8*1.2*1.3m | 1.9*1.3*1.3m | 2.3*1.5*1.4m | 2.6*1.5*1.5m | 2.9*1.6*1.7m | |
weight | 450kg | 880kg | 1180kg | 1950kg | 2150kg | 2700kg |
Company Profile

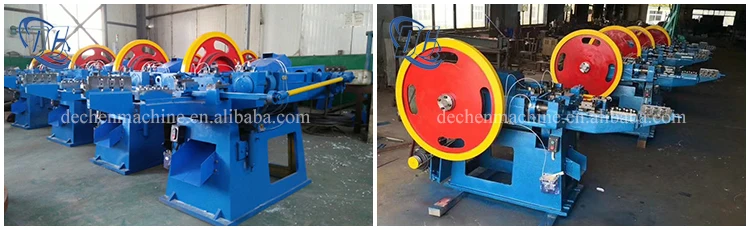

Our Nail Making Machine Advantage:
1.Our machine use vacuumed cast steel body ,so the machine base will not deformation under high and low temperature.Machine
damping performace is good,stable,machine life is longer.
2.Our machine crankshaft use 45# steel with heat treatment,and the connecting rod,stopcock cylinder barrel,shear blade use 55#
steel with heat treatment,have high strength,high wearproof,high elasticity feature.
3.Our machine use sprial bevel gear,have good transmission,low noise.
4.Machine have automatic bowser system,have good lubrication effect.
5.We use imported bearings.famous brand motor,low energy.
6.Our nail mould use high cast steel made:
FAQ
Customers notices
Below informations are required for quick quotation:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require ?
Q: Payment terms, MOQ, warranty, FOB...
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on
delivery.
Minimum order quantity: 1 set, FOB Tianjin.
Delivery time: about 20-40 days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,
Email etc. You can contact us any time, if urgently, please call us.
Below informations are required for quick quotation:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require ?
Q: Payment terms, MOQ, warranty, FOB...
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on
delivery.
Minimum order quantity: 1 set, FOB Tianjin.
Delivery time: about 20-40 days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,
Email etc. You can contact us any time, if urgently, please call us.
