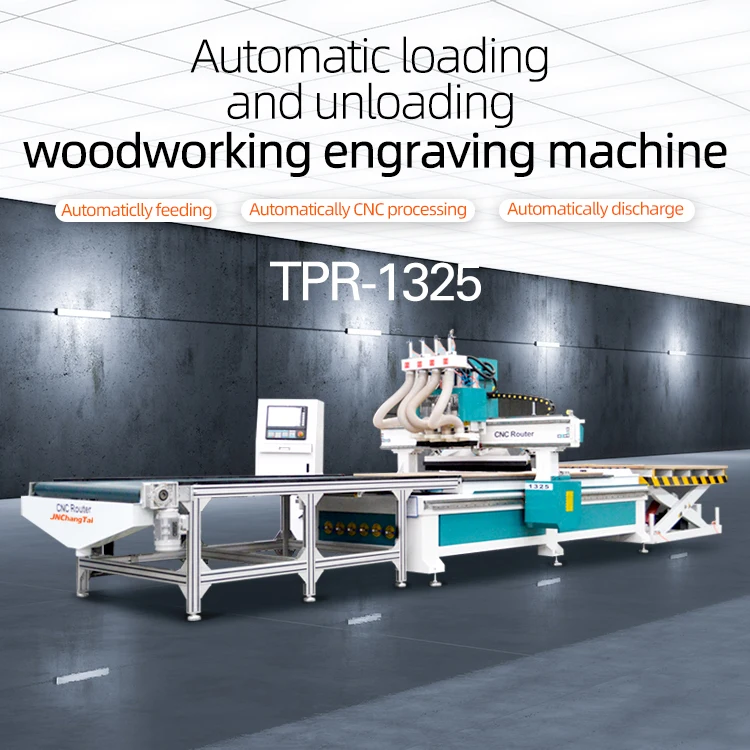

Production Line Cnc Router Wood Working Automatic Loading And Unloading Nesting Machine 9.0kw Atc Air Cooling Spindle Vacuum
Linda Parkway
| Production Line CNC Router Wood Working Automatic Loading and Unloading Nesting Machine for cnc furniture cabinet |
| Machine description and show |
| The four-process CNC blanking machine is an economical multi-function CNC equipment. The four-process CNC blanking machine has four spindles. When producing panel furniture, all four spindles can achieve punching processing, two of which are high-power The spindle is dedicated to grooving and blanking, and the other two spindles are dedicated to punching. In this way, all the hole sizes encountered in the production of panel furniture can be handled. At the same time, the four-process CNC cutting machine can also be used well in the production of cabinet doors. All four spindles can be used to make the door shape. When the door shape requires four or less knife shapes, all It can be processed by pneumatic tool change. |
 |
| Machine parameters and detailed information |
| Machine model | TPR-1325 |
| Working travel | 1300*2500*200mm |
| Table structure | Vacuum Working Table |
| Rail | Taiwan 25MM Hiwin linear square rail guide |
| Control system | Taiwan shanlong |
| Repositioning accuracy | ±0.01 |
| Working accuracy | ±0.02 |
| Max working speed | 24000mm/min |
| Drilling head | 4*6kw air cooling spindle |
| inverter | Fuling inverter |
| Drive system | Leadshine Servo motor |
| Transmission | X Y axis helical gear transmission, Z by Taiwan TBI ball screw |
| Oiling system | Automatic |
| Working voltage | 3 phase AC380V/50HZ |
 |
|
| Our advantages |
| The whole steel structure is welded, with special treatment, firm and non-deformation, moving in gantry type, fixed working table, and equipped with automatic vacuum suction table. It adopts imported linear square guide rail, double-row four-row CSK ball slider, large bearing capacity, stable operation, high precision and long life. Imported ball screw has high precision and precise cutting. The four-process engraving machine can automatically switch and change tools when targeting the cabinet door, which greatly saves labor, and the precision of mechanical tool change is higher without errors. |
 |

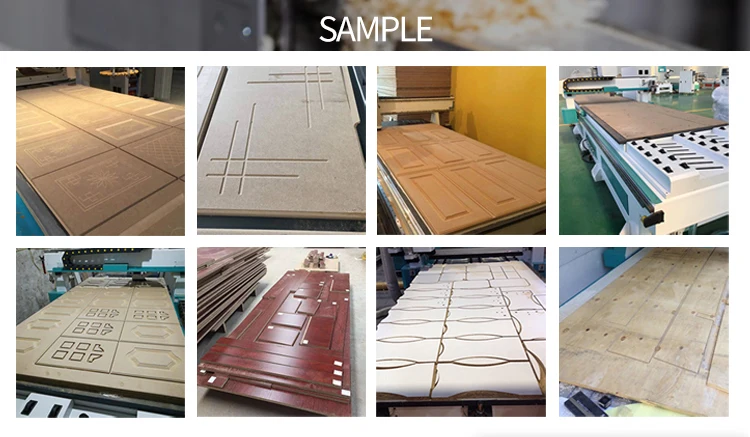

| Refrences to samples |
 |
| Our services |
|
Of the training
Of guarantee time |
| Packing and shipping |
|
A. Anti-collision package edge: All parts of themachine are covered with some soft materials, mainly the use of pearl wool.
|
 |
| Common problem |
|
Q:Are you a factory or a trading company? A:We are a professional production of CNC equipment factory, has a history of 13 years.
Q:What's your minimum order quantity?What are your terms of delivery? A: Our minimum order quantity is 1 machine. We usually need 7-15 days of production time and 1 day of packing time.The exact time will depend on your order quantity and customization level.
Q:What are your terms of payment? A: We usually accept d/p at sight or l/c, or, if the amount is small, we can adopt some other quick methods of payment, such as western union, mastercard, cash, etc.
Q: when is your warranty?What can you offer us after we buy your machines? A: We give our customers a three-year warranty.In case of accident in customer's factory, we will provide long-term technical support and spare parts supply.
Q: this is my first time to buy this machine. Is it easy to operate? A: We can provide operation manual or video instruction.If you're having trouble learning, we can also help you online through the "Team viewer," by phone or Skype.
Q: how to choose the right machine? A: You can tell us the material, size and function requirements of the machine.According to our experience, we can recommend the most suitable machine.
Q: how can I trust your company and your products? A: The whole production process will be subject to regular inspection and strict quality control.This machine has to be inspected before it leaves the factory to make sure it works properly.Test video and pictures will be provided before shipment.
Q: what should I do if the machine goes wrong after I order it? A:If there is any problem with the machine, it will be sent to you free of charge within the warranty period.Free after-sales service life of the machine, if you have any questions, please feel free to contact us.We will provide 24-hour service through telephone and skype.
Q:What's your delivery date? A: For standard machines, about 15 working days;For custom machines, about 20 working days. |
| About our company |
|
JNChangtai Cnc Technology Co., Ltd is a company located in jinan, focusing on the research, development, production and sales of laser numerical control equipment, the main products are laser cutting machine, laser engraving machine, laser marking machine, laser cleaning machine, etc. |
|
|
