Different from an independent evaporative cooling system or a conventional air conditioning system, VEAC™ employs an innovativesystem integrating an evaporative cooling process and combining it with a refrigeration cycle to achieve optimal coolingperformance at approximately 25℃ .
Multi First World Patented Evaporative Water Cooling Air-conditioning Portable Peltier Air Conditioner With Compressor Use
(0)
Perkiraan Waktu Pengiriman:
3 hari
Dijual oleh:
Jones Home
Jones Home
Harga:
Rp568
/Pc
Pengembalian dana:
Produk Paling Laris
The world’s 1st Evaporative Air Conditioner
VEAC™ stands for Vankool Evaporative Air Conditioner,which is the world’s 1st commercially used Eco-friendly air conditioning system with proprietary technology.
Different from an independent evaporative cooling system or a conventional air conditioning system, VEAC™ employs an innovativesystem integrating an evaporative cooling process and combining it with a refrigeration cycle to achieve optimal coolingperformance at approximately 25℃ .
Different from an independent evaporative cooling system or a conventional air conditioning system, VEAC™ employs an innovativesystem integrating an evaporative cooling process and combining it with a refrigeration cycle to achieve optimal coolingperformance at approximately 25℃ .
Products Description
Benefits from VEAC
1. Better Cooling
VEAC gets a better cooling performance than normal evaporative cooler. The temperature of the air outlet can reach to ±25℃ when the ambient temperature is 35℃.It is especially suitable for the hot&humid area
2. Large Airflow
VEAC has much larger airflow when compared with conventional industrial air conditioner, industrial air conditioner has small airflow and could be used for spot cooling while VEAC could be used to cool a bigger area
3. Energy Saving
It will reduce energy consumption up to 60% compared with conventional air conditioner
4. No Installation
VEAC could be moved from place to place with heavy duty wheels

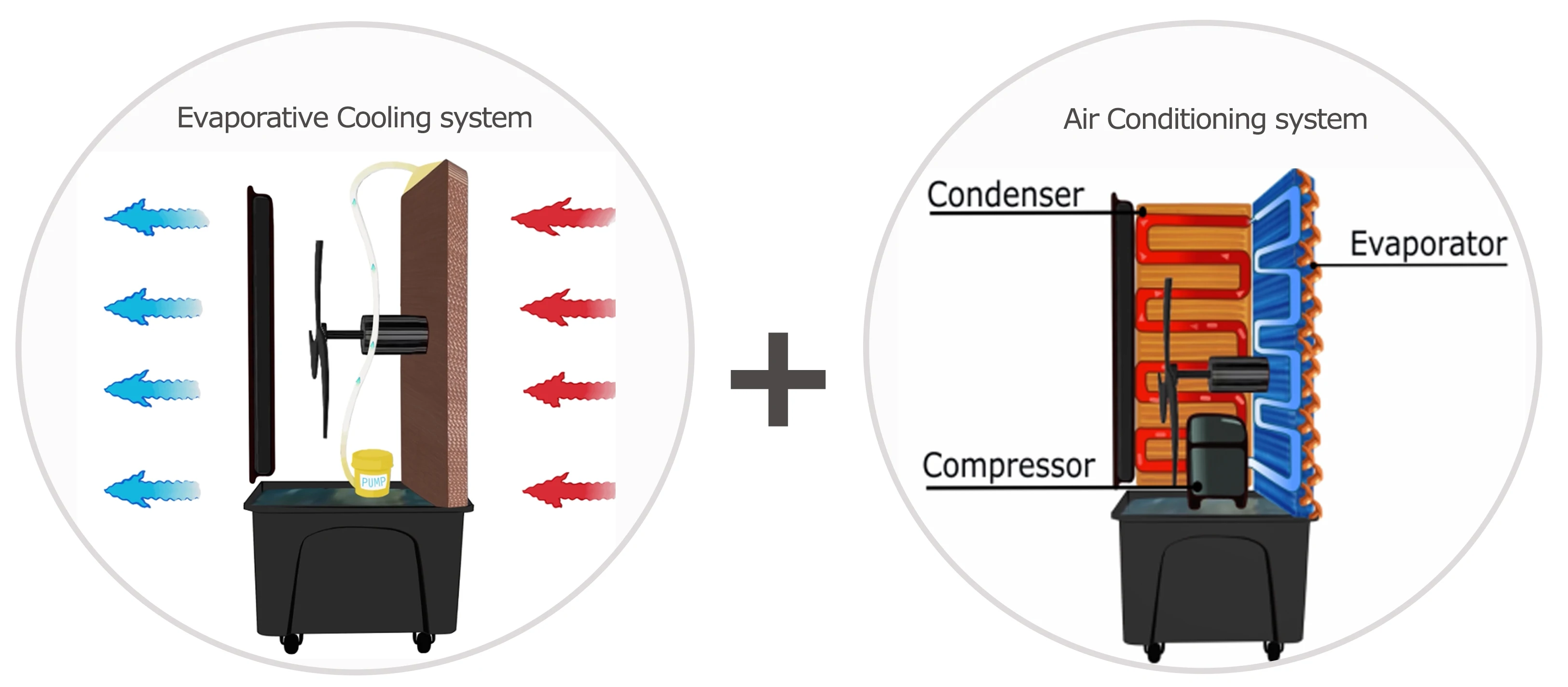

Working Process For VEAC™
Two cooling systems are included in VEAC ™. The first one is an evaporative cooling system which is using water evaporation to cool the air. The second system is an air conditioning system which is using compressor technology. The hot air will go through the cooling pads and the evaporator, subsequently, the cool air will be pulled out by a fan.

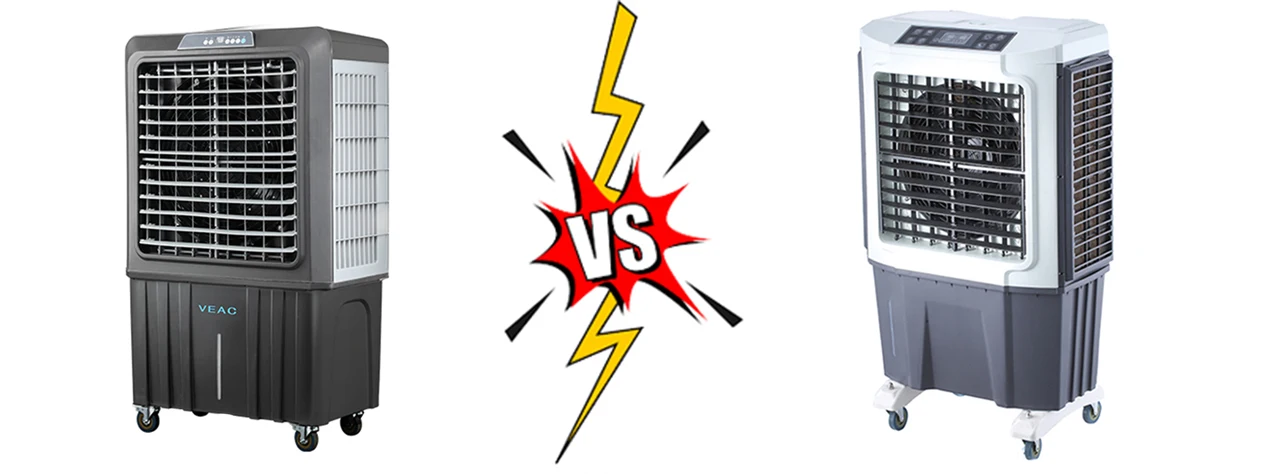

VEAC™ Vs Evaporative Air Cooler | ||||
Item | VEAC™ | Normal Evaporative Cooler | ||
Cooling System | Compressor&Evaporative Cooling | Evaporative Cooling | ||
Cooling Performance | Better (About 3 degree lower than air cooler at air outlet) | Normal(Not good at humid places) | ||
Outlet Humidity | Normal | High | ||

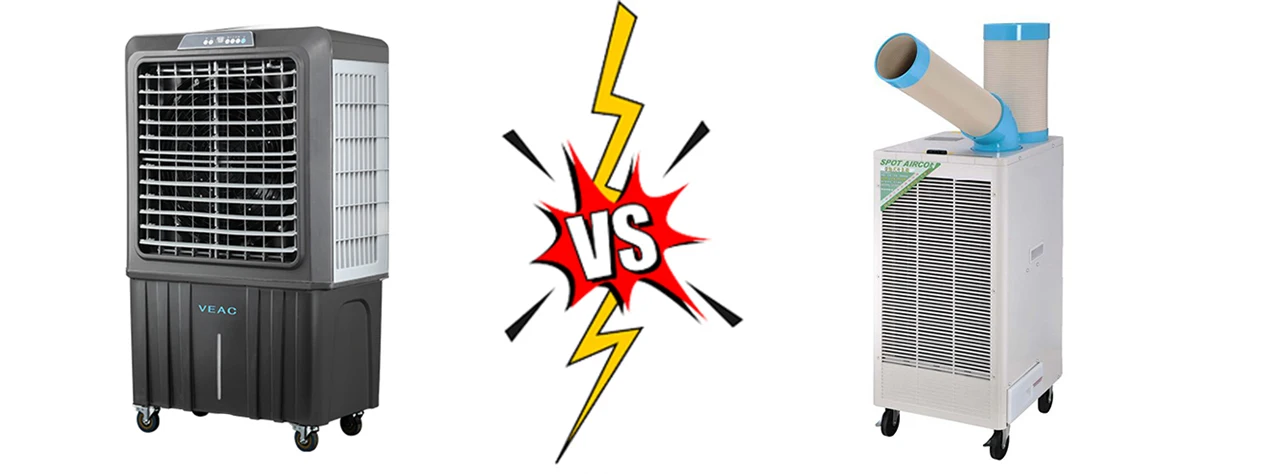

VEAC™ Vs Air Conditioner | ||||
Item | VEAC™ | Portable Air Conditioner | ||
Cooling System | Compressor&Evaporative Cooling | Compressor Cooling | ||
Power Consumption | About 60% lower than AC | High | ||
Usage | Cool large spaces up to 40 ㎡ | For spot cooling only | ||

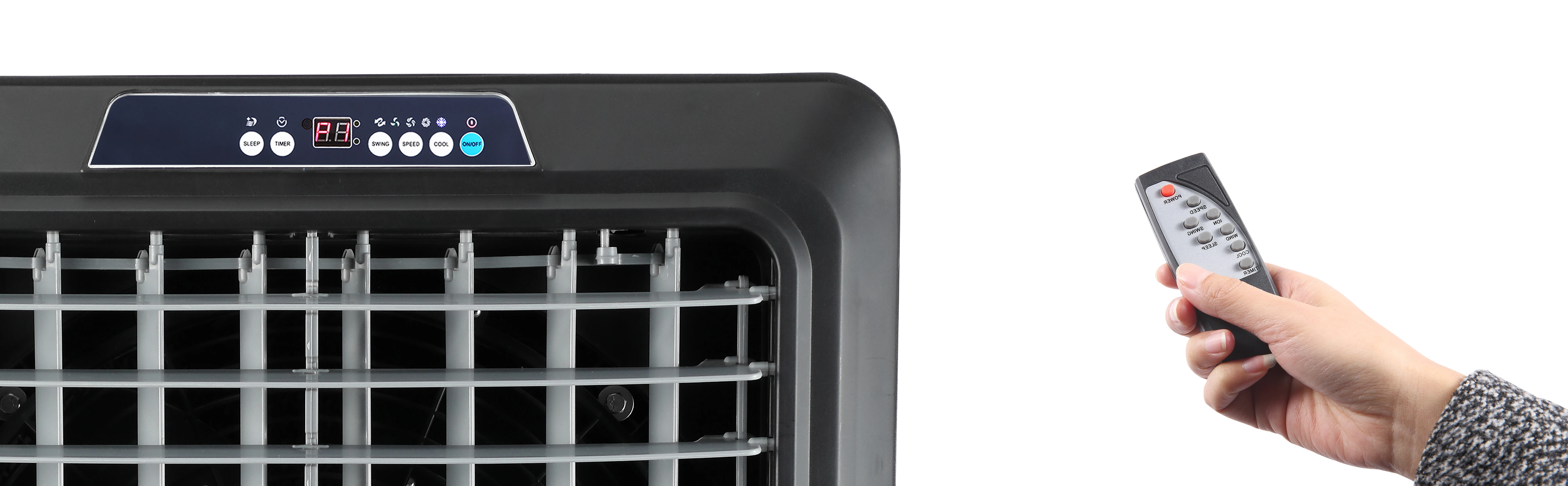

LED Display
▲ Timer adjust from 24 hours
▲Swinging option swings left to right. By the way, you can move the louvers from up to down by hands.
▲Cool Function.
▲Fan with 3 speeds.
▲Sleep mode, it basically runs the fan really quiet and it doesn't wake you up.
▲Available for remote control .
▲Cool Function.
▲Fan with 3 speeds.
▲Sleep mode, it basically runs the fan really quiet and it doesn't wake you up.
▲Available for remote control .
Item | Data |
Model No. | VEAC09 |
Airflow (m³) | 9000 |
Cooling Capacity(BTU/H) | 7000 |
Refrigerant | R410A |
Input Power(W) | 1180 |
Voltage (V) | 220 |
Rated Current (A) | 5.3 |
Noise (dB) | ≤65 |
Fan Type | Axial 4 Blades |
Fan Speeds | 3 |
Water Consumption(L/H) | 6-9 |
Water Tank(L) | 100 |
Dimension(MM) | 790*520*1350 |
Applicable Area(㎡) | 40-50 |
Loading Qty(1×40HQ) | 110 |
Outside packing
Inside packing
Customer Photo

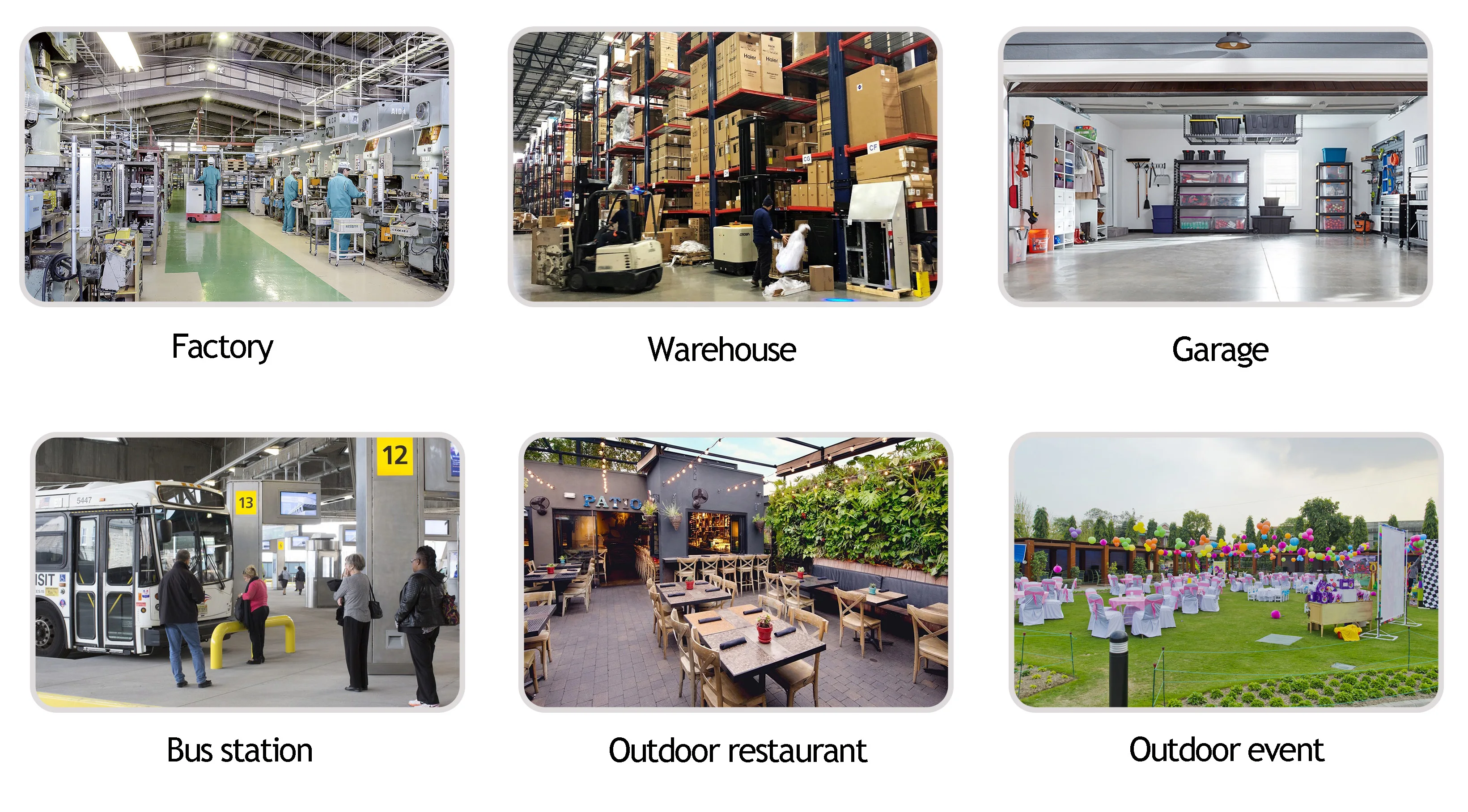

PRODUCT APPLICATION

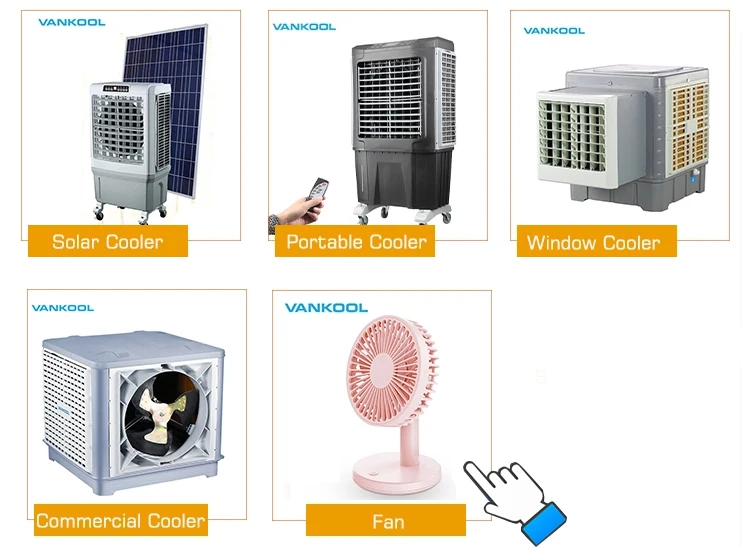

PRODUCT CATEGORIES
Why Choose Us
About Vankool
Vankool technology is a professional manufacturer engaged in the research, development, sales and service of HVAC products like evaporative air coolers,portable air conditioners and electric fans.we have obtained GS,CE,CB,IEC and SABER certificates. our products are exported to USA,Europe,Middle East,Brazil and Southeast Asia. We also welcome OEM and ODM orders.
Vankool Reviews
Vankool is keeping 5 Starts for Supplier Service, On-time Shipment and Product Quality
Certifications
Quality Control:
*IQC (Incoming Quality Control): All In-coming materials and components
*IPQC (In Process Quality Control): Silk-Screen; Sub-assembling; Final assembly
*LQC (On-Line Quality Control Station): 100% Functionality and Safety Testing; 100% Visual Check
*QC (Final Quality Control): Pre-Shipment Inspections
*OQC (Out-going Quality Control): Random Inspections; Life Testing
*IPQC (In Process Quality Control): Silk-Screen; Sub-assembling; Final assembly
*LQC (On-Line Quality Control Station): 100% Functionality and Safety Testing; 100% Visual Check
*QC (Final Quality Control): Pre-Shipment Inspections
*OQC (Out-going Quality Control): Random Inspections; Life Testing
Exhibition
Canton Fair
MIVAR Exhibition
HK Fair
Sundan Exhibition
ISK-SODEX Istanbul
Yangon Myanmar Exhibition
FAQ
Q: Can i have a sample for testing ?
A: Yes,we can provide sample while you’re required to pay the sample and shipping charge
Q: How long is your warranty?
A: We’ll provide one year warranty for the whole unit
Q : Do your provide OEM/ODM service ?
A : Yes , we can provide OEM/ODM service.
Q : What are your payment term for new customer ?
A : Normally , 30% deposit by T/T , 70% balance before container loading, or by L/C at sight
Q : How long is your delivery ?
A : For VEAC,generally we’ll need around 30 days to finish the production
A: Yes,we can provide sample while you’re required to pay the sample and shipping charge
Q: How long is your warranty?
A: We’ll provide one year warranty for the whole unit
Q : Do your provide OEM/ODM service ?
A : Yes , we can provide OEM/ODM service.
Q : What are your payment term for new customer ?
A : Normally , 30% deposit by T/T , 70% balance before container loading, or by L/C at sight
Q : How long is your delivery ?
A : For VEAC,generally we’ll need around 30 days to finish the production
Belum ada ulasan untuk produk ini.
