MODEL |
TY88204 |
MODEL NUMBERING DESIGNATION |
8: FASTENING TOOLS 8: RIVETING TOOLS 2: PISTOL GRIP 04:SPEED(400 RPM) |

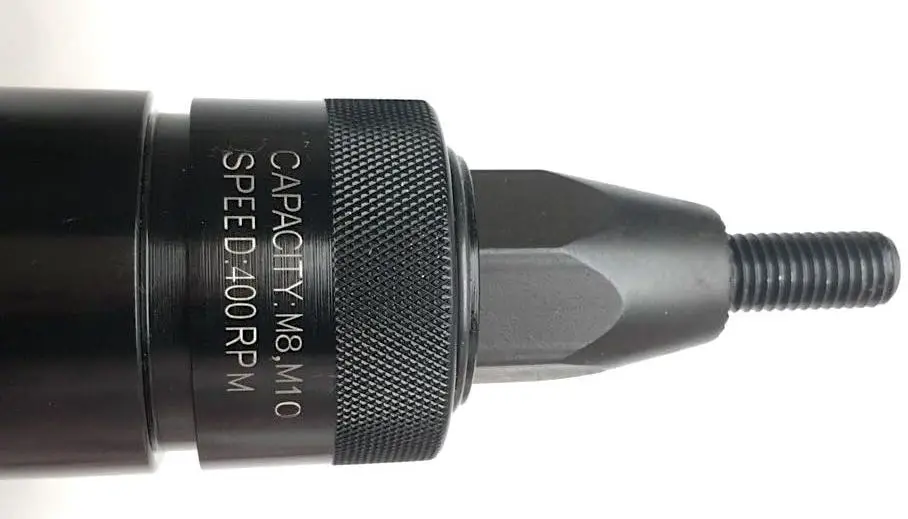

RIVET NUT CAPACITY |
M8, M10 (5/16”, 3/8") |
SPEED |
400 RPM |
AIR CONSUMPTION |
5 CFM @ 65 PSI |
WEIGHT |
1.1kg (2.4 lbs) |

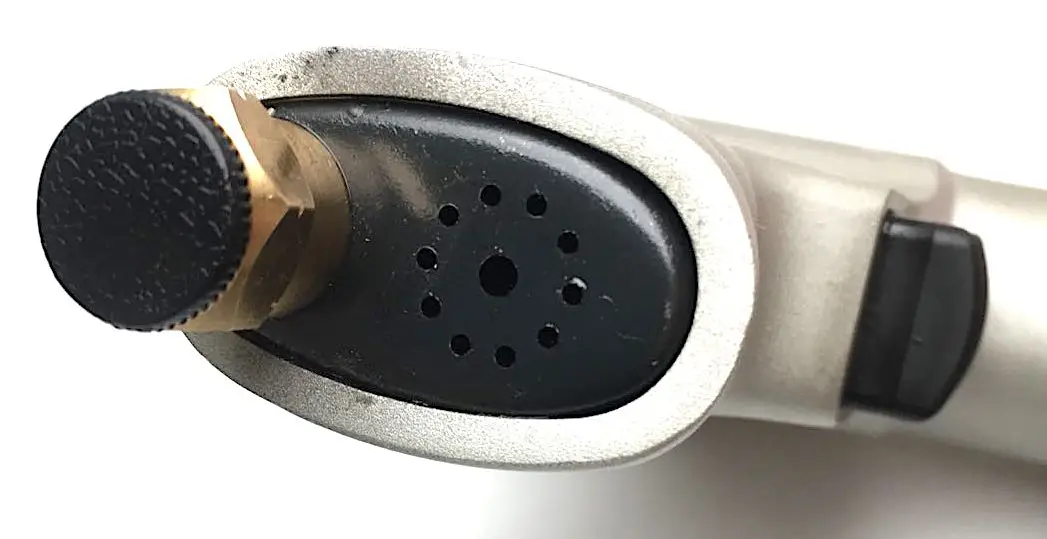

AIR INLET |
1/4” |
REC AIR HOSE |
3/8” |
LENGTH |
6 in. |
SKU |
353250 |

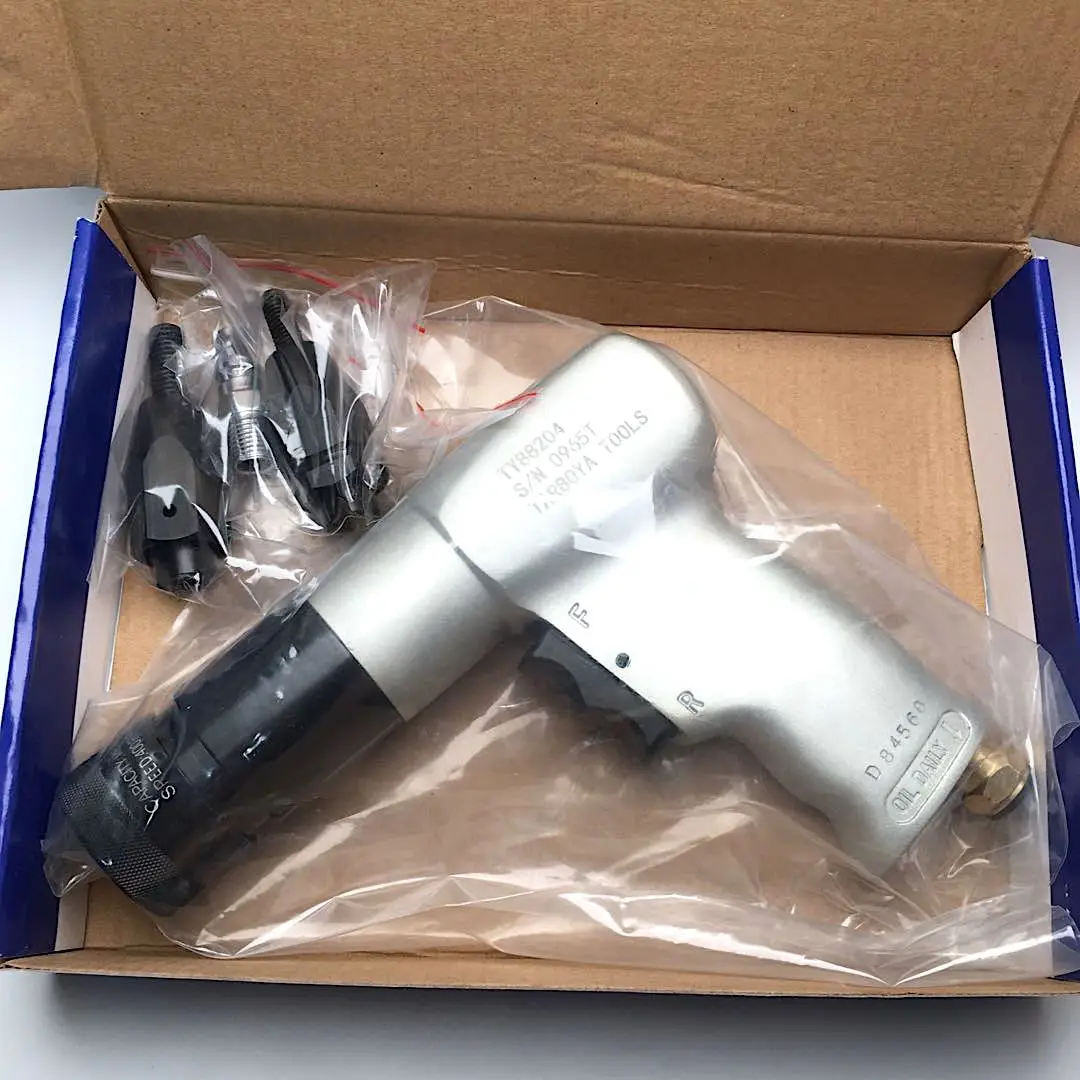

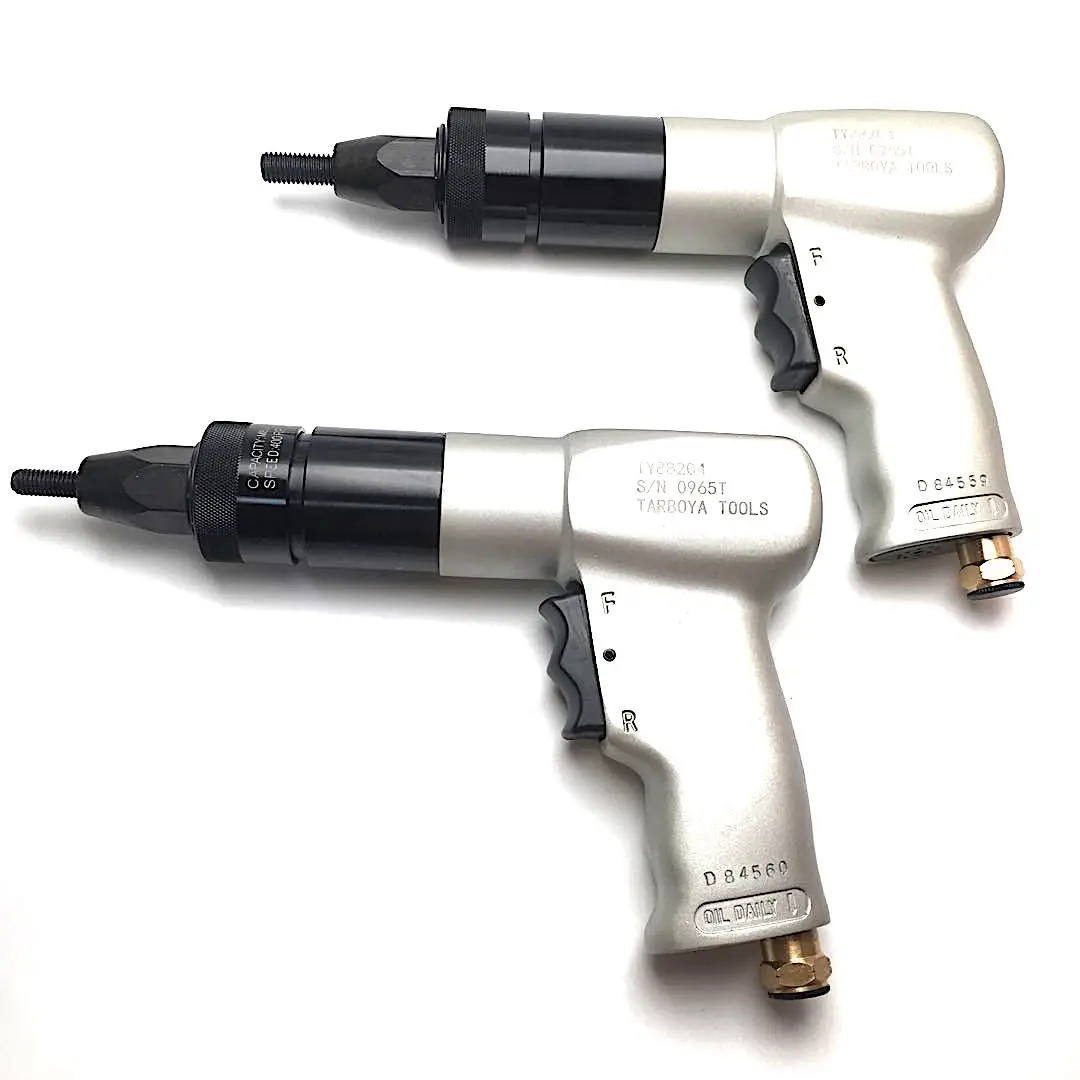

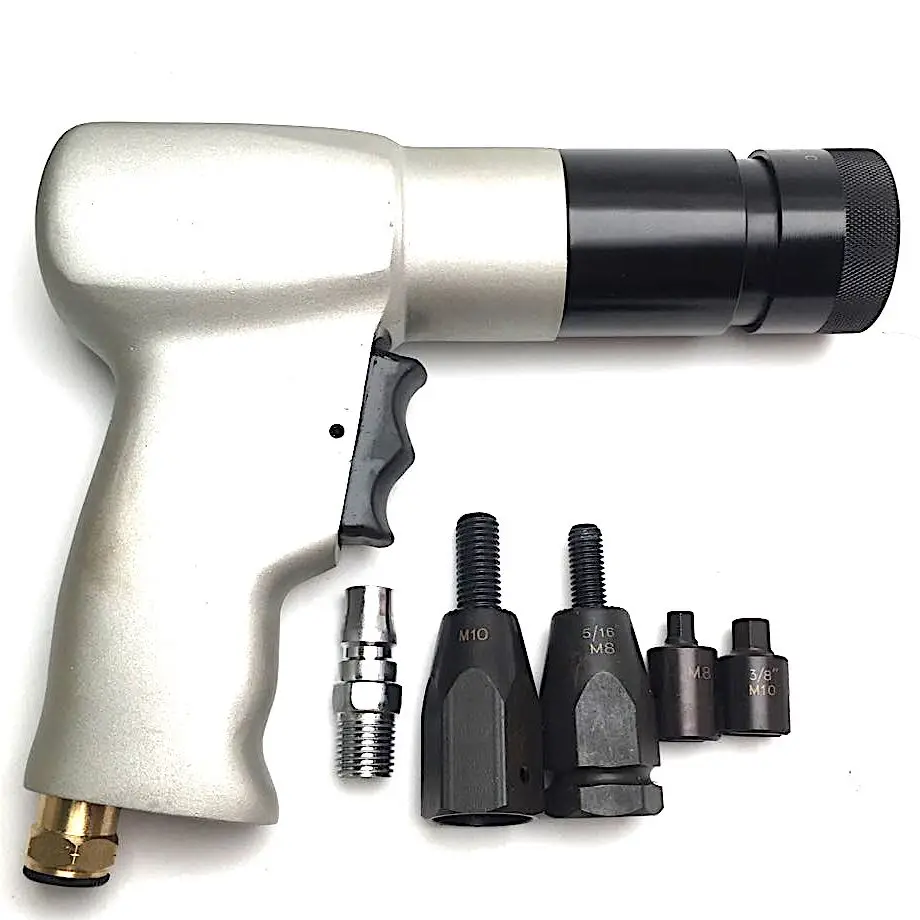

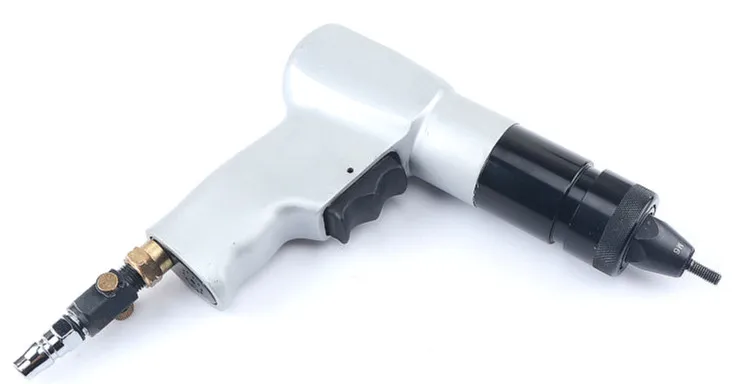

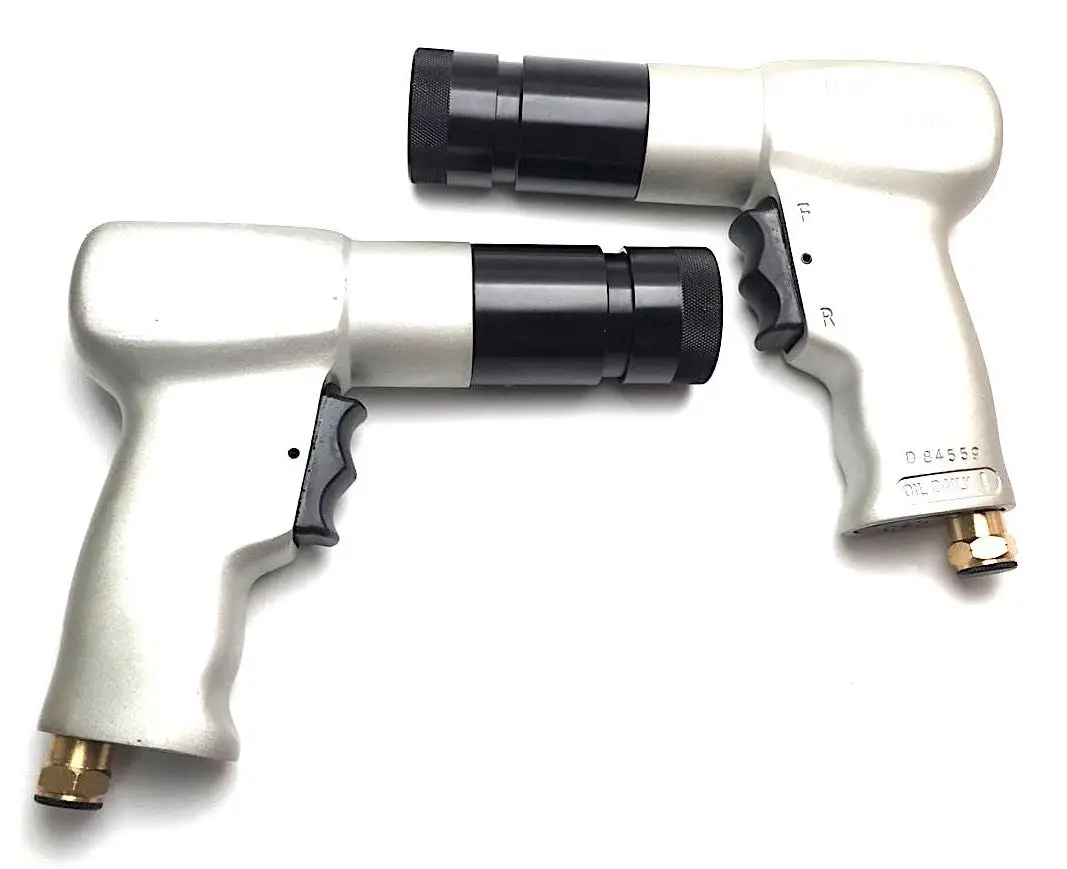

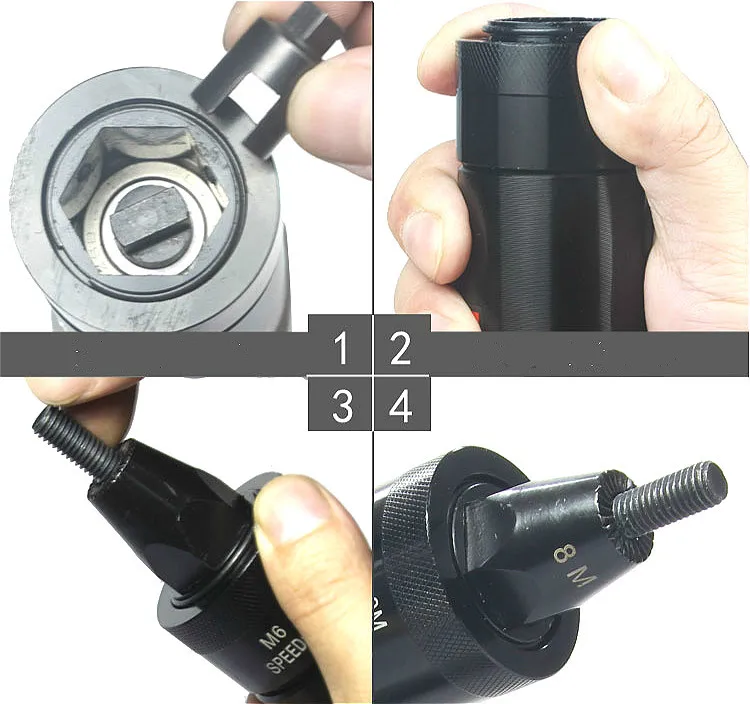

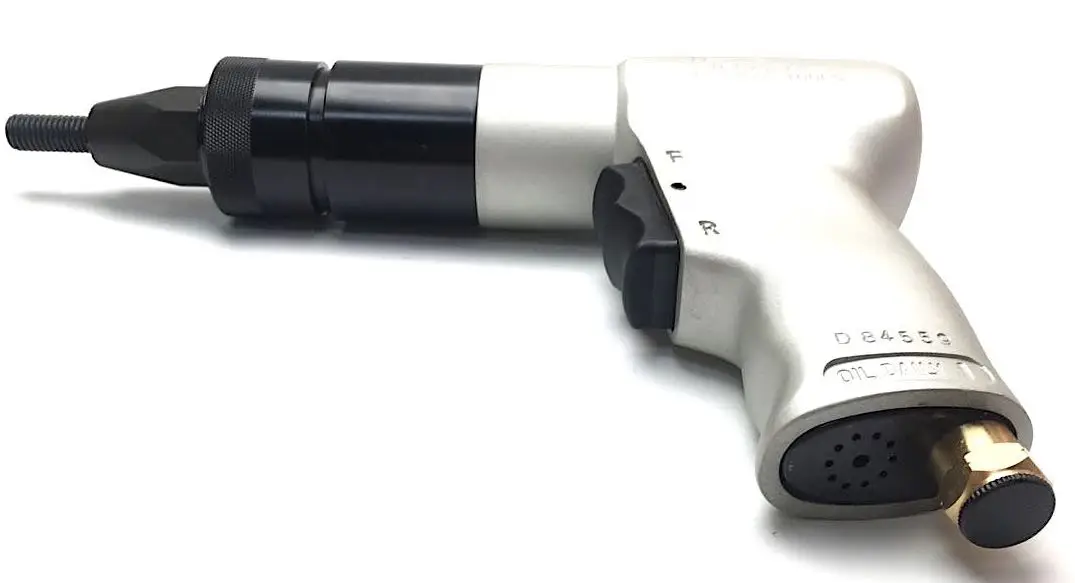

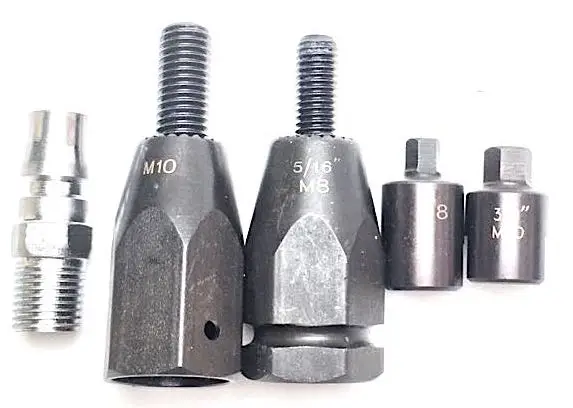

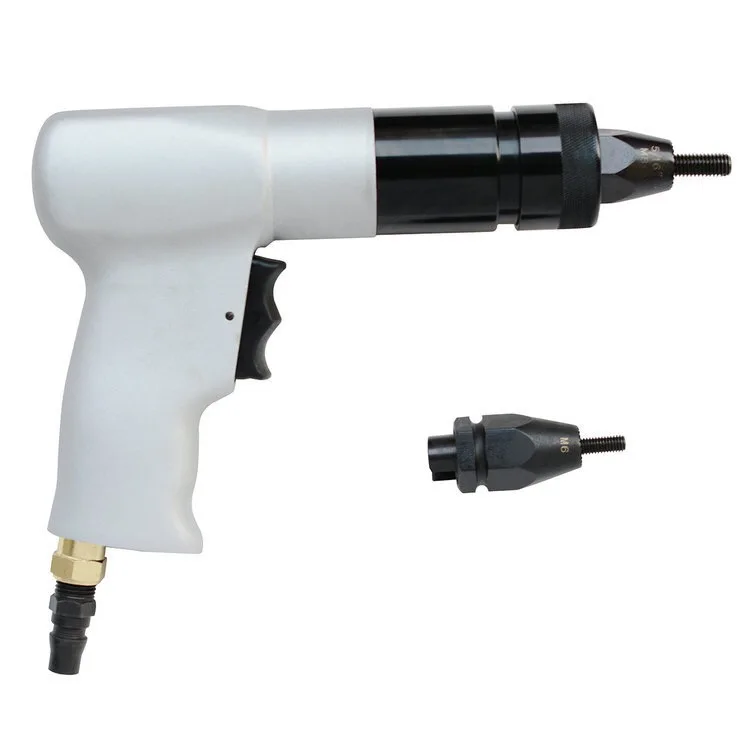

TY88204 is the industrial rivnut setting gun to solve tough fastening problems in automotive, metal fabrication, appliance, food equipment, machinery, electronic, transportation, aerospace and defense industries whcih need the quick, efficient RIVNUT fastener. 400 RPM, W/Quick-Change 5/16" & 3/8" Mandrels.
The benefit of using spin-spin tools is that they are less expensive than spin-pull and can often be more lightweight, but its capabilities aren’t as complete as the spin-pull tool.
Spin/Spin Tools
These tools are typically pneumatic and have three stages.

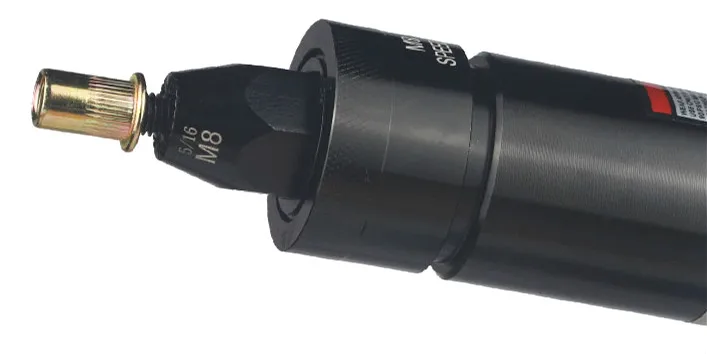

- The first spin assembles the nut onto the threaded mandrel. The nut is then placed into the prepared hole.
- The second stage spin collapses the nut on the backside of the hole creating a bulge. This bulge squeezes the material, and secures it into place.
- The third stage reverses the rotation and backs the mandrel out of the nut.
These tools are the lowest cost power tools, but can be a bit fussy about hole size. Too large of a hole can allow the rivet nut to spin and not collapse. The pressure that the nut applies once the bulge is formed is controlled by the amount of torque that the gun creates, so consistency can be an issue if air pressure and/or friction in the threads varies.
Tarboya Spin/Spin Rivet Nut Tools:

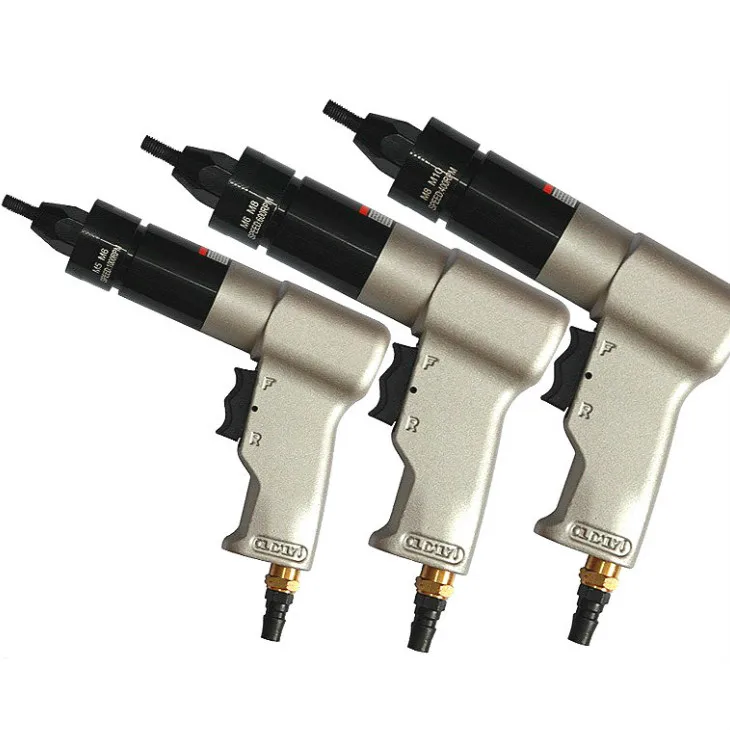

Pistol Grip: TY88215 (M5-M6 Rivet Nut), TY88206 (M6,M8 Rivet Nut), TY88204 (M8,M10 Rivet Nut)
TY88226 (M10,M12 Rivet Nut), TY88240 (M8 Rivet Nut)
Angle Grip: TY88311 (M5,M6 Rivet Nut), TY88340 (M8, M10 Rivet Nut), TY88311B (M5,M6 Rivet Nut )
Inline Grip: TY88160 (M8,M10 Rivet Nut)
Spin/Pull Tools
These tools also have two stages and are typically pneumatic over hydraulic.
- The first stage spins the nut onto the mandrel
- The second stage does not rotate, but instead pulls the mandrel into the tool collapsing the rivet by force. This tool comes in two versions:
*Pull to pressure – the amount of setting force is set by hydraulic pressure, which can be adjusted on the tool. This style works best if the material thickness is not consistent.
*Pull to stroke – the amount of setting force is set by the distance of the stroke, which can also be adjusted on the tool. This type of tool works well for materials that are very consistent in thickness.
Some high-end tools incorporate both pull to pressure and pull to force.
Tarboya Spin/Pull Tool: TY88418 (M3-M12 Rivet Nut)
Tarboya Fastening Tools Brochure could be downloaded from www.tarboya.com
At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we a-r-e d-i-f-f-e-r-e-n-t !
Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.
Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.
You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.
We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.
Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand. Tarboya warrants TY88204 Pneumatic Rivet Nut Setting Gun will not have any material or manufacturing defects for the period of 12 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 12 months from the date of delivery of the goods.
Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.
Tarboya’s warranty shall be deemed void in the event of:
|
